2010 Kawasaki Vulcan® 1700 Classic LT Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

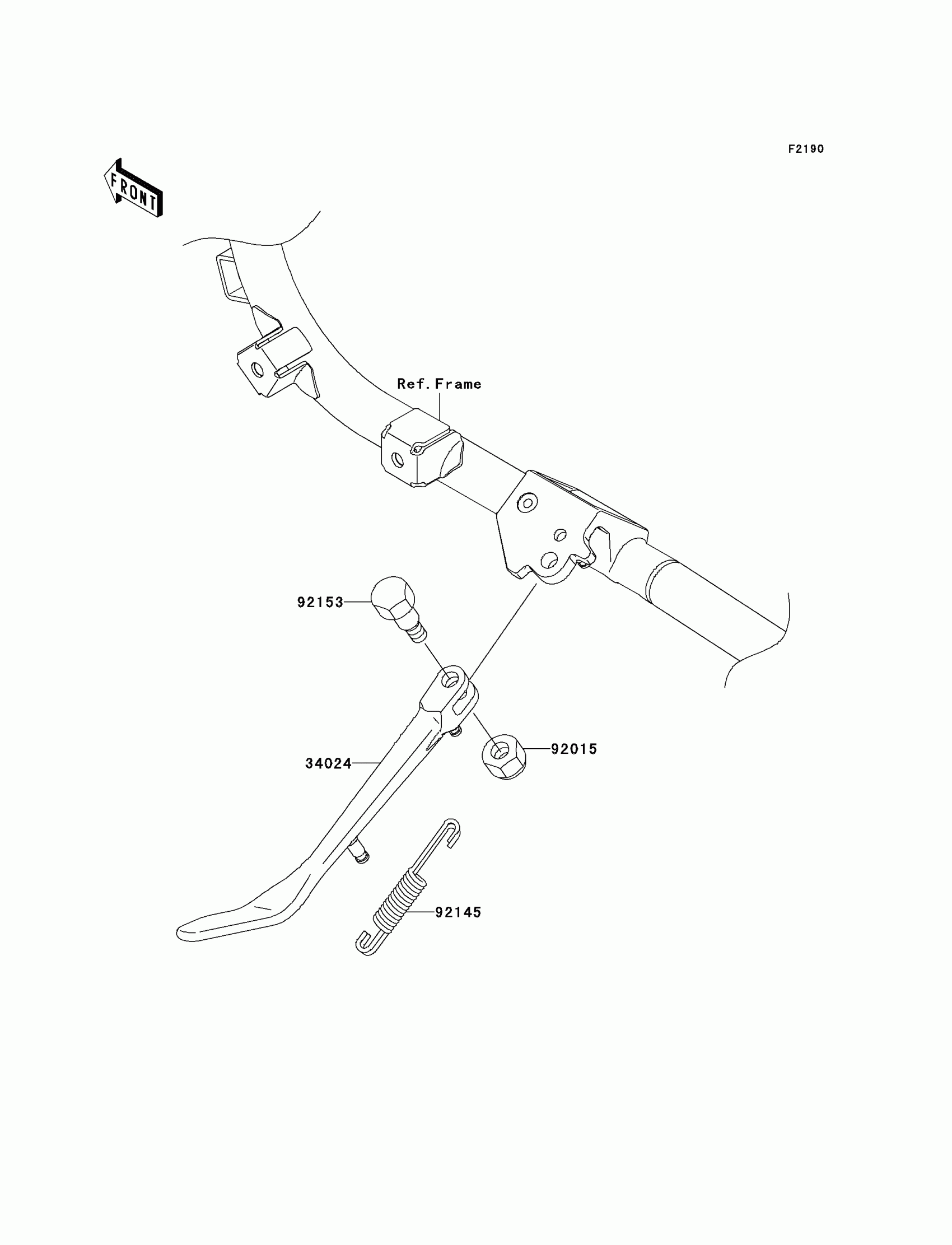

2010 Kawasaki Vulcan® 1700 Classic LT Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE

34024-0014

1

$134.27

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92145

SPRING,SIDE STAND

92145-0083

1
Out of stock

92153

BOLT,SIDE STAND,10MM

92153-1416

1
Out of stock
← Seat Owner's Tools →

More Body & Frame diagrams
