2010 Kawasaki Vulcan® 1700 Classic LT Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

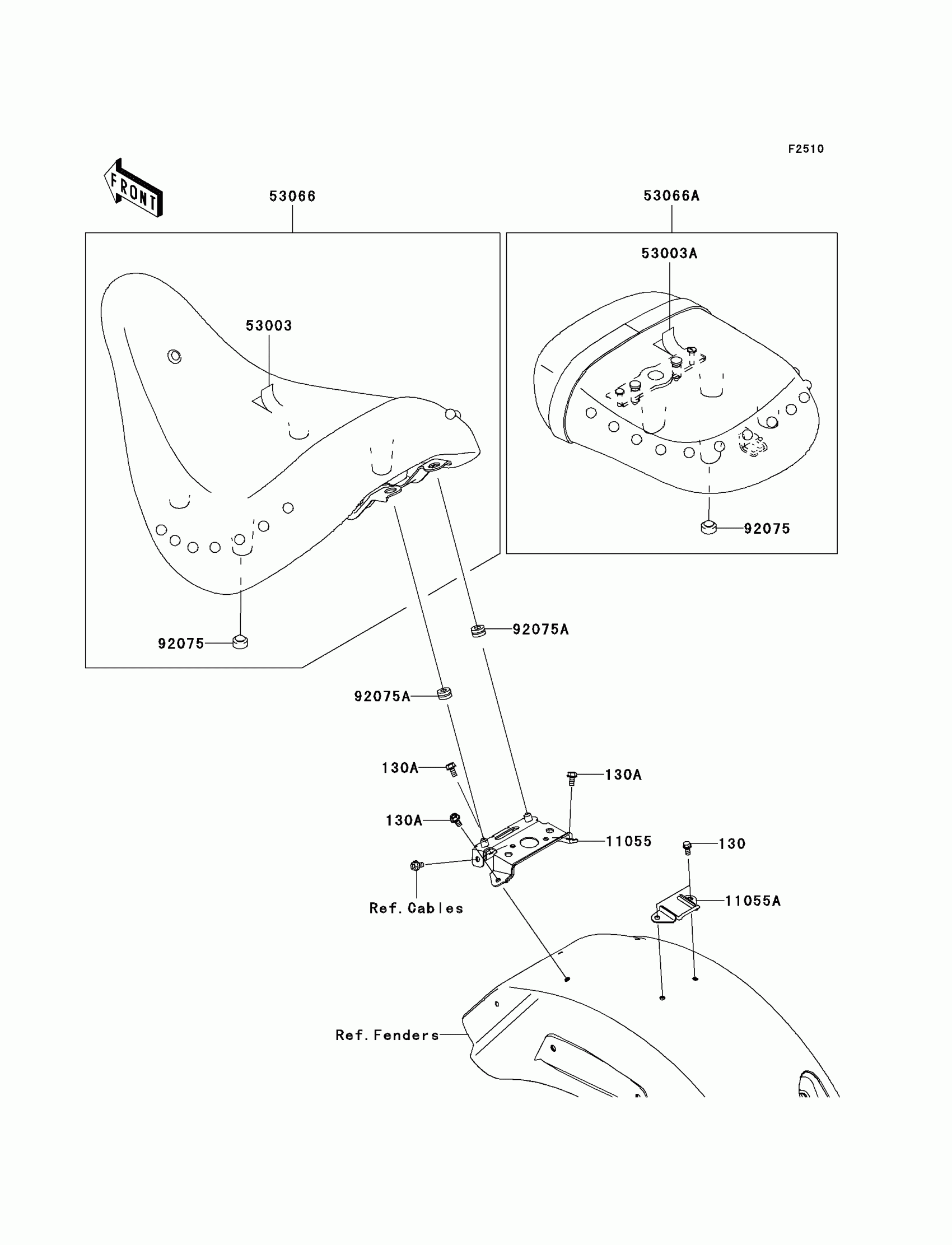

2010 Kawasaki Vulcan® 1700 Classic LT Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130A

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

11055

BRACKET,STRIKER

11055-1190

1

$41.65

In stock

11055A

BRACKET,REAR SEAT

11055-1211

1

$15.47

In stock

53003

LEATHER,FRONT SEAT,BLACK

53003-0160-MA

1

$343.43

In stock

53003A

LEATHER,REAR SEAT,BLACK

53003-0167-MA

1

$284.85

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0217-MA

1

$693.77

In stock

53066A

1

$473.90

In stock

92075

DAMPER,10X20X8

92075-1927

1

$3.49

In stock

92075A

1

$3.72

In stock
