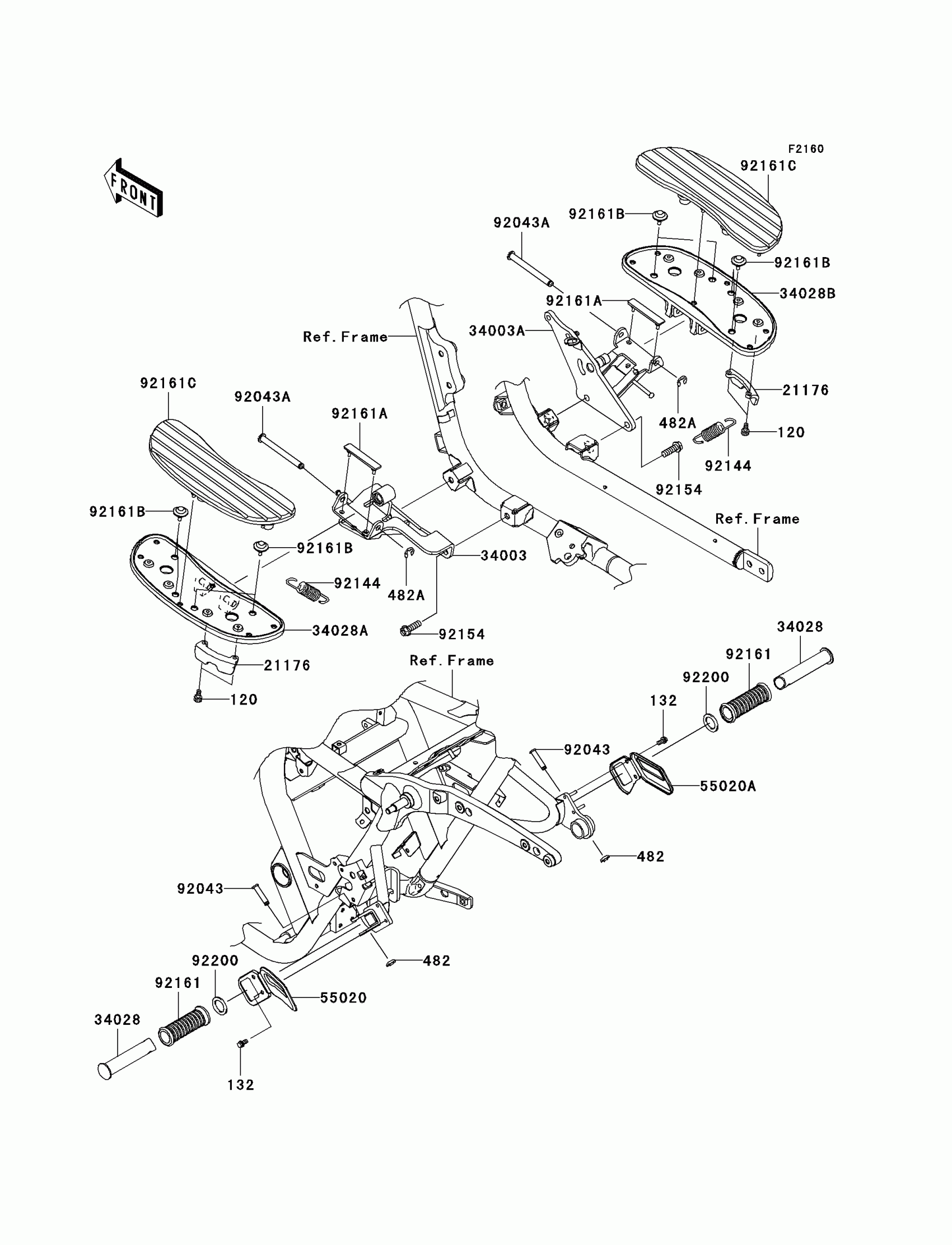

Kawasaki Vulcan® 1700 Classic LT Footrests Diagram

Description

Price

120

BOLT-SOCKET,6X16

120CB0616

$1.00

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

482

CIRCLIP-TYPE-E

482EA7000

$2.99

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

21176

SENSOR,BANK

21176-0123

$20.69

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0085-18R

$120.44

34003A

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0086-18R

$128.50

34028

STEP,RR

34028-0017

$21.92

34028A

STEP,FR,LH

34028-0124

$112.75

34028B

STEP,FR,RH

34028-0125

Unavailable

55020

GUARD,STEP,LH,F.S.BLACK

55020-0485-18R

$15.34

55020A

GUARD,STEP,RH,F.S.BLACK

55020-0486-18R

$15.34

92043

PIN,8X36.5

92043-1339

$7.71

92043A

PIN,10X98.5

92043-1707

$10.10

92144

SPRING

92144-1266

$6.70

92154

BOLT,FLANGED,10X30

92154-0284

$2.69

92161

DAMPER,STEP

92161-0232

$15.61

92161A

DAMPER,STEP HOLDER

92161-0746

$5.80

92161B

DAMPER,STEP

92161-0766

$4.66

92161C

DAMPER,FOOT BOARD

92161-0770

$70.14

92200

WASHER,22.5X33X2.3

92200-1482

$2.25
