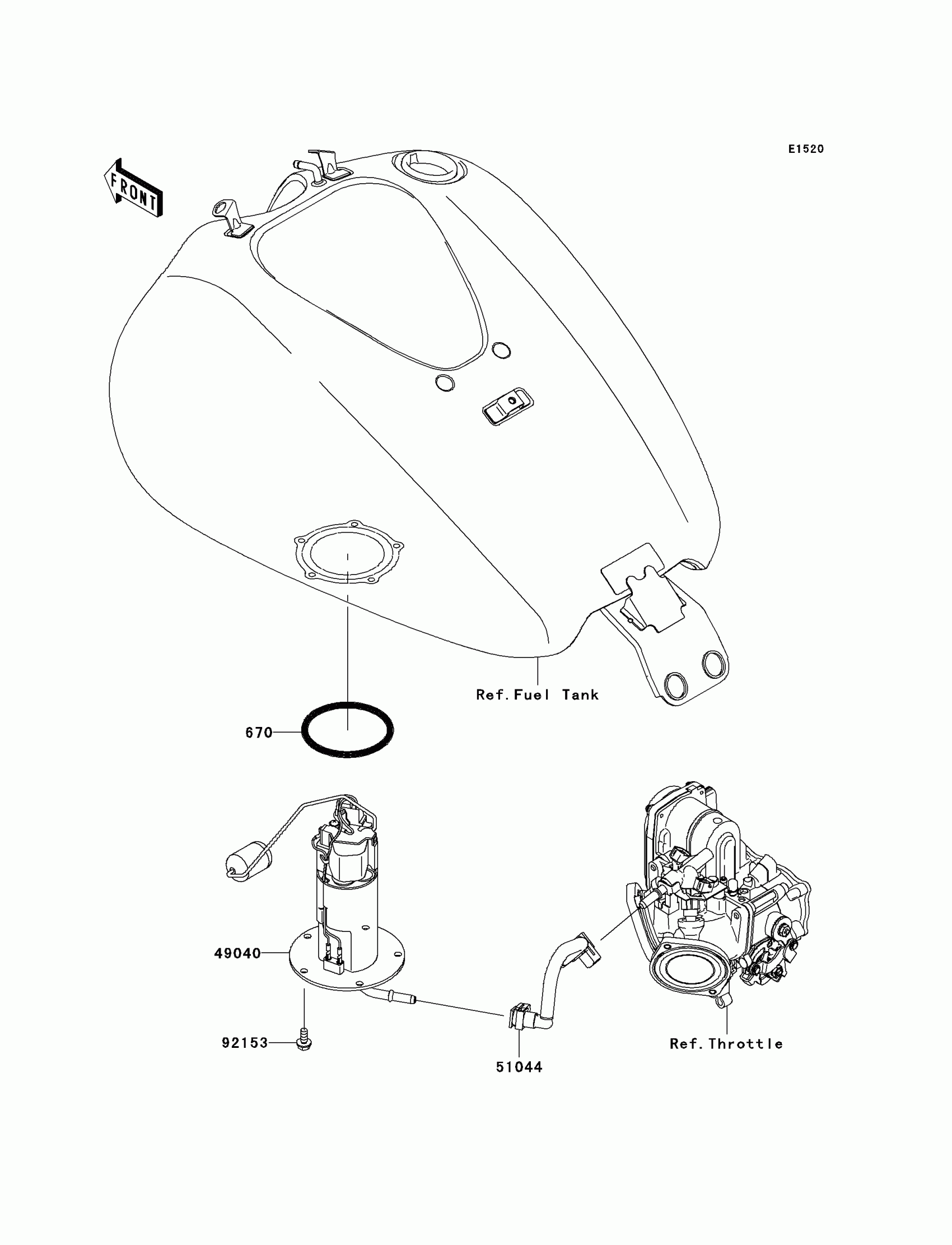

Find the part on the Fuel Pump diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 1700 Classic LT Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING

670E5075

1
Out of stock

49040

PUMP-FUEL

49040-0035

1
Out of stock

51044

TUBE-ASSY,FUEL

51044-0055

1
Out of stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock
