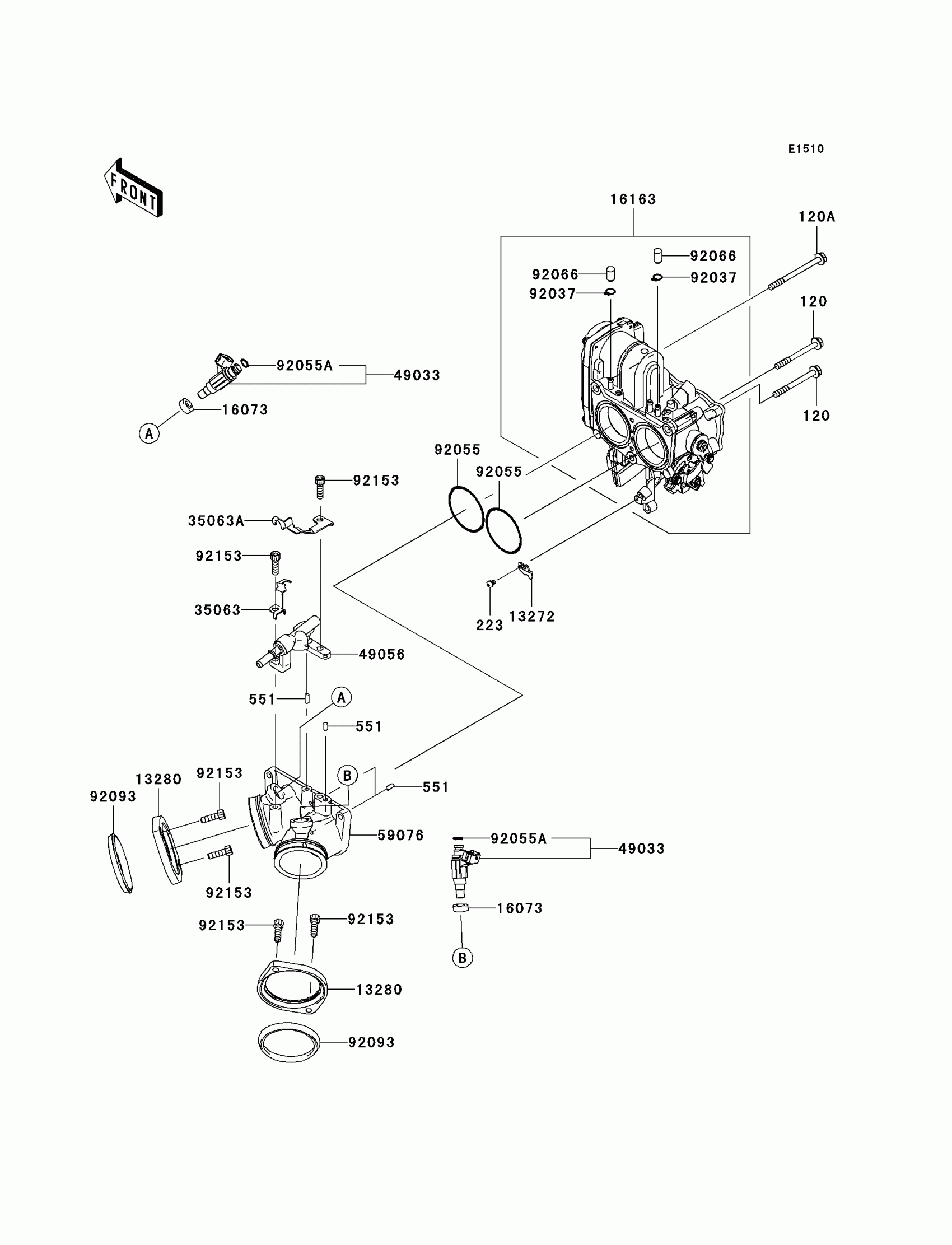

Kawasaki Vulcan® 1700 Classic LT Throttle Diagram

Description

Price

120

BOLT-SOCKET,6X60

120CA0660

$2.59

120A

BOLT-SOCKET,6X75

120CA0675

$2.28

223

SCREW-PAN-WS-CROS,4X6

223AA0406

$2.93

551

PIN-DOWEL,4X8

551A0408

$0.68

13272

PLATE,CABLE STOPPER

13272-0620

$4.02

13280

HOLDER,INTAKE MANIFOLD

13280-0007

$32.93

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY,EACW42

16163-0136

$1,019.90

35063

STAY

35063-0075

$7.61

35063A

STAY

35063-0076

$7.61

49033

NOZZLE-INJECTION

49033-0003

$117.60

49056

PIPE-INJECTION

49056-0020

$180.74

59076

MANIFOLD-INTAKE

59076-0004

$247.01

92037

CLAMP,BREATHER TUBE

92037-174

$1.42

92055

RING-O,49.7X2.4

92055-0183

$1.73

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92066

PLUG,FITTING

92066-1549

$5.98

92093

SEAL

92093-0006

$20.93

92153

BOLT,SOCKET,6X20

92153-1031

$1.81
