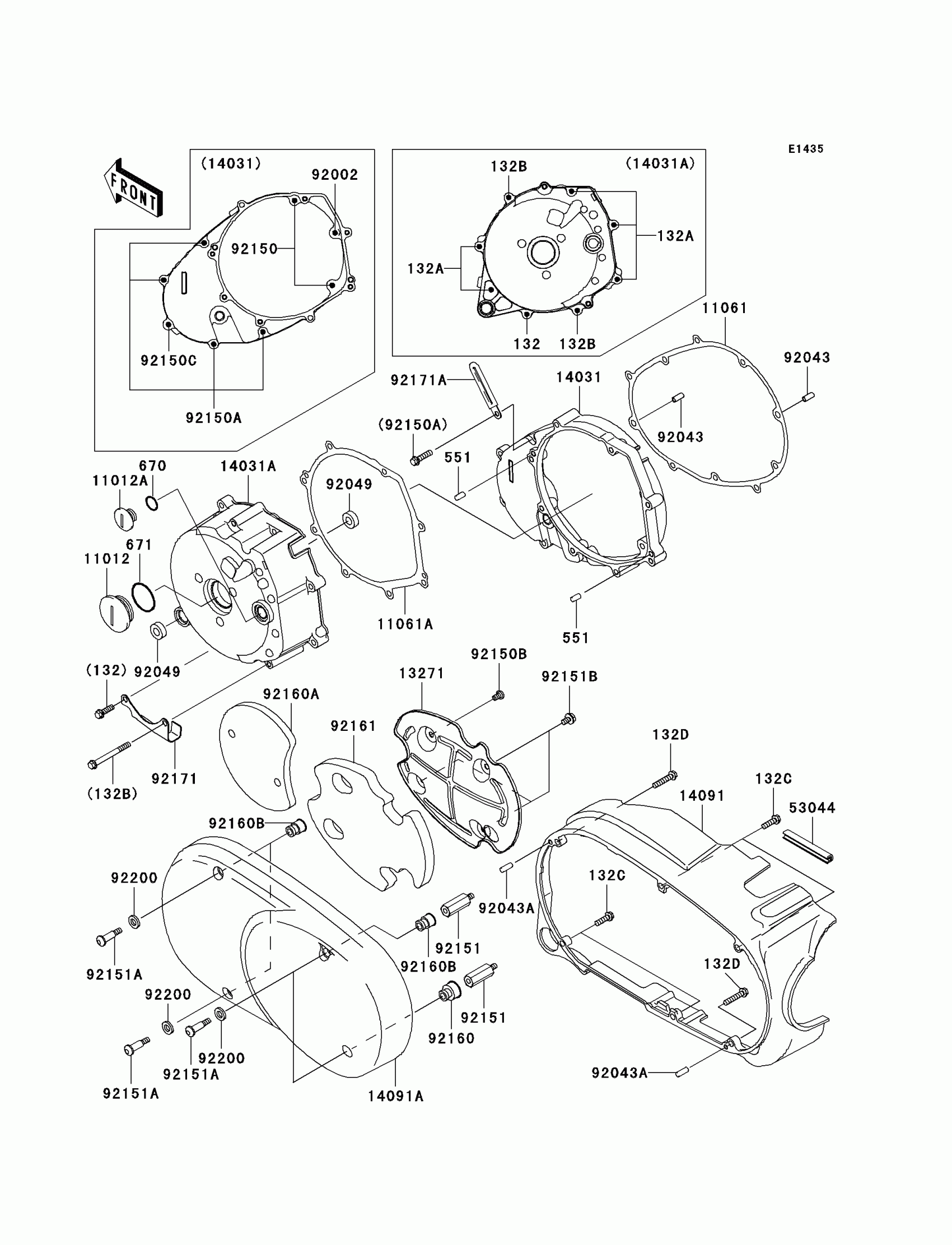

Kawasaki Vulcan 1600 Nomad Left Engine Cover(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X60

132J0660

Unavailable

132C

BOLT-FLANGED-SMALL,6X20

132V0620

Unavailable

132D

BOLT-FLANGED-SMALL,6X30

132V0630

Unavailable

551

PIN-DOWEL,6X12

551A0612

$0.78

670

O RING,18MM

670B2018

$1.08

671

O RING,40MM

671B2540

$4.67

11012

CAP

11012-1362

$6.70

11012A

CAP,TOP MARK

11012-1363

$4.88

11061

GASKET,GENERATOR COVER,IN

11061-1079

$21.30

11061A

GASKET,GENERATOR COVER,OUT

11061-1080

$20.66

13271

PLATE

13271-1496

$32.27

14031

COVER-GENERATOR,INNER

14031-1348

Unavailable

14031A

COVER-GENERATOR,OUTER

14031-1349

Unavailable

14091

COVER,LH,INNER

14091-1206

$147.82

14091A

COVER,LH,OUTER

14091-1297

$566.37

53044

TRIM

53044-1312

$4.59

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

$4.66

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,6X16

92043-1690

$3.81

92049

SEAL-OIL,VB13193

92049-1398

$4.67

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92150B

BOLT,6X10

92150-1864

$3.49

92150C

BOLT,6X35

92150-1967

$3.85

92151

BOLT

92151-1062

$16.46

92151A

BOLT,L=32

92151-1796

$5.00

92151B

BOLT,6X10

92151-1884

$2.22

92160

DAMPER

92160-1718

$7.80

92160A

DAMPER

92160-1719

$29.02

92160B

DAMPER

92160-1730

Unavailable

92161

DAMPER

92161-1179

$51.00

92171

CLAMP,CLUCTH HOSE

92171-0117

$5.10

92171A

CLAMP

92171-0462

$4.34

92200

WASHER

92200-1296

Unavailable
