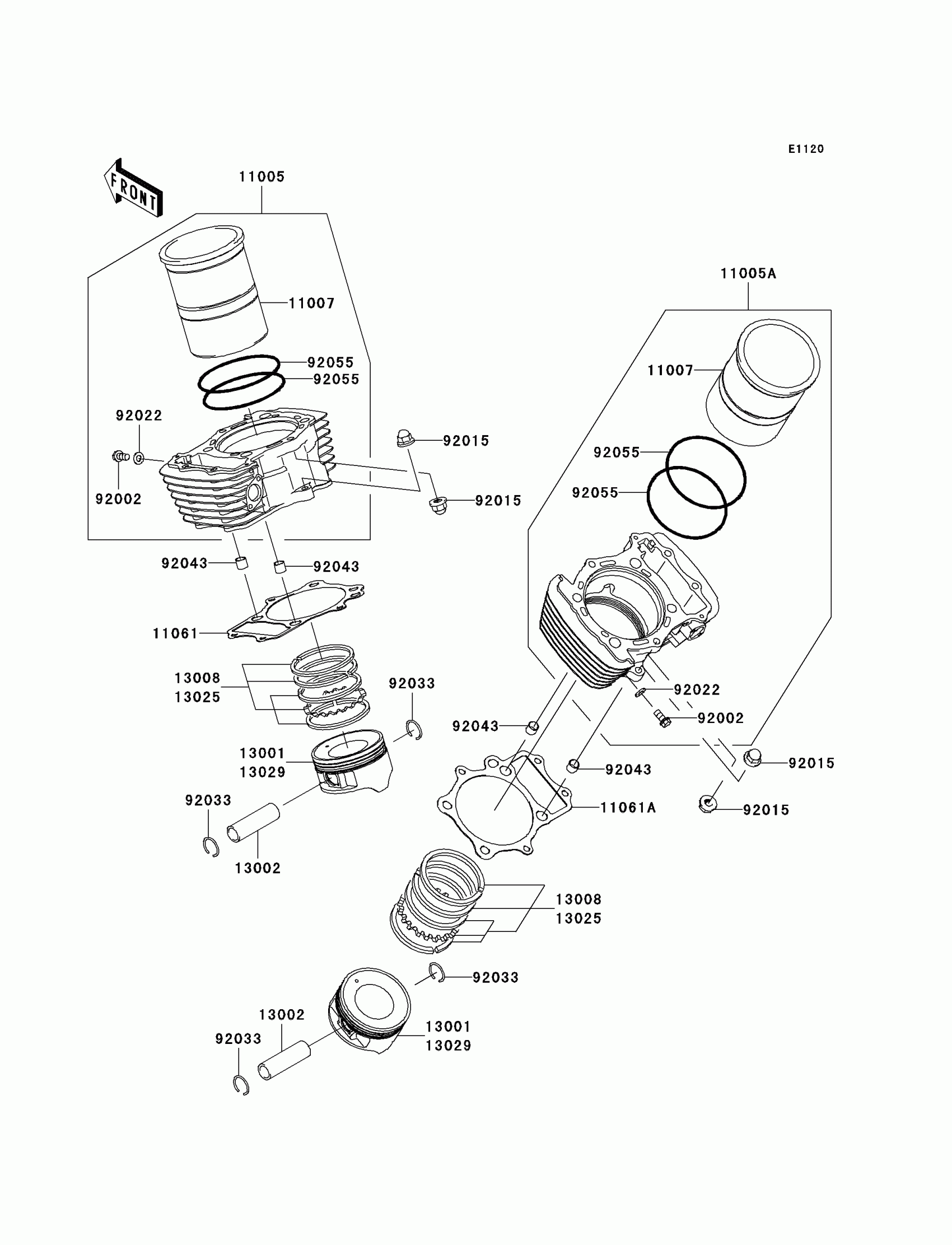

Kawasaki Vulcan 1600 Nomad Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,FR

11005-0019

$992.86

11005A

CYLINDER-ENGINE,RR

11005-0020

$992.86

11007

LINER-CYLINDER

11007-1176

$224.79

11061

GASKET,CYLINDER BASE,FR

11061-1083

Unavailable

11061A

GASKET,CYLINDER BASE,RR

11061-1084

$14.53

13001

PISTON-ENGINE,STD

13001-0054

Unavailable

13002

PIN-PISTON

13002-1107

$40.29

13008

RING-SET-PISTON,STD

13008-1218

$82.95

13025

RING-SET-PISTON L,O/S 0.50

13025-0004

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-0014

Unavailable

92002

BOLT,6X12

92002-1569

Unavailable

92015

NUT,CAP,8MM

92015-1370

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92033

RING-SNAP

92033-1226

$2.97

92043

PIN,13X16X14

92043-1608

$3.81

92055

RING-O,110.5X2.5

92055-1371

$8.10
