2005 Kawasaki Vulcan 1600 Nomad Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Kawasaki Vulcan 1600 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

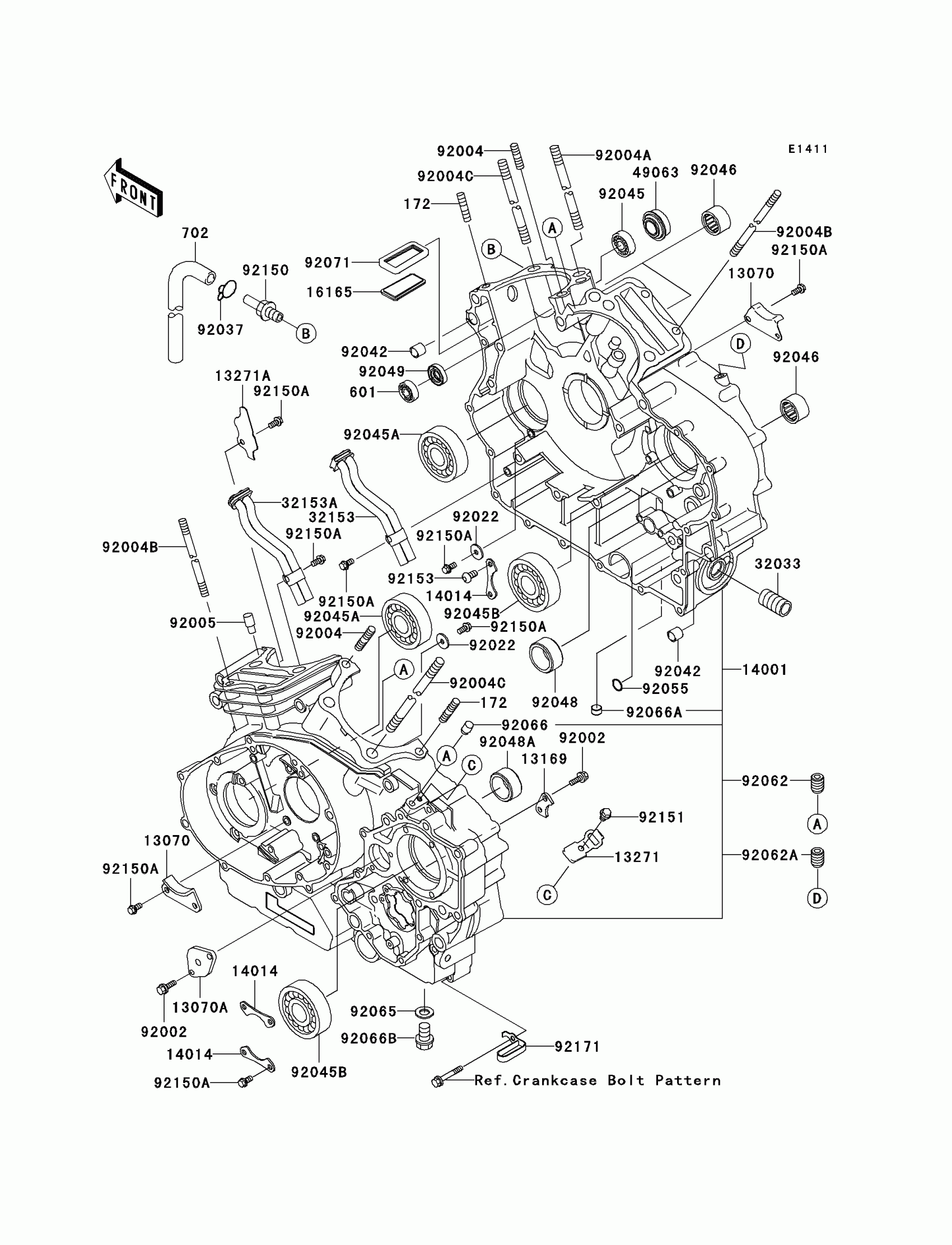

2005 Kawasaki Vulcan 1600 Nomad Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,CAM CHAIN

13070-1168

1

$4.98

In stock

13070A

GUIDE

13070-1372

1

$25.24

In stock

13169

1

$4.90

In stock

13271

PLATE

13271-0210

1
Out of stock

13271A

PLATE

13271-1727

1

$6.53

In stock

14001

SET-CRANKCASE

14001-5394

1
Out of stock

14014

PLATE-POSITION

14014-1084

1
Out of stock

16165

SEPARATOR

16165-1058

1

$31.98

In stock

32033

PIPE,OIL FILTER

32033-1535

1

$10.27

In stock

32153

PIPE,RH CRANKCASE

32153-1262

1

$45.94

In stock

32153A

PIPE,LH CRANKCASE

32153-1263

1

$45.94

In stock

49063

SEAL-MECHANICAL

49063-1057

1

$44.44

In stock

92002

BOLT,6X16

92002-1439

1

$3.72

In stock

92004

STUD,8X25

92004-0011

1
Out of stock

92004A

STUD,12X250

92004-0017

1
Out of stock

92004B

STUD,8X231

92004-1174

1
Out of stock

92004C

STUD,12X250

92004-1225

1
Out of stock

92005

FITTING

92005-1155

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92037

CLAMP

92037-1835

1

$4.85

In stock

92042

1

$1.00

In stock

92045

1

$24.30

In stock

92045A

BEARING-BALL,63/28

92045-1189

1

$48.89

In stock

92045B

1

$37.16

In stock

92046

BEARING-NEEDLE,HK1212V11

92046-1292

1
Out of stock

92048

RACE

92048-1103

1
Out of stock

92048A

RACE

92048-1113

1
Out of stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92055

RING-O,13.2X2.4

92055-1373

1

$3.74

In stock

92062

NOZZLE,6X8,GREEN

92062-1078

1

$4.17

In stock

92062A

NOZZLE

92062-1089

1

$8.39

In stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

PLUG

92066-1110

1

$5.66

In stock

92066B

1

$4.88

In stock

92071

GROMMET,SEPARATOR

92071-1269

1

$8.83

In stock

92150

BOLT

92150-1161

1

$7.60

In stock

92150A

BOLT,6X12

92150-1868

1

$2.66

In stock

92151

BOLT,6X8

92151-1416

1

$1.63

In stock

92153

BOLT,6X12

92153-0344

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1

$2.56

In stock

601

BEARING-BALL

601A6001

1

$9.26

In stock

702

TUBE-RUBBER,4X330

702A04330

1

$11.29

In stock

92171

CLAMP

92171-1273

1

$8.86

In stock
