2005 Kawasaki Vulcan 1600 Classic Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2005 Kawasaki Vulcan 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

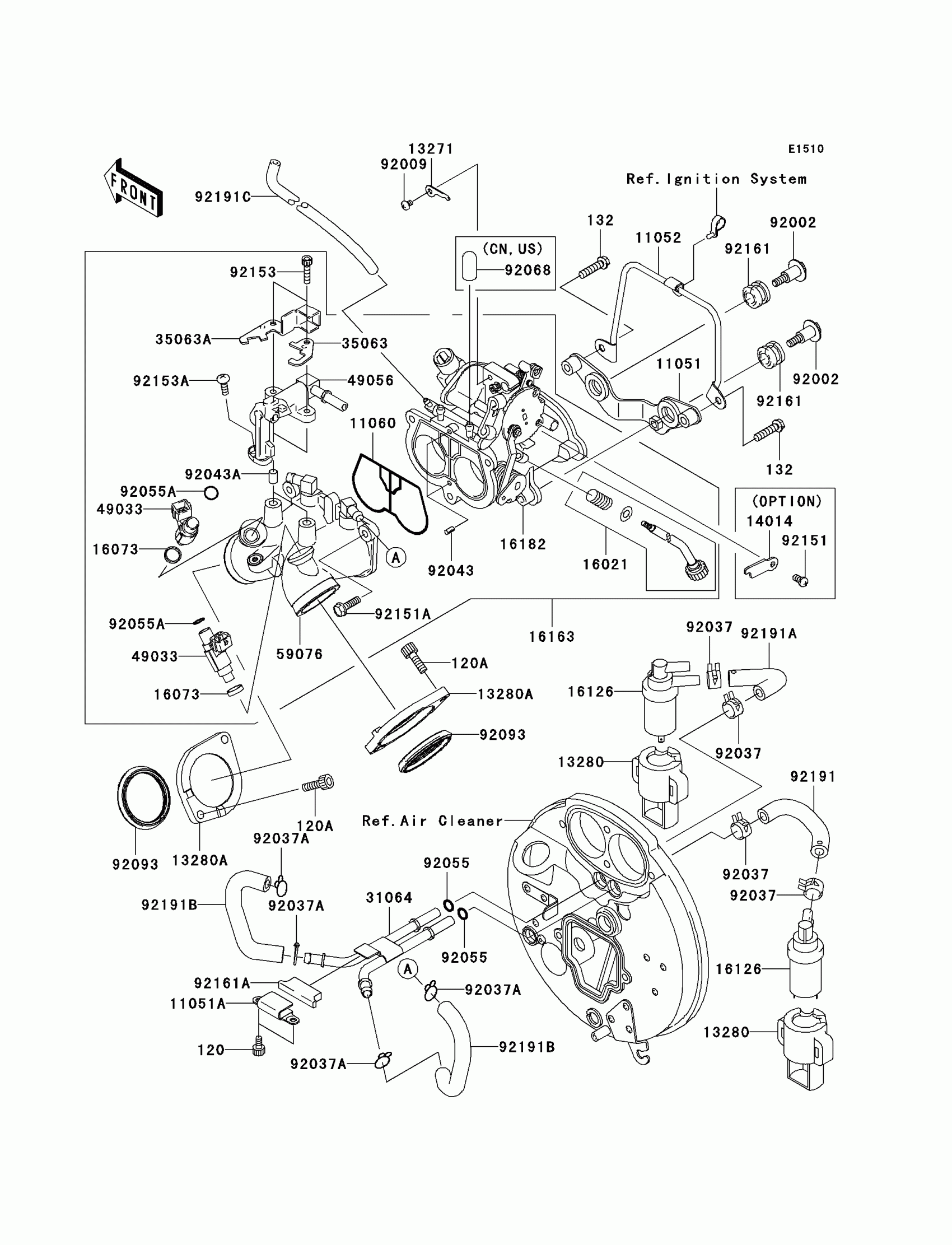

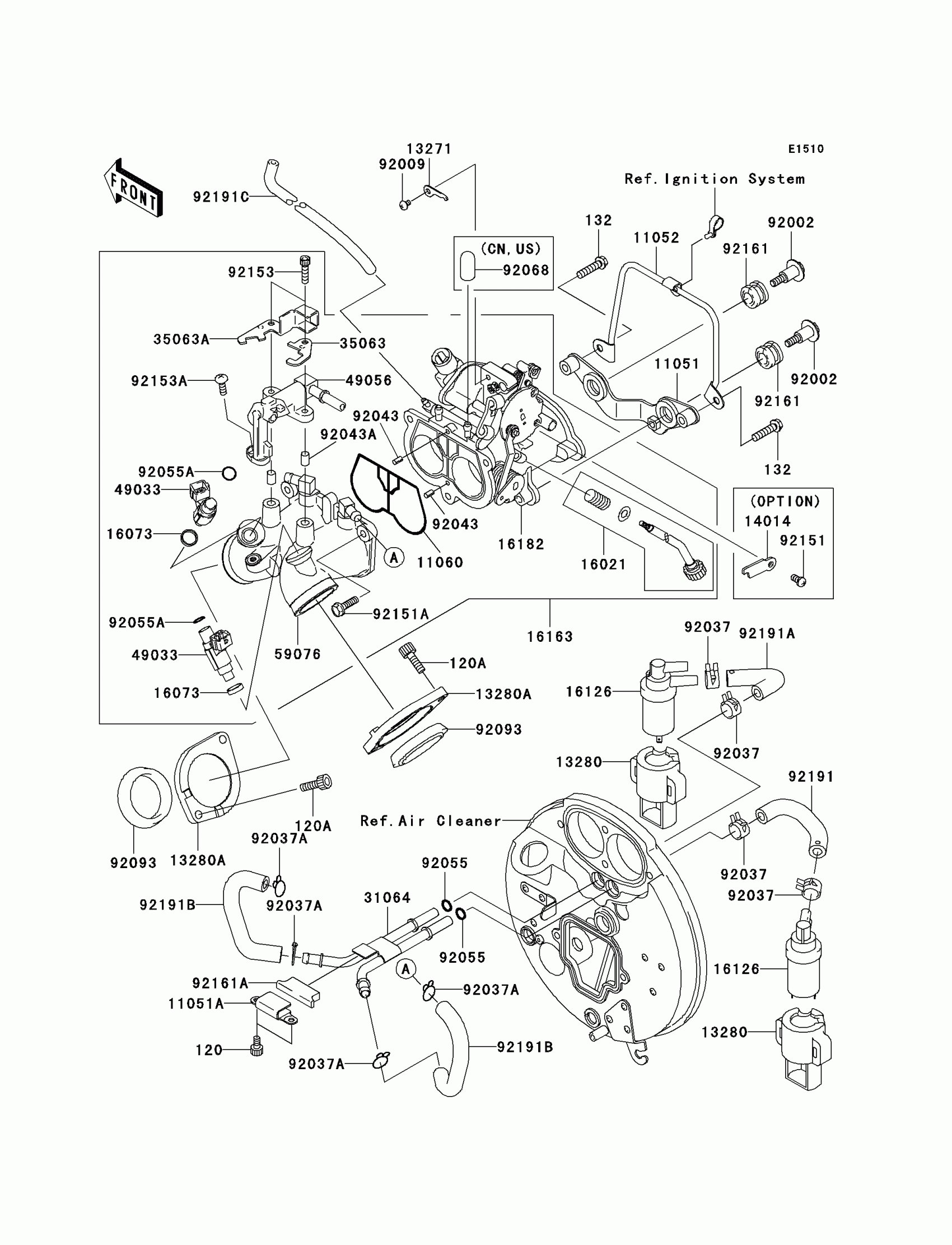

2005 Kawasaki Vulcan 1600 Classic Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET

11051-1333

1

$42.27

In stock

11051A

BRACKET

11051-1345

1

$7.59

In stock

11052

1

$58.07

In stock

11060

1

$49.92

In stock

13271

PLATE,STARTER CABLE

13271-1314

1
Out of stock

13280

HOLDER

13280-1139

1

$30.34

In stock

13280A

HOLDER

13280-1154

1

$22.39

In stock

14014

PLATE-POSITION,25KW

14014-1142

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1227

1

$103.93

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16126

VALVE

16126-1372

1
Out of stock

16163

THROTTLE-ASSY

16163-1126

1

$1,816.27

In stock

16182

BODY-THROTTLE

16182-0001

1

$1,331.44

In stock

31064

PIPE-COMP

31064-1242

1

$56.56

In stock

35063

STAY

35063-0030

1

$19.92

In stock

35063A

STAY

35063-0038

1

$19.92

In stock

49033

NOZZLE-INJECTION

49033-3707

1

$115.20

In stock

49056

PIPE-INJECTION

49056-0002

1

$206.39

In stock

59076

MANIFOLD-INTAKE

59076-0002

1

$513.90

In stock

92002

BOLT,FLANGED,6X14X13.5

92002-1595

1
Out of stock

92009

SCREW,4X6

92009-1903

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92037A

CLAMP,12.5MM

92037-1271

1

$1.80

In stock

92043

PIN,THROTTLE BODY

92043-1600

1

$2.75

In stock

92043A

PIN,DELIVERY PIPE

92043-1601

1

$2.75

In stock

92055

RING-O,7.8X3.5

92055-029

1

$3.65

In stock

92055A

1

$1.64

In stock

92093

SEAL

92093-1484

1
Out of stock

92151

BOLT,5X10,25KW

92151-1528

1

$4.39

In stock

92151A

BOLT,THROTTLE BODY

92151-1587

1

$3.73

In stock

92153

BOLT,5X20

92153-0378

1
Out of stock

92153A

BOLT

92153-0379

1
Out of stock

92161

DAMPER

92161-1058

1
Out of stock

92161A

DAMPER

92161-1062

1

$9.56

In stock

92191

TUBE,REAR VALVE,RED

92191-1367

1
Out of stock

92191A

TUBE,FRONT VALVE,BLUE

92191-1368

1
Out of stock

120

BOLT-SOCKET,5X10

120S0510

1
Out of stock

120A

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

92191B

TUBE

92191-1608

1
Out of stock

92191C

TUBE,THROTTLE-BOOST SENSOR

92191-1821

1
Out of stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock
