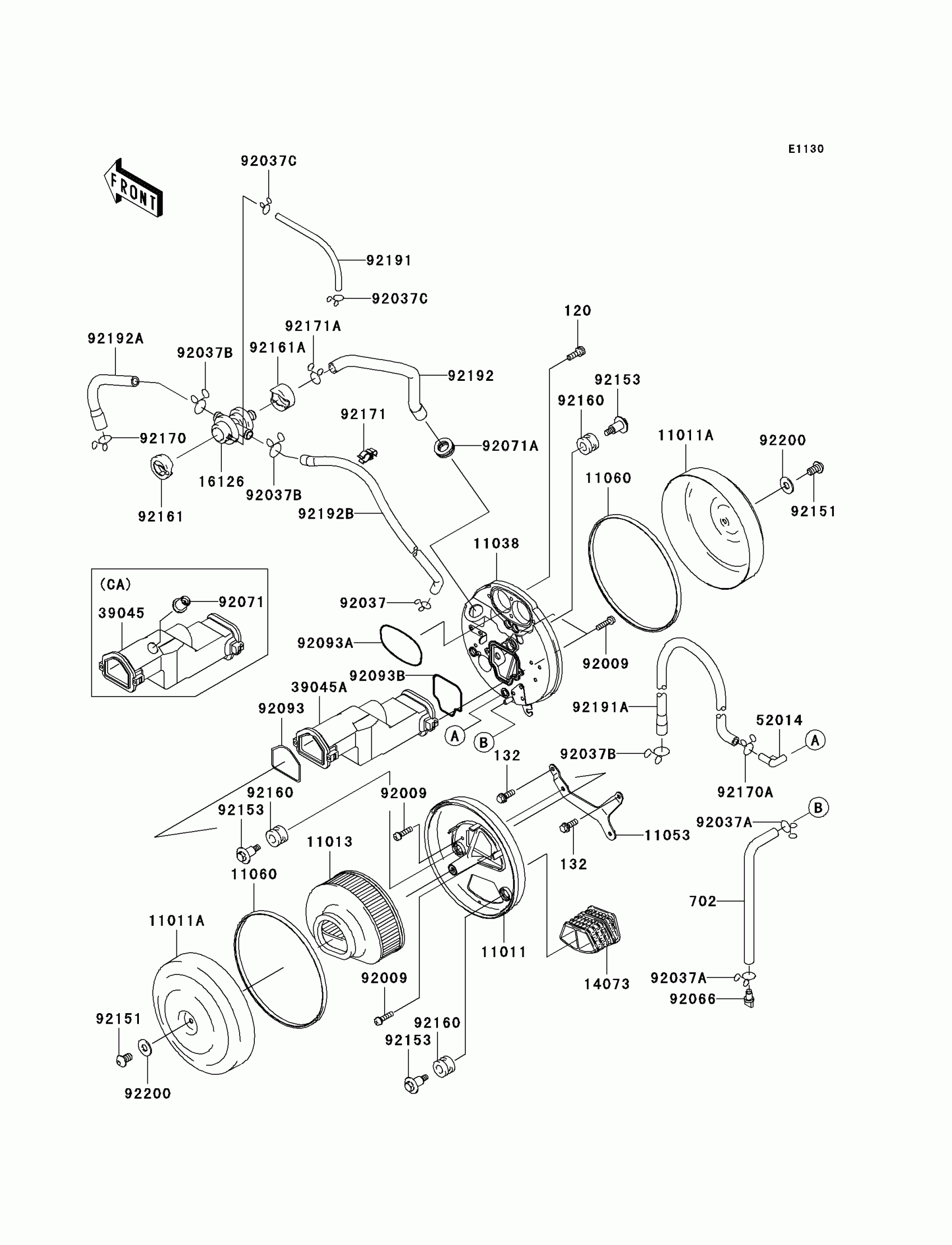

Kawasaki Vulcan 1600 Classic Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,LH

11011-1672

$106.03

11011A

CASE-AIR FILTER,COVER

11011-1673

$118.95

11013

ELEMENT-AIR FILTER

11013-1305

$52.63

11038

CASE-ASSY-AIR FILTER,RH

11038-0005

$106.03

11053

BRACKET,AIR FILTER,LH

11053-1208

Unavailable

11060

GASKET,AIR FILTER CASE

11060-1968

$16.25

14073

DUCT,INTAKE

14073-1863

$37.53

16126

VALVE,AIR SWITCH

16126-0005

$223.72

52014

ELBOW

52014-1083

$7.71

92009

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.35

92037

CLAMP

92037-1468

$7.61

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1593

$5.42

92037C

CLAMP

92037-1712

$3.81

92066

PLUG,DRAIN

92066-1211

$6.48

92071A

GROMMET,AIR FILTER

92071-1028

$5.55

92093

SEAL,DUCT,LH

92093-1459

$6.69

92093A

SEAL

92093-1485

Unavailable

92093B

SEAL,DUCT,RH

92093-1491

$6.69

92151

BOLT,8X14

92151-1438

$1.76

92153

BOLT,6X14X9.5

92153-0498

$14.29

92160

DAMPER

92160-1594

$3.57

92161

DAMPER,OUTSIDE

92161-0044

$8.66

92161A

DAMPER,INSIDE

92161-0045

$8.66

92170

CLAMP

92170-1017

$3.57

92170A

CLAMP,TUBE

92170-1445

$4.34

92170B

CLAMP

92170-1695

$2.27

92171

CLAMP

92171-0131

$4.78

92191

TUBE,4X9X230

92191-0033

$9.41

92191A

TUBE,BREATHER

92191-1820

Unavailable

92192

TUBE,AIR SWITCH-FILTER CASE

92192-0011

$21.92

92192A

TUBE,FR HEAD-AIR SWITCH

92192-0025

$12.00

92192B

TUBE,AIR SWITCH-RR HEAD

92192-0026

$24.12

92200

WASHER,8.5X20X1.6

92200-1463

$1.96

120

BOLT-SOCKET,6X16

120S0616

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

702

TUBE-RUBBER,7X10X230

702A07230

$10.11

39045

DUCT-ASSY,JOINT

39045-0001

$142.51

39045A

DUCT-ASSY,CENTER

39045-0003

$142.51

92071

GROMMET

92071-0003

$25.58
