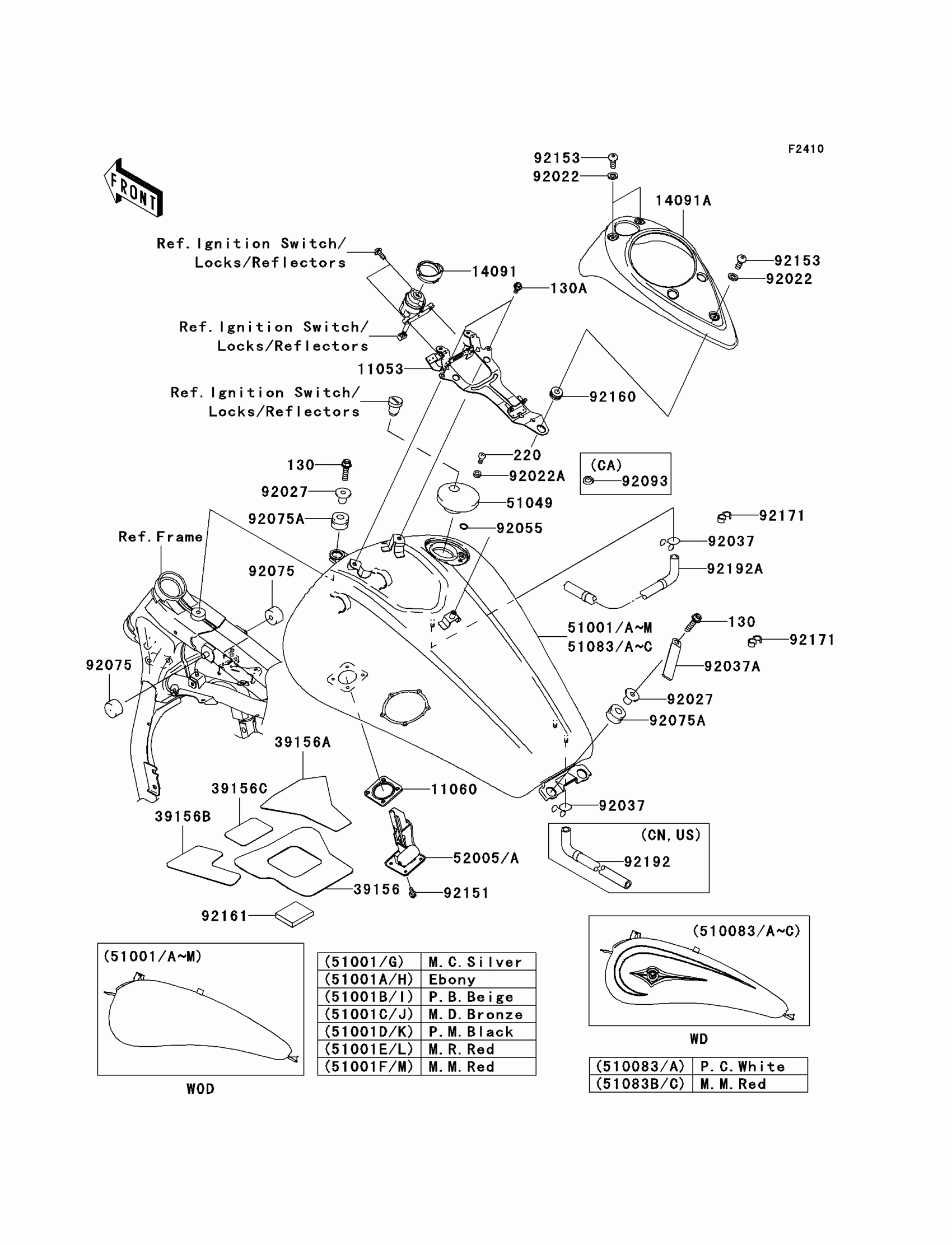

Kawasaki Vulcan 1600 Classic Fuel Tank Diagram

#

Description
Price

11053

BRACKET,METER COVER

11053-0275

$64.86

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

14091

COVER,IGNITION SWITCH

14091-0088

$10.71

14091A

COVER,METER

14091-0091

$175.15

39156

PAD,FUEL TANK,CNT,RR

39156-0019

$49.15

39156A

PAD,FUEL TANK,RH

39156-0020

$41.25

39156B

PAD,FUEL TANK,LH

39156-0021

$23.73

39156C

PAD,FUEL TANK,CNT,FR

39156-0022

$9.19

51049

CAP-TANK,FUEL

51049-0003

$97.97

130

BOLT-FLANGED,8X30

130H0830

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

52005A

GAUGE,FUEL

52005-0004

Unavailable

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=19.3

92027-1780

$4.93

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,HARNESS,L=100

92037-1636

$7.56

92055

RING-O,ID=9

92055-1552

$2.41

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER

92075-1736

$4.93

92151

BOLT,5X12

92151-1599

$1.23

92153

BOLT,SOCKET,6X10

92153-1096

$1.98

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-1338

$7.80

92171

CLAMP

92171-1184

$2.03

92192A

TUBE,DRAIN

92192-0038

$24.12

51001A

TANK-COMP-FUEL,EBONY

51001-0017-H8

$1,228.87

51001B

TANK-COMP-FUEL,P.B.BEIGE

51001-0017-X8

$1,228.87

51001H

TANK-COMP-FUEL,EBONY

51001-0018-H8

$1,230.89

51001I

TANK-COMP-FUEL,P.B.BEIGE

51001-0018-X8

Unavailable

51083B

TANK-COMP-FUEL,M.M.RED

51083-5354-665

Unavailable

51083C

TANK-COMP-FUEL,M.M.RED

51083-5355-665

$1,502.46

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92192

TUBE,BREATHER

92192-0024

$19.37
