2005 Kawasaki Vulcan 1600 Classic Right Engine Cover Diagram

← All diagrams

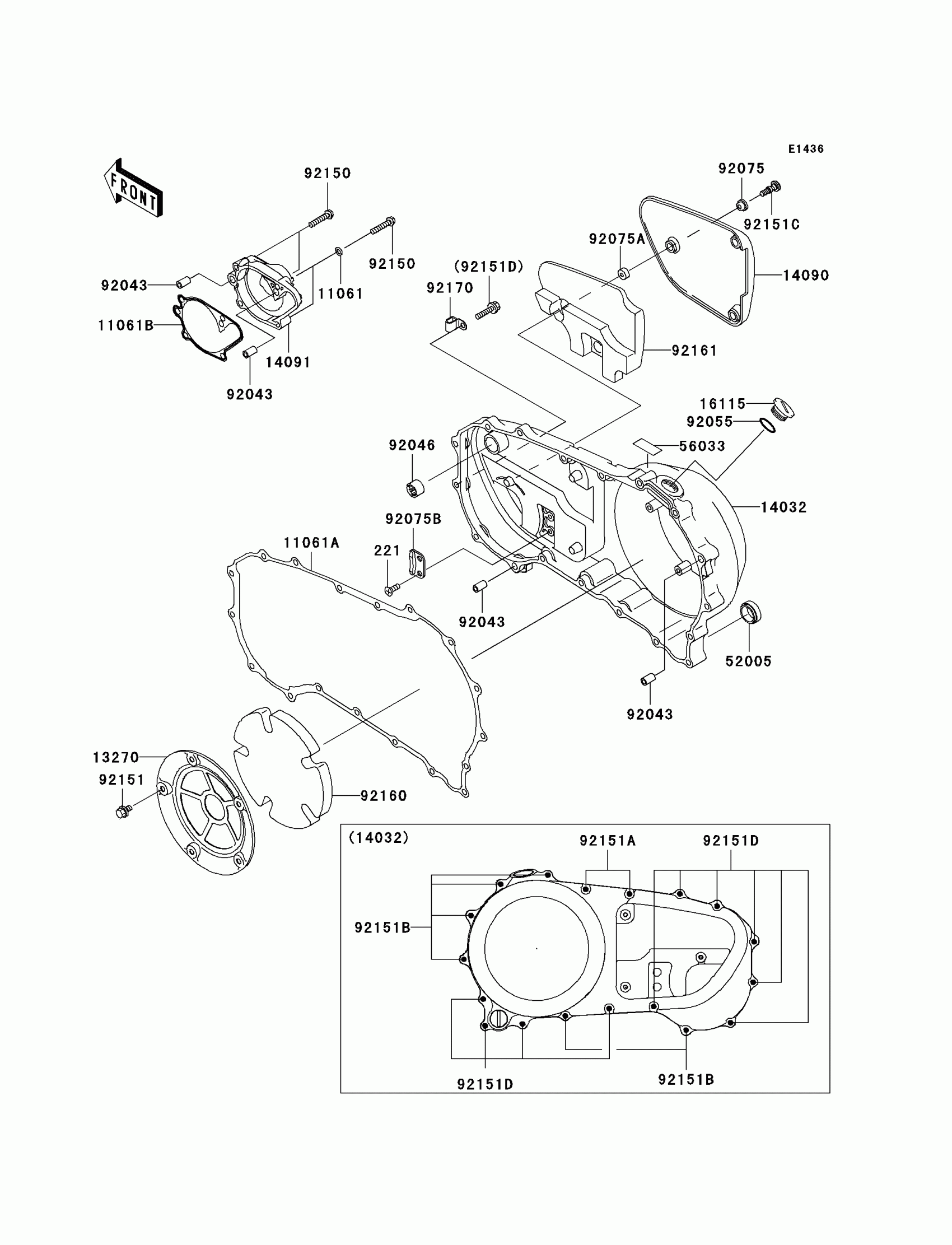

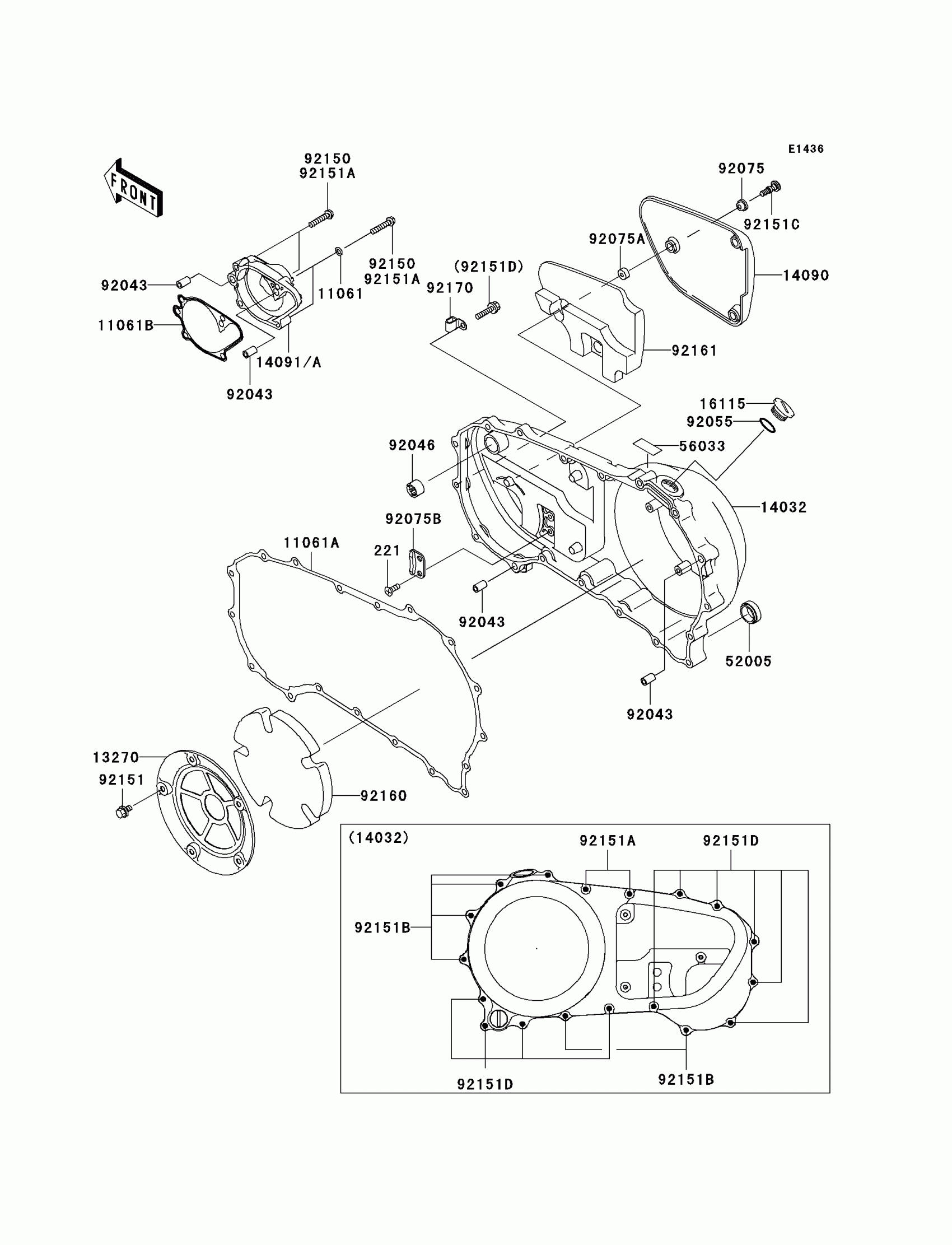

Find the part on the Right Engine Cover diagram for your 2005 Kawasaki Vulcan 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Classic Right Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

SCREW-CSK-CROS,6X12

221B0612

1
Out of stock

11061

GASKET

11061-0107

1
Out of stock

11061A

GASKET,CLUTCH COVER

11061-1081

1
Out of stock

11061B

GASKET,WATER PUMP COVER

11061-1172

1
Out of stock

13270

PLATE

13270-1592

1
Out of stock

14032

COVER-CLUTCH

14032-1493

1
Out of stock

14090

COVER,CLUTCH OUTER

14090-1678

1
Out of stock

14091

COVER,WATER PUMP

14091-0124

1
Out of stock

16115

CAP-OIL FILLER

16115-1063

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

56033

LABEL-MANUAL,OIL CAPACITY

56033-1156

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1212

92046-1163

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92075

DAMPER

92075-1855

1
Out of stock

92075A

DAMPER

92075-1856

1
Out of stock

92075B

DAMPER

92075-1905

1
Out of stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92151

BOLT,6X10

92151-1064

1
Out of stock

92151A

BOLT,6X30

92151-1134

1
Out of stock

92151B

BOLT,6X35

92151-1135

1
Out of stock

92151C

BOLT,SOCKET,6X22.5

92151-1273

1
Out of stock

92151D

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92160

DAMPER

92160-1716

1
Out of stock

92161

DAMPER

92161-1139

1
Out of stock

92170

CLAMP

92170-1804

1
Out of stock
