2004 Kawasaki Vulcan 1500 Nomad Fi Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2004 Kawasaki Vulcan 1500 Nomad Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

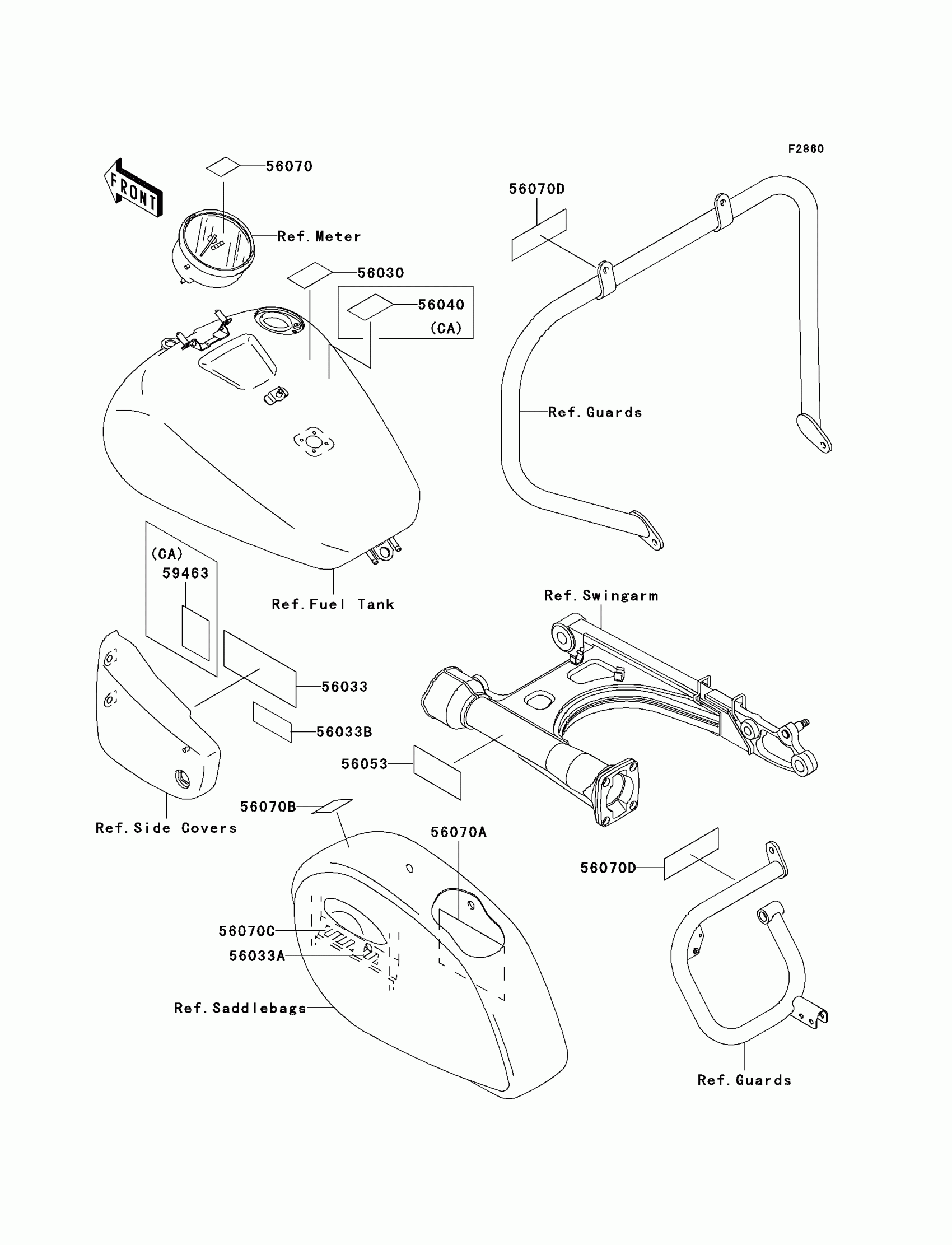

2004 Kawasaki Vulcan 1500 Nomad Fi Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56030

LABEL,GASOLINE

56030-1177

1
Out of stock

56033

LABEL-MANUAL,DAILY SAFETY

56033-1329

1
Out of stock

56033A

LABEL-MANUAL,SIDE BAG

56033-1330

1
Out of stock

56033B

LABEL-MANUAL,OIL&OIL FILTER

56033-1331

1
Out of stock

56040

LABEL-WARNING,EVAPO

56040-1121

1
Out of stock

56053

LABEL-SPECIFICATION,TIRE&LOAD

56053-1101

1
Out of stock

56070

LABEL-WARNING,BREAK IN CAUTION

56070-1177

1
Out of stock

56070A

LABEL-WARNING,SADDLEBAG

56070-1282

1
Out of stock

56070B

LABEL-WARNING,SIDE BAG

56070-1283

1
Out of stock

56070C

LABEL-WARNING,SIDE BAG

56070-1284

1
Out of stock

56070D

LABEL-WARNING,SIDE BAG GUARD

56070-1285

1
Out of stock

59463

LABEL-CERTIFICATION,EVAPO ROUT

59463-1546

1
Out of stock
