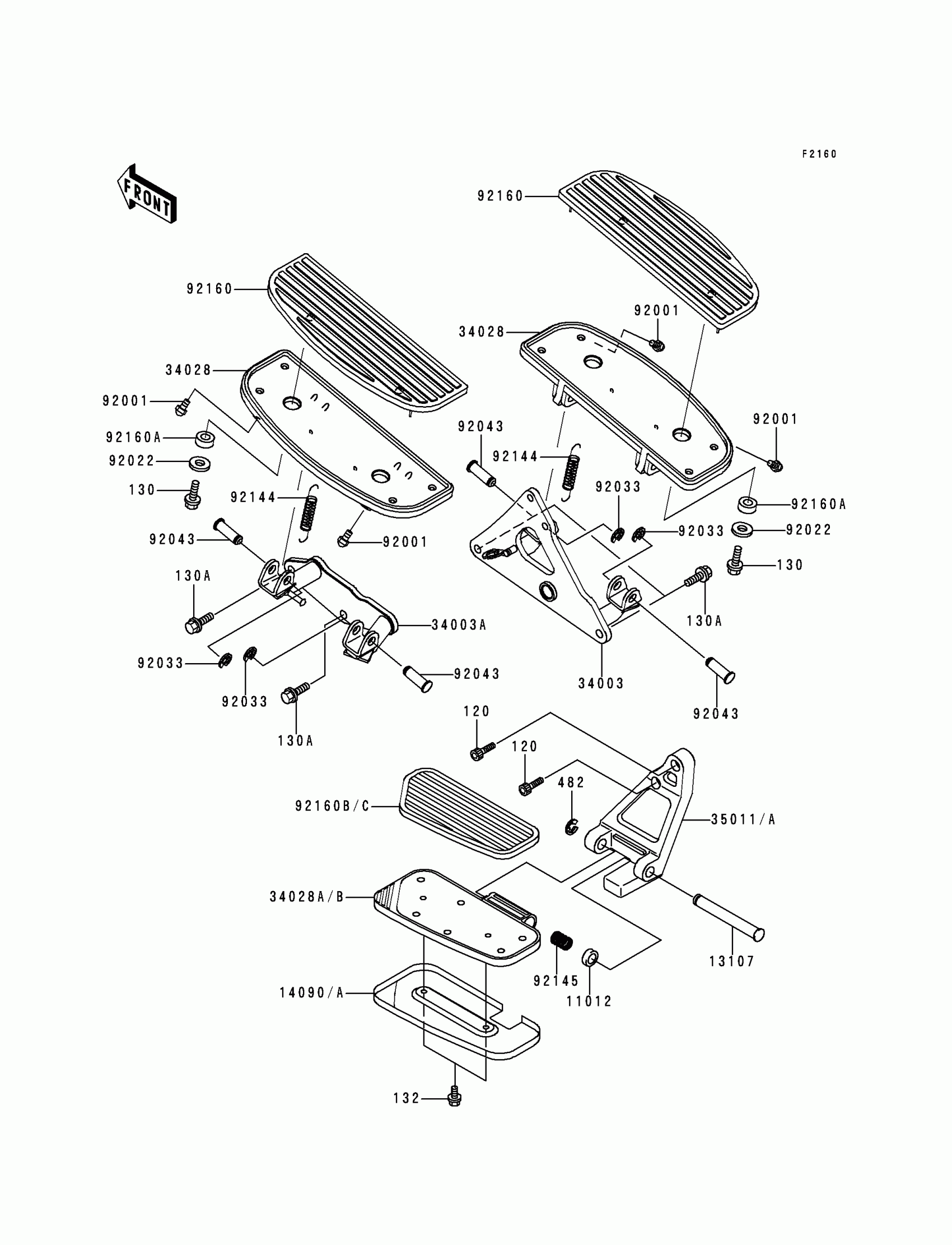

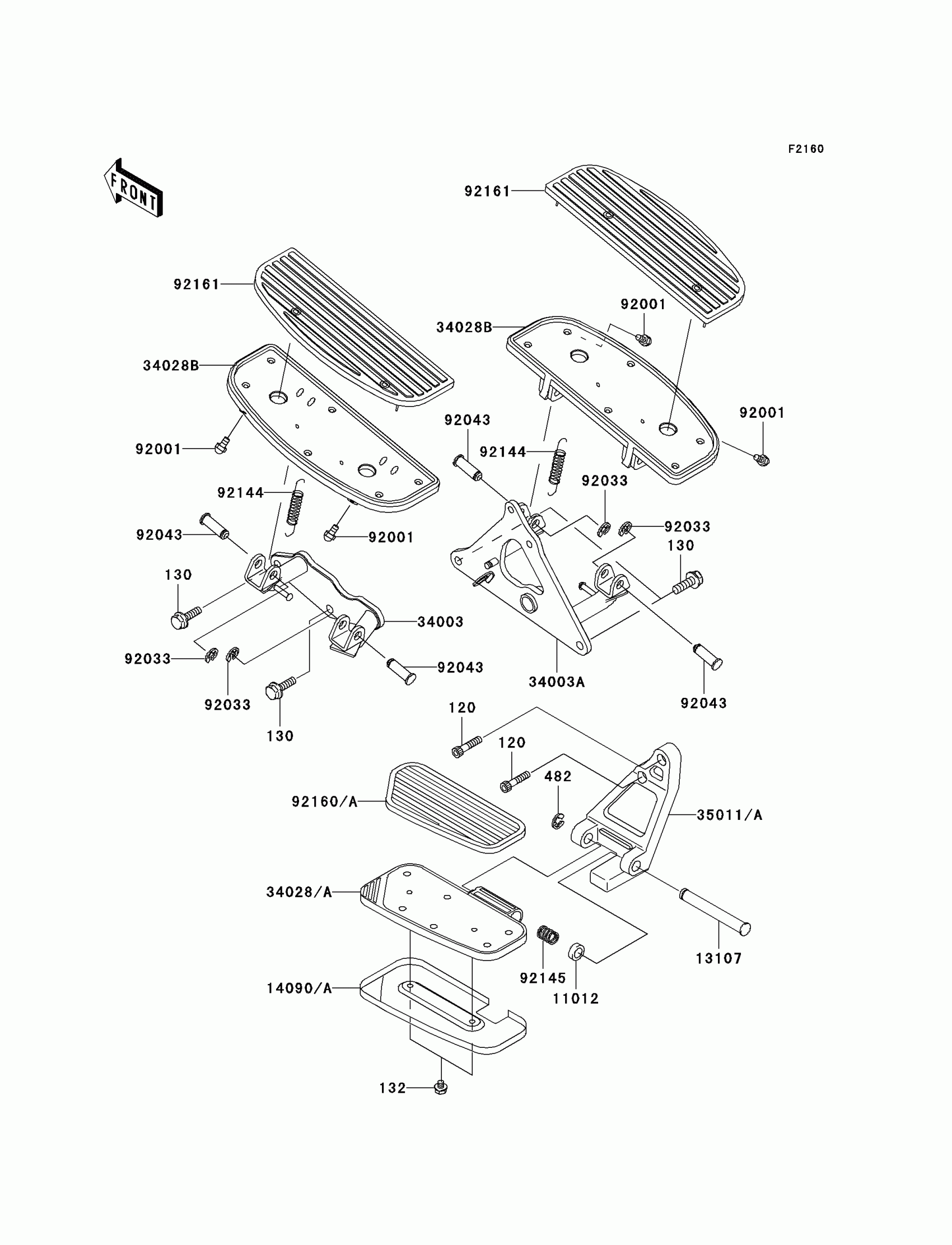

Kawasaki Vulcan 1500 Nomad Fi Footrests Diagram

#

Description
Price

120

BOLT-SOCKET,8X35

120S0835

Unavailable

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,10X30

130J1030

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132E0608

$1.78

482

CIRCLIP-TYPE-E

482L0200

Unavailable

11012

CAP

11012-1498

$5.54

13107

SHAFT,REAR STEP

13107-1174

$15.71

14090

COVER,REAR STEP,LH

14090-1907

$76.01

14090A

COVER,REAR STEP,RH

14090-1908

$60.67

34003

HOLDER-STEP,FR,RH

34003-1473

$166.32

34003A

HOLDER-STEP,FR,LH

34003-1493

$138.18

34028

STEP,FR

34028-1417

$153.75

34028A

STEP,RR,LH

34028-1459

$72.39

34028B

STEP,RR,RH

34028-1460

$124.41

35011

STAY,REAR STEP,LH

35011-1897

$109.47

35011A

STAY,REAR STEP,RH

35011-1898

$89.48

92001

BOLT,BANK SENSOR

92001-1905

$7.22

92022

WASHER,7X28X1.6,BLACK

92022-1392

$1.85

92033

RING-SNAP,10MM

92033-1166

$2.97

92043

PIN,12X37

92043-1358

$6.18

92144

SPRING

92144-1266

$6.70

92145

SPRING,REAR STEP

92145-1130

$4.98

92160

DAMPER,FRONT STEP

92160-1727

$73.16

92160A

DAMPER

92160-1728

$3.58

92160B

DAMPER,REAR STEP,LH

92160-1904

$44.49

92160C

DAMPER,REAR STEP,RH

92160-1905

$44.49
