2000 Kawasaki Vulcan 1500 Nomad Fi Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2000 Kawasaki Vulcan 1500 Nomad Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

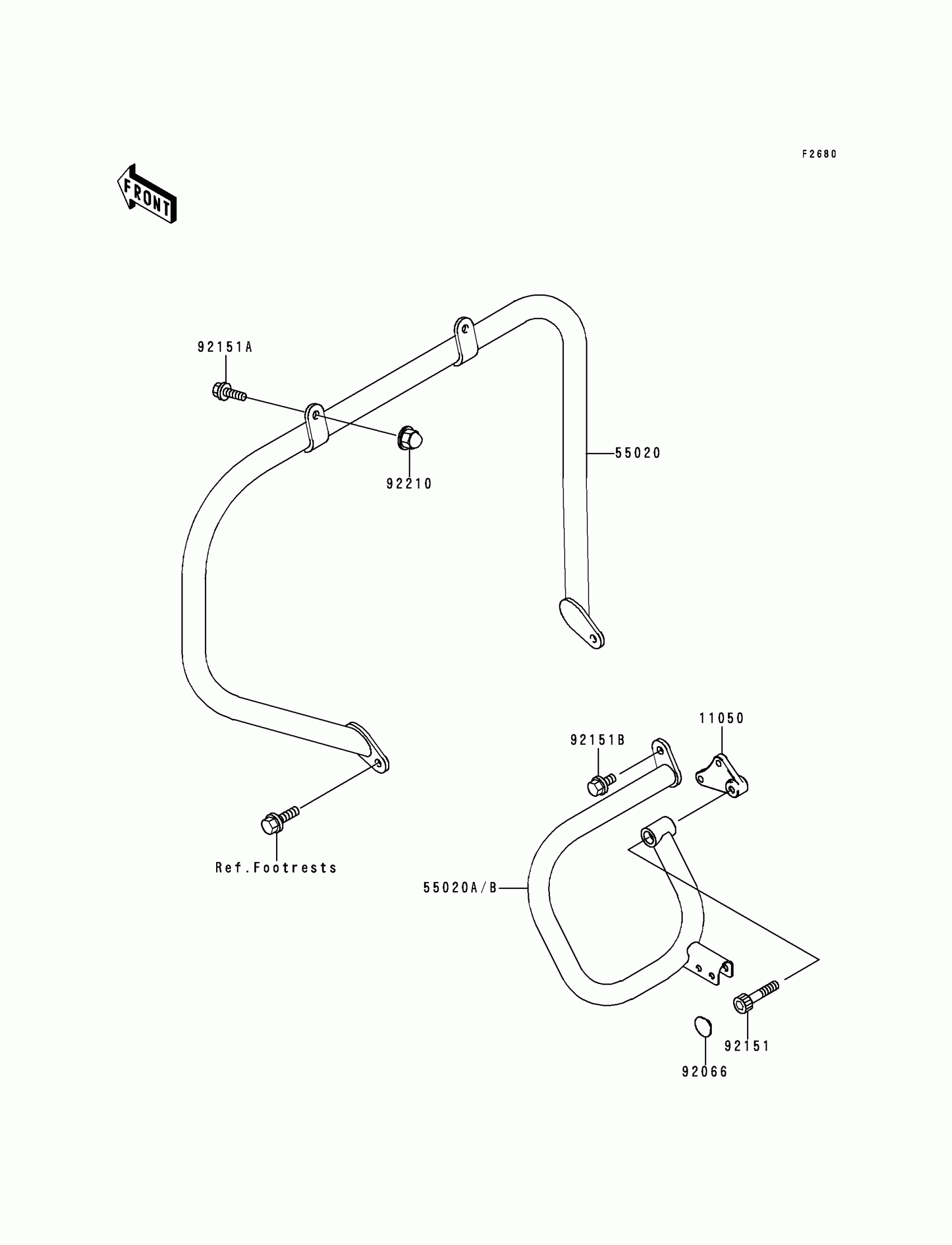

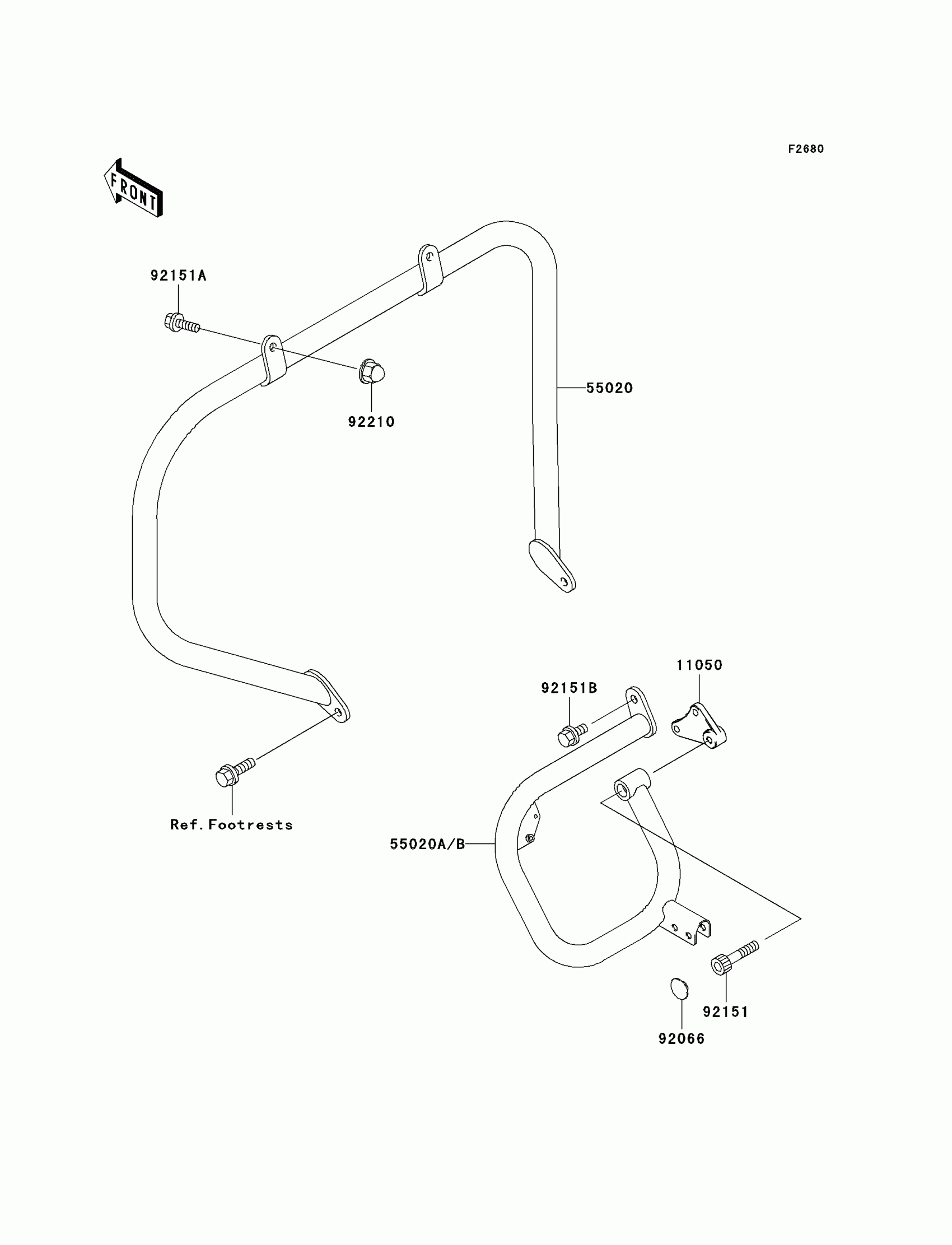

2000 Kawasaki Vulcan 1500 Nomad Fi Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11050

BRACKET,REAR GUARD

11050-1697

1
Out of stock

55020

GUARD,FR

55020-1638

1
Out of stock

55020A

GUARD,RR,LH

55020-1683

1
Out of stock

55020B

GUARD,RR,RH

55020-1684

1
Out of stock

92066

PLUG

92066-1285

1
Out of stock

92151

BOLT,SOCKET,10X50

92151-1300

1
Out of stock

92151A

BOLT,FLANGED,10X25

92151-1380

1
Out of stock

92151B

BOLT,FLANGED,10X20

92151-1381

1
Out of stock

92210

NUT,CAP,10MM

92210-1160

1
Out of stock
← Frame Fittings Labels →
