2000 Kawasaki Vulcan 1500 Nomad Fi Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2000 Kawasaki Vulcan 1500 Nomad Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

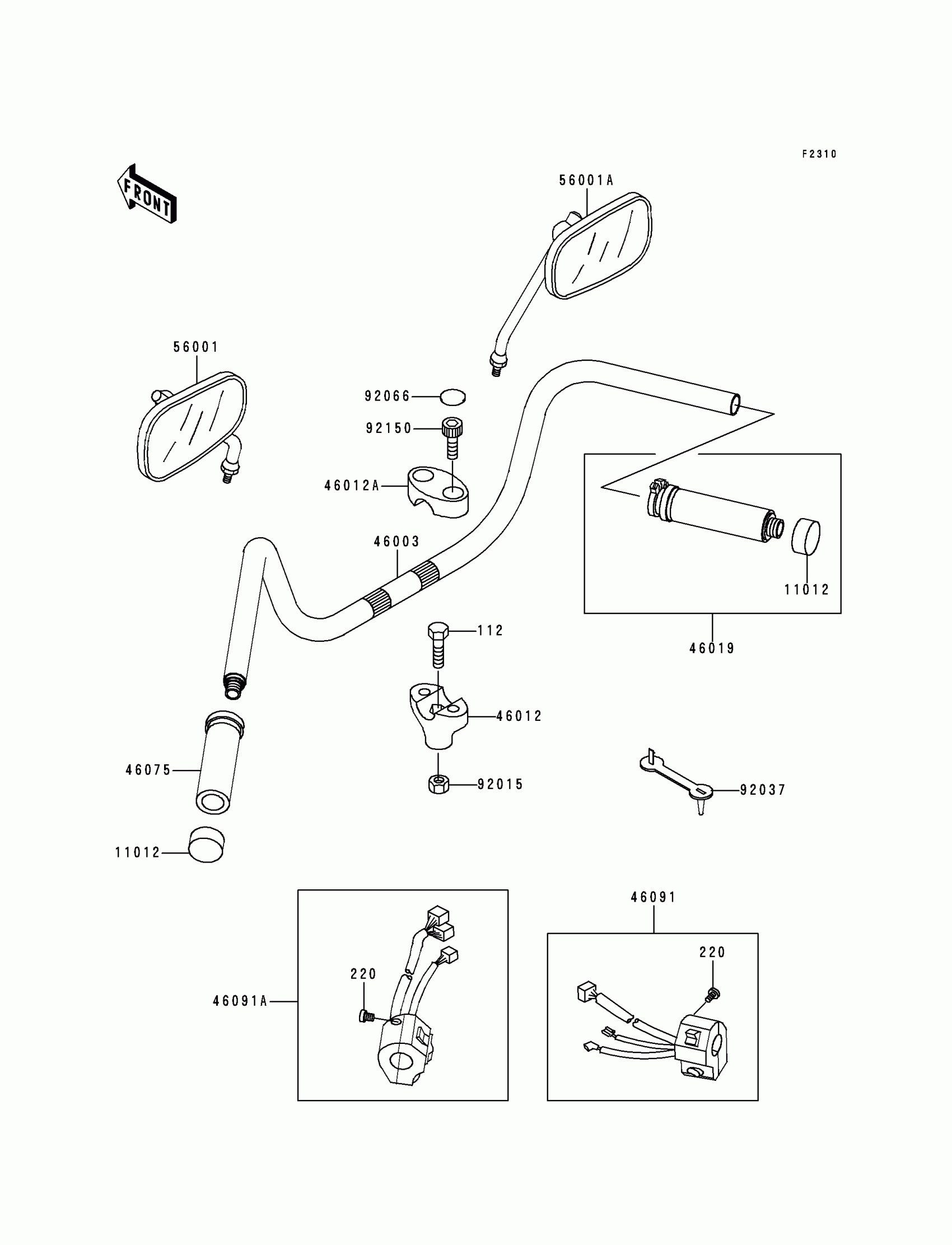

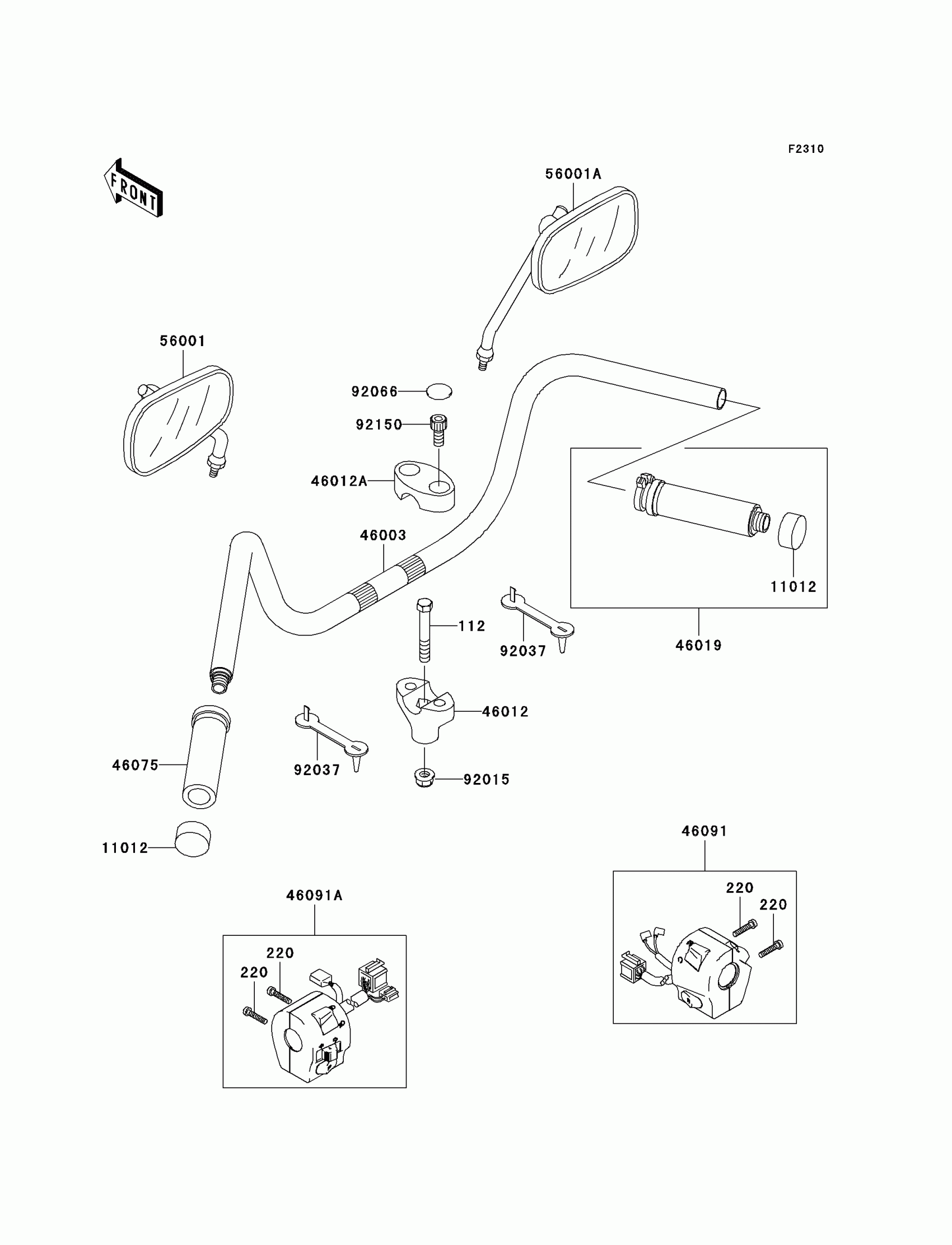

2000 Kawasaki Vulcan 1500 Nomad Fi Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,10X65

112H1065

1
Out of stock

220

SCREW-PAN-CROSS

220E0525

1
Out of stock

11012

CAP,GRIP END

11012-1975

1
Out of stock

46003

HANDLE

46003-1544

1
Out of stock

46012

HOLDER-HANDLE,LWR

46012-1272

1
Out of stock

46012A

HOLDER-HANDLE,UPP

46012-1273

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1109

1
Out of stock

46075

GRIP,LH

46075-1074

1
Out of stock

46091

HOUSING-ASSY-CONTROL,RH

46091-1717

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-1788

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1503

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1504

1
Out of stock

92015

NUT,LOCK,FLANGED,10MM

92015-1717

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92066

PLUG

92066-1285

1
Out of stock

92150

BOLT,SOCKET,10X23

92150-1942

1
Out of stock
