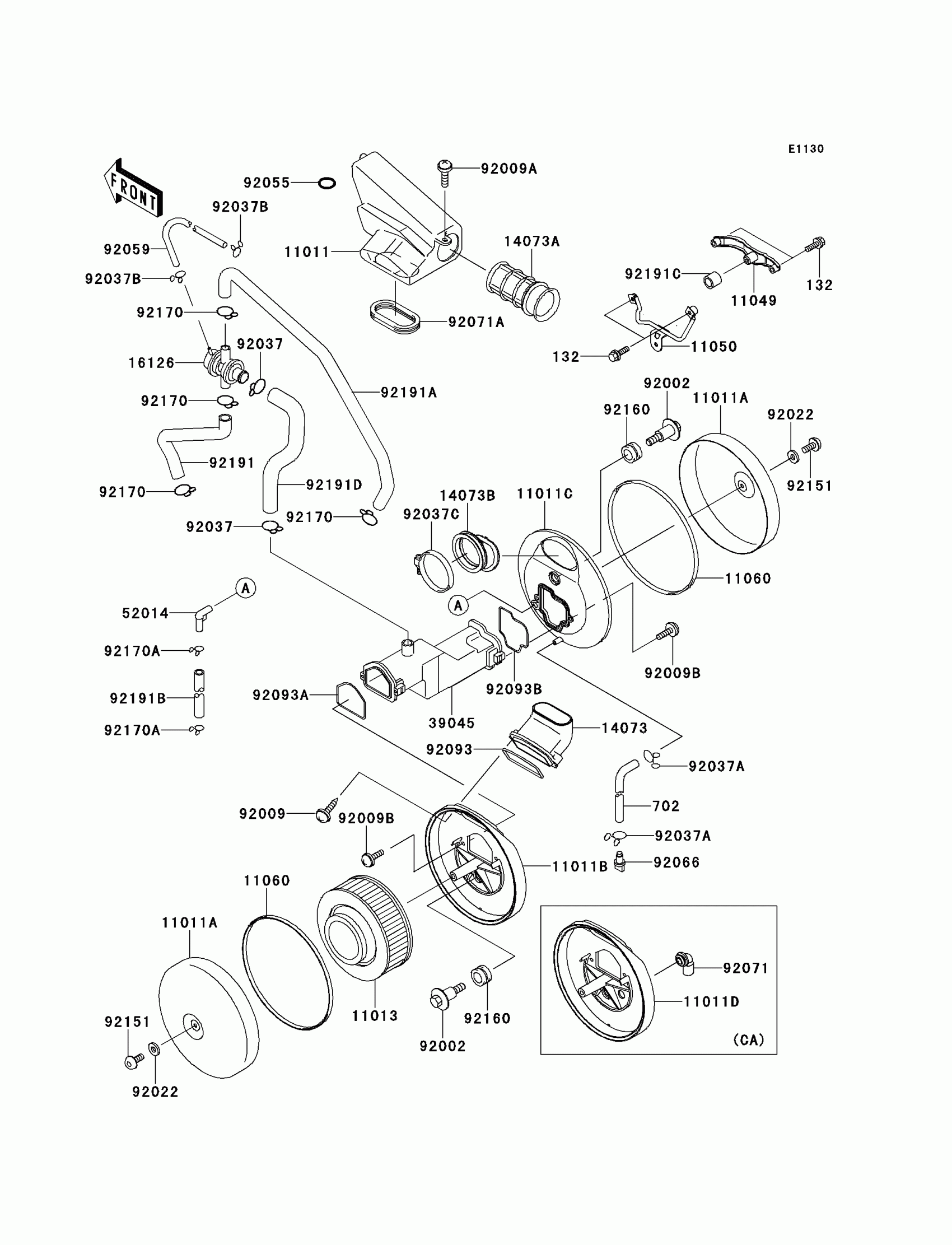

Kawasaki Vulcan 1500 Nomad Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,CENTER

11011-1488

Unavailable

11011A

CASE-AIR FILTER,OUTSIDE

11011-1489

Unavailable

11011C

CASE-AIR FILTER,RH

11011-1529

$87.40

11013

ELEMENT-AIR FILTER

11013-1248

$41.86

11049

BRACKET,AIR FILTER,RH

11049-1539

$41.17

11050

BRACKET,AIR FILTER,LH

11050-1510

$35.67

11060

GASKET,AIR FILTER CASE,LH

11060-1736

$14.75

14073

DUCT,AIR FILTER,LH

14073-1658

$41.11

14073A

DUCT

14073-1660

Unavailable

14073B

DUCT,AIR FILTER,RH

14073-1712

$38.01

16126

VALVE,AIR SWITCH

16126-1356

$213.58

39045

DUCT-ASSY

39045-1056

Unavailable

52014

ELBOW

52014-1083

$7.71

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$9.94

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92009A

SCREW,6X14

92009-1288

$2.99

92009B

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.35

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$4.21

92037

CLAMP,TUBE

92037-1076

$7.14

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1712

$3.81

92037C

CLAMP

92037-1859

$6.60

92055

RING-O

92055-1282

$3.98

92059

TUBE,4X9X290

92059-1133

$9.85

92066

PLUG,DRAIN

92066-1211

$6.48

92071A

GROMMET

92071-1233

$12.14

92093

SEAL,AIR FILTER CASE

92093-1408

$11.19

92093A

SEAL,DUCT,LH

92093-1459

$6.69

92093B

SEAL,DUCT,RH

92093-1460

$7.41

92151

BOLT,6X14

92151-1503

Unavailable

92160

DAMPER

92160-1594

$3.57

92170

CLAMP,TUBE

92170-1445

$4.34

92170A

CLAMP

92170-1695

$2.27

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

702

TUBE-RUBBER

702A07260

$8.10

92191

TUBE,HEAD,FR-AIR SWITCH

92191-1050

$24.25

92191A

TUBE,HEAD,RR-AIR SWITCH

92191-1051

$34.39

92191B

TUBE,BREATHER

92191-1054

$20.42

92191C

TUBE,15.5X22.5X20

92191-1089

$2.42

92191D

TUBE,AIR SWITCH-DUCT

92191-1266

$16.20

11011B

CASE-AIR FILTER,LH

11011-1528

Unavailable

11011D

CASE-AIR FILTER,LH

11011-1533

$100.72

92071

GROMMET,AIR FILTER

92071-1114

Unavailable
