2001 Kawasaki Vulcan 1500 Nomad Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

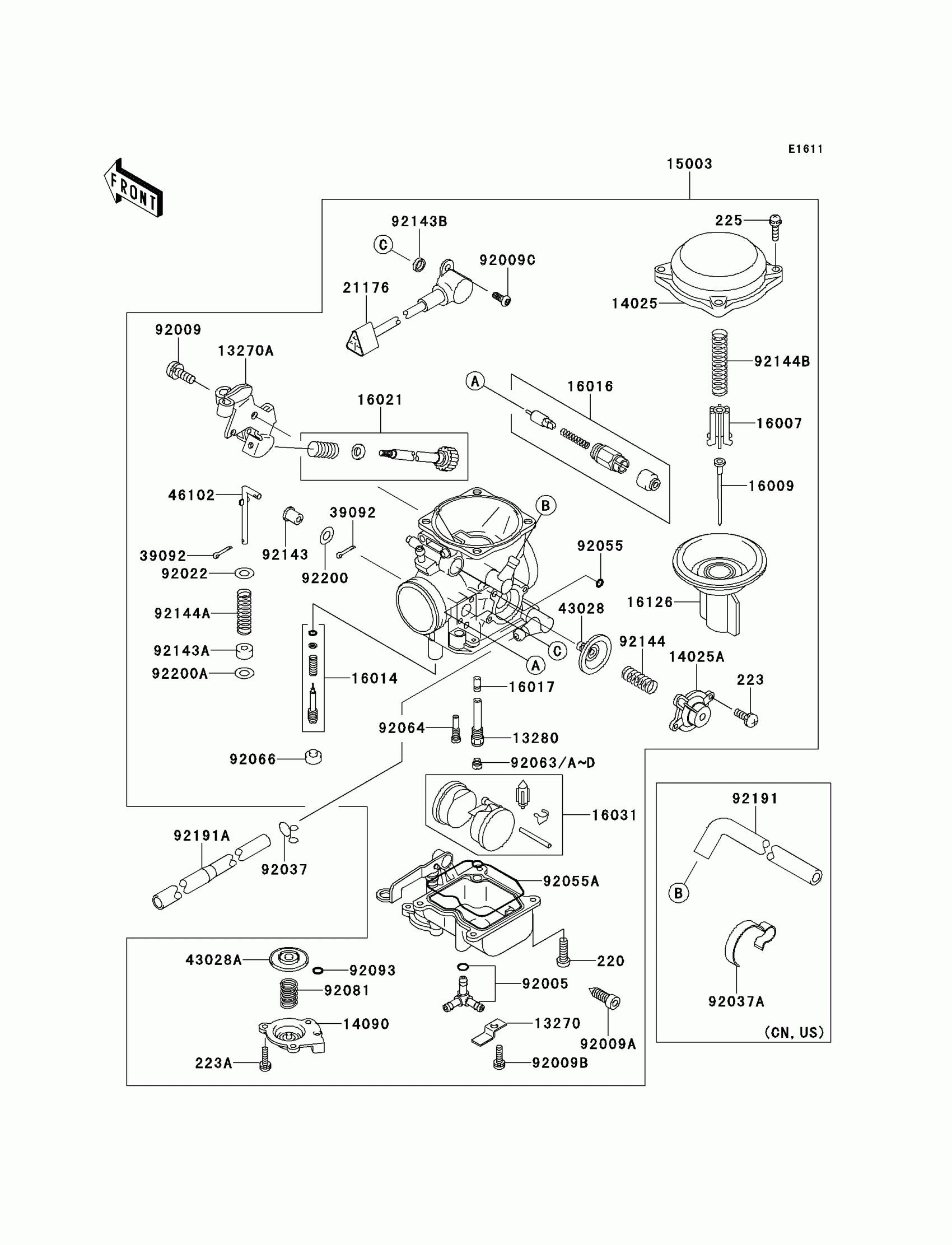

2001 Kawasaki Vulcan 1500 Nomad Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13270

PLATE,FITTING STAY

13270-1286

1
Out of stock

13270A

PLATE

13270-1513

1
Out of stock

13280

HOLDER,NEEDLE JET

13280-1100

1
Out of stock

14025

COVER,MIXING CHAMBER

14025-1890

1
Out of stock

14025A

COVER,AIR CUT VALVE

14025-1903

1
Out of stock

14090

COVER,ACCELERATOR

14090-1635

1
Out of stock

15003

CARBURETOR-ASSY

15003-1432

1
Out of stock

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

1
Out of stock

16009

NEEDLE-JET,N2PY

16009-1941

1
Out of stock

16014

SCREW-PILOT AIR

16014-1082

1
Out of stock

16016

PLUNGER

16016-1087

1
Out of stock

16017

JET-NEEDLE,01B38

16017-1276

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1219

1
Out of stock

16031

FLOAT

16031-1090

1
Out of stock

16126

VALVE,VACUUM

16126-1325

1
Out of stock

21176

SENSOR

21176-1078

1
Out of stock

39092

PIN-HAIR

39092-1058

1
Out of stock

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

1
Out of stock

43028A

DIAPHRAGM

43028-1077

1
Out of stock

46102

ROD,ACCELERATOR PUMP

46102-1400

1
Out of stock

92005

FITTING

92005-1350

1
Out of stock

92009

SCREW,5X10

92009-1365

1
Out of stock

92009A

SCREW,DRAIN,M6X0.75

92009-1551

1
Out of stock

92009B

SCREW,4X8

92009-1704

1
Out of stock

92009C

SCREW

92009-1781

1
Out of stock

92022

WASHER,PLAIN,STOP SPRING

92022-1480

1
Out of stock

92037

CLAMP,TUBE

92037-1531

1
Out of stock

92055

RING-O

92055-1245

1
Out of stock

92055A

RING-O,FLOAT CHAMBER

92055-1518

1
Out of stock

92063

JET-MAIN,#140

92063-1013

1
Out of stock

92063A

JET-MAIN,#138

92063-1015

1
Out of stock

92063B

JET-MAIN,#142

92063-1016

1
Out of stock

92063C

JET-MAIN,#145

92063-1017

1
Out of stock

92063D

JET-MAIN,#148

92063-1324

1
Out of stock

220

SCREW-PAN-CROS,4X14

220D0414

1
Out of stock

223

SCREW-PAN-WS-CROS,4X8

223D0408

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X18

225C0418

1
Out of stock

92064

JET-PILOT,#45

92064-1177

1
Out of stock

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

1
Out of stock

92081

SPRING,DIAPHRAGM

92081-1092

1
Out of stock

92093

SEAL-"U"RING

92093-1046

1
Out of stock

92143

COLLAR

92143-1790

1
Out of stock

92143A

COLLAR

92143-1791

1
Out of stock

92143B

COLLAR

92143-1907

1
Out of stock

92144

SPRING

92144-1885

1
Out of stock

92144A

SPRING

92144-1886

1
Out of stock

92144B

SPRING,VACUUM VALVE

92144-1947

1
Out of stock

92191A

TUBE,FUEL

92191-1261

1
Out of stock

92200

WASHER

92200-1274

1
Out of stock

92200A

WASHER

92200-1275

1
Out of stock

92037A

CLAMP,HOSE

92037-1552

1
Out of stock

92191

TUBE,AIR VENT

92191-1090

1
Out of stock
