1997 Kawasaki Vulcan 1500 L Valve Diagram

← All diagrams

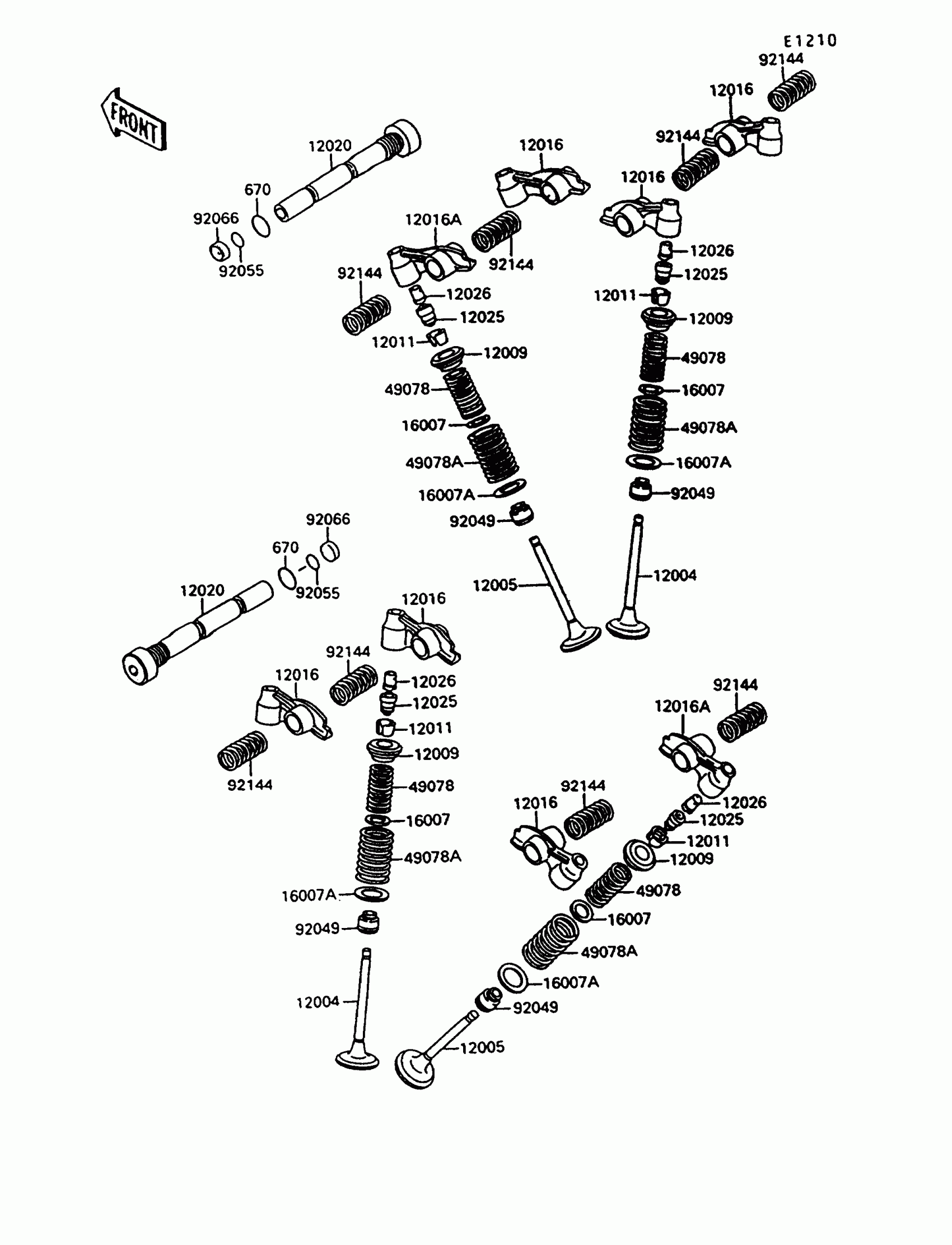

Find the part on the Valve diagram for your 1997 Kawasaki Vulcan 1500 L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki Vulcan 1500 L Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,20MM

670B2020

1
Out of stock

12004

VALVE-INTAKE

12004-1072

1
Out of stock

12005

VALVE-EXHAUST

12005-1090

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-005

1
Out of stock

12011

COLLET,RETAINER

12011-004

1
Out of stock

12016

ARM-ROCKER

12016-1079

1
Out of stock

12016A

ARM-ROCKER

12016-1080

1
Out of stock

12020

SHAFT-ROCKER

12020-1061

1
Out of stock

12025

ADJUSTER-LASH

12025-1053

1
Out of stock

12026

CHAMBER,OIL

12026-1001

1
Out of stock

16007

SEAT-SPRING,12X20X0.5

16007-1031

1
Out of stock

16007A

SEAT-SPRING,21X29.5X0.5

16007-1137

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1084

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1085

1
Out of stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock

92055

RING-O,12X1.5

92055-025

1
Out of stock

92066

PLUG

92066-1198

1
Out of stock

92144

SPRING,ROCKER ARM

92144-1221

1
Out of stock
