1997 Kawasaki Vulcan 1500 L Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1997 Kawasaki Vulcan 1500 L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

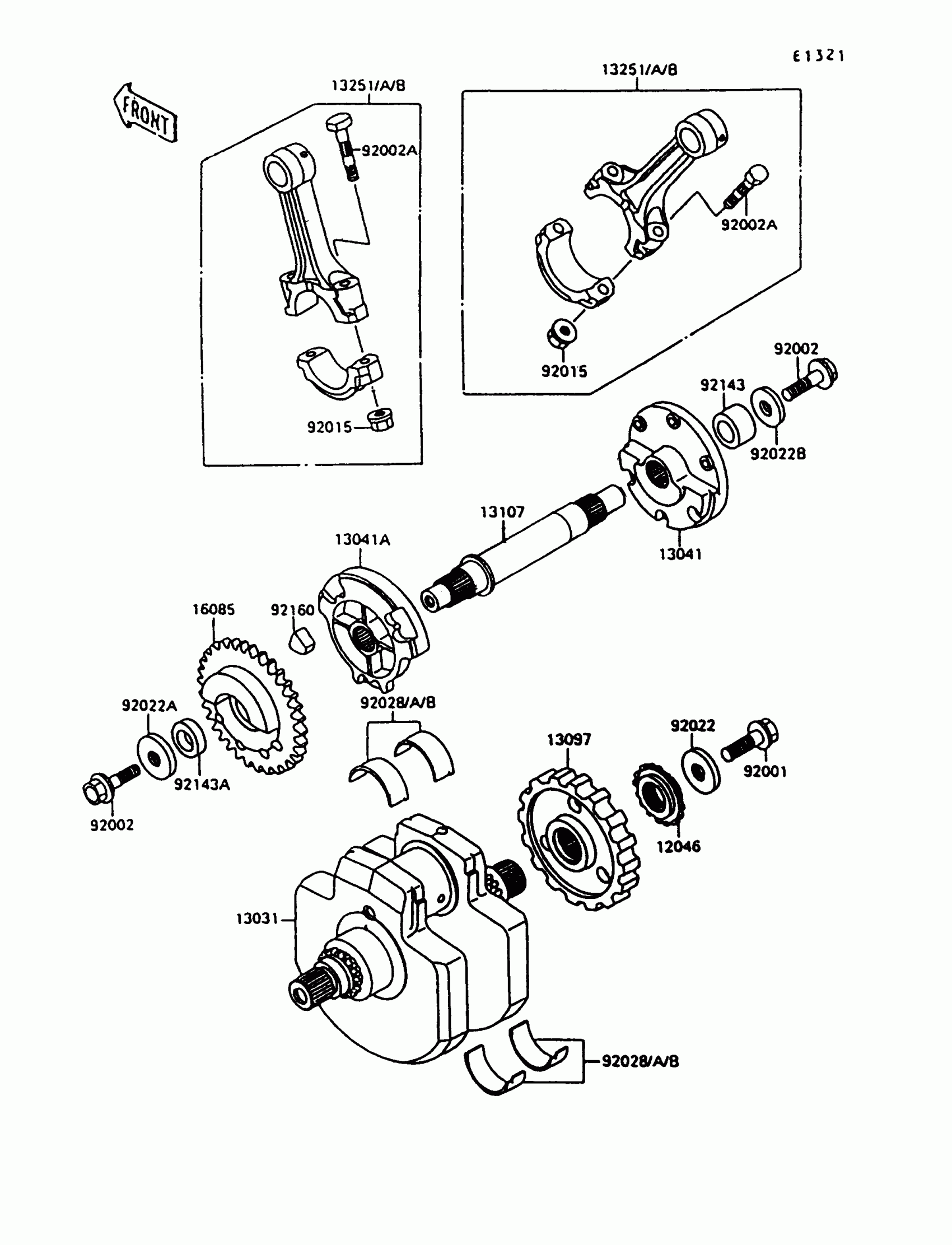

1997 Kawasaki Vulcan 1500 L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,WATER PUMP

12046-1103

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1242

1
Out of stock

13041

BALANCER,RH

13041-1089

1
Out of stock

13041A

BALANCER,LH

13041-1093

1
Out of stock

13097

GEAR-PRIMARY SPUR,56T

13097-1202

1
Out of stock

13107

SHAFT,BALANCER

13107-1195

1
Out of stock

13251

ROD-ASSY-CONNECTING,F

13251-1080-FF

1
Out of stock

13251A

ROD-ASSY-CONNECTING,G

13251-1080-GG

1
Out of stock

13251B

ROD-ASSY-CONNECTING,H

13251-1080-HH

1
Out of stock

16085

GEAR,BALANCER

16085-1215

1
Out of stock

92001

BOLT,FLANGED,12X40

92001-1146

1
Out of stock

92002

BOLT,FLANGED,10X40

92002-1296

1
Out of stock

92002A

BOLT,CONNECTING ROD

92002-1896

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1643

1
Out of stock

92022

WASHER,12X40X6

92022-1904

1
Out of stock

92022A

WASHER,10X40X6

92022-1905

1
Out of stock

92022B

WASHER,10X33X6

92022-1906

1
Out of stock

92028

BUSHING,CONNECTING ROD,BLUE

92028-1474

—
Out of stock

92028A

BUSHING,CONNECTING ROD,BLACK

92028-1475

—
Out of stock

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1476

—
Out of stock

92143

COLLAR,20X30X24

92143-1093

1
Out of stock

92143A

COLLAR,20X31X10

92143-1126

1
Out of stock

92160

DAMPER

92160-1024

1
Out of stock
