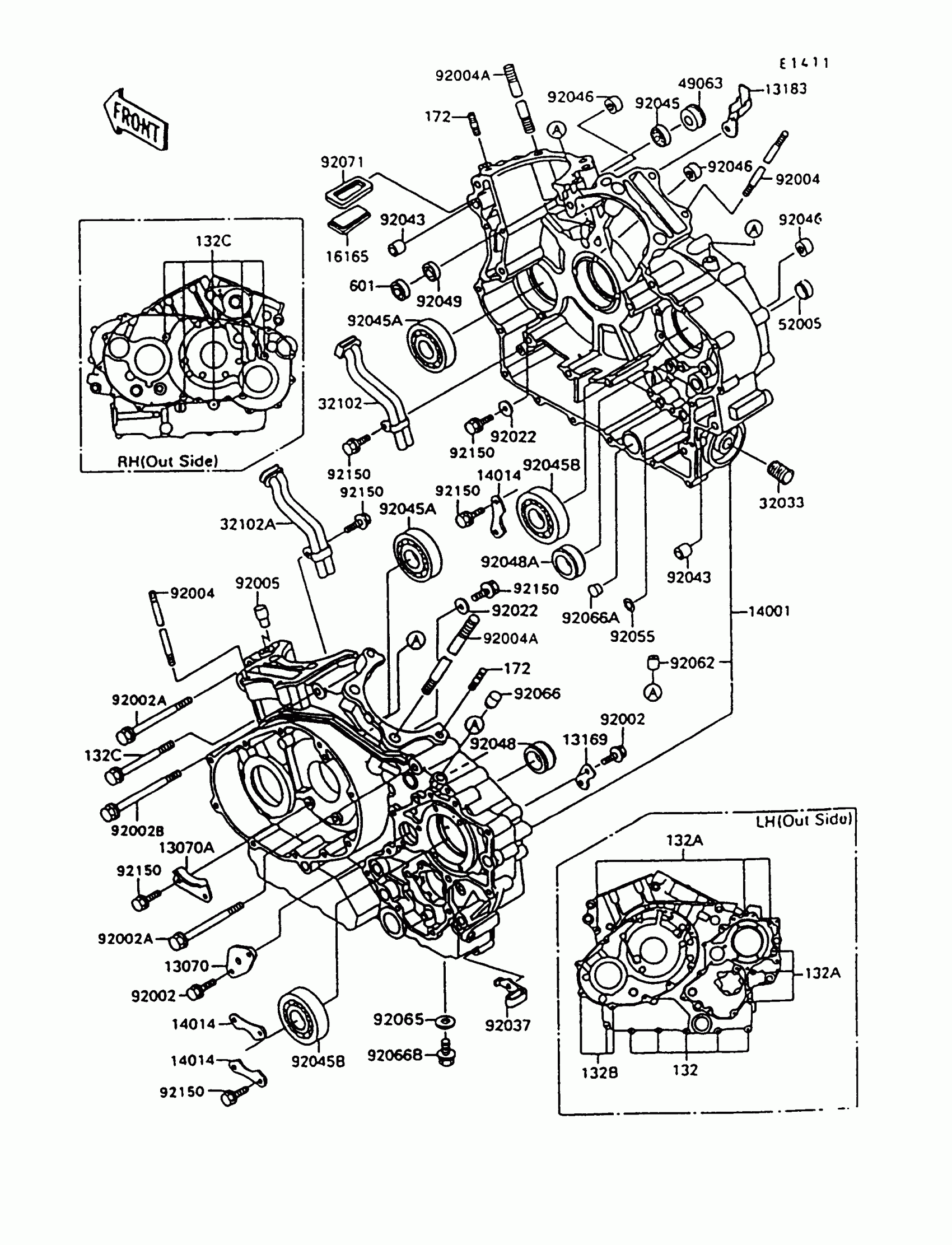

Kawasaki Vulcan 1500 L Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132E0640

Unavailable

132A

BOLT-FLANGED-SMALL

132E0670

Unavailable

132B

BOLT-FLANGED-SMALL

132E0680

$5.10

132C

BOLT-FLANGED-SMALL

132E0890

Unavailable

13070

GUIDE,PUSH ROD

13070-1167

$24.37

13070A

GUIDE,CAM CHAIN

13070-1168

$4.98

13169

PLATE,GEAR CHANGE DRUM

13169-014

$4.90

13183

PLATE

13183-1145

Unavailable

14001

SET-CRANKCASE

14001-5232

Unavailable

14014

PLATE-POSITION

14014-1084

$5.63

16165

SEPARATOR

16165-1058

$31.98

32033

PIPE,OIL FILTER

32033-1535

$9.85

32102

PIPE

32102-1407

Unavailable

32102A

PIPE

32102-1708

$45.94

49063

SEAL-MECHANICAL

49063-1052

$43.41

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92002

BOLT,6X16

92002-1439

$3.57

92002A

BOLT,10X105

92002-1897

Unavailable

92002B

BOLT,10X115

92002-1898

Unavailable

92004

STUD,8X231

92004-1174

$12.86

92004A

STUD,12X250

92004-1225

$28.07

92005

FITTING

92005-1155

$9.08

92022

WASHER,6X19.5X2

92022-1517

$1.90

92037

CLAMP

92037-1925

Unavailable

92043

PIN,11X14X12.3

92043-1266

$0.86

92045

BEARING-BALL,6001JRXLLU/5K

92045-1151

$22.11

92045A

BEARING-BALL,63/28

92045-1189

$48.89

92045B

BEARING-BALL,6306SH2

92045-1190

$36.30

92046

BEARING-NEEDLE,HK1212

92046-1163

$14.37

92048

RACE

92048-1069

$38.30

92048A

RACE

92048-1070

Unavailable

92049

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92055

RING-O,13.2X2.4

92055-1373

$3.59

92062

NOZZLE,6X8,GREEN

92062-1078

$4.17

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG

92066-1110

$5.66

92066B

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92071

GROMMET,SEPARATOR

92071-1153

$8.83

92150

BOLT,6X12

92150-1868

$2.66

172

BOLT-STUD,8X25

172G0825

$2.46

601

BEARING-BALL

601A6001

$8.88
