1997 Kawasaki Vulcan 1500 L Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1997 Kawasaki Vulcan 1500 L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

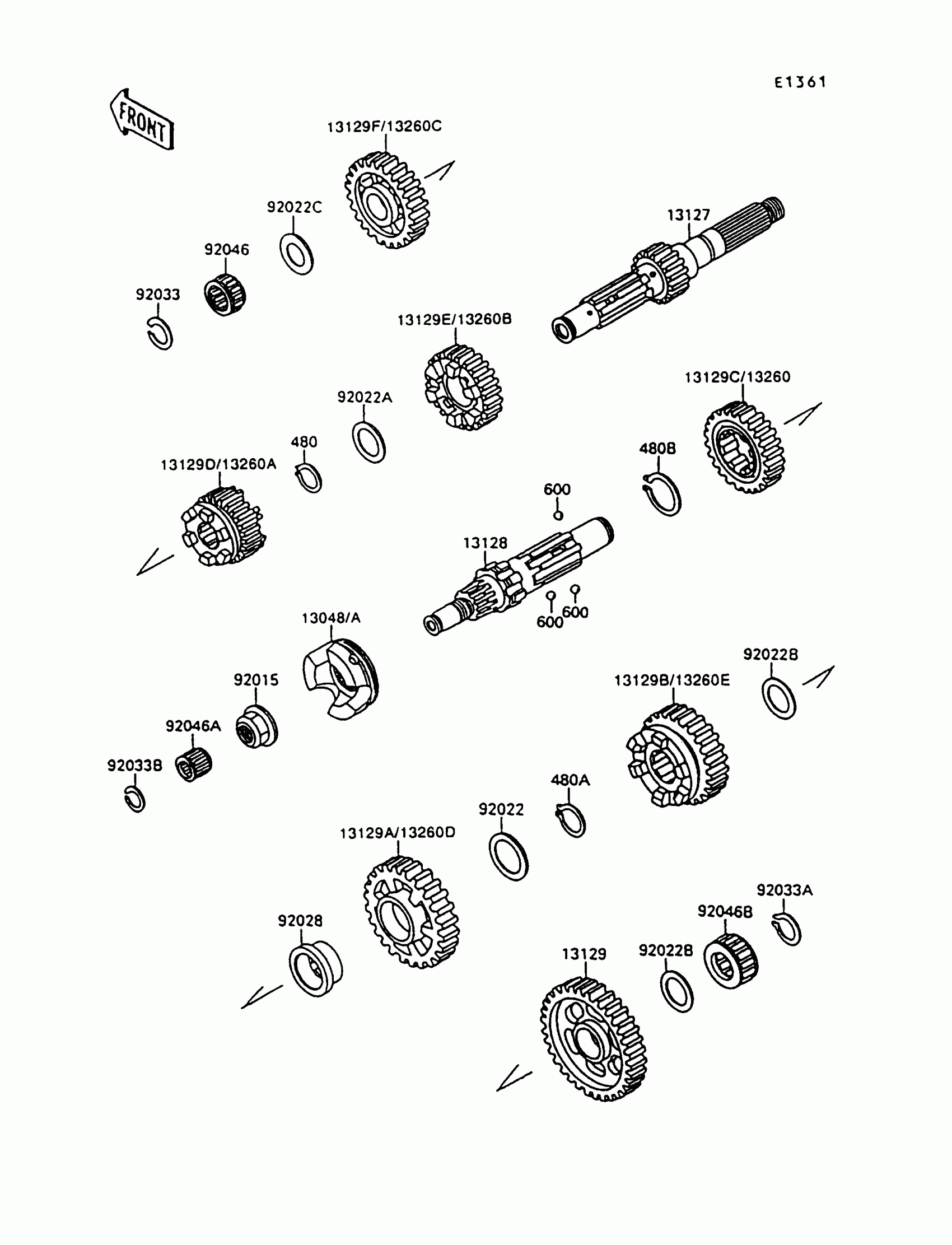

1997 Kawasaki Vulcan 1500 L Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

480A

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

480B

CIRCLIP

480J4000

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock

13048A

CAM-DAMPER

13048-1082

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT,16T

13127-1155

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1144

1
Out of stock

13129

GEAR,OUTPUT LOW,40T

13129-1842

1
Out of stock

92015

NUT,20MM

92015-1610

1
Out of stock

92022

WASHER,32X40X1.6

92022-1693

1
Out of stock

92022A

WASHER,INPUT,3RD,LH

92022-1854

1
Out of stock

92022B

WASHER,25.5X36X1.0

92022-1855

1
Out of stock

92022C

WASHER,22.3X35X1.6

92022-212

1
Out of stock

92028

BUSHING,OUTPUT,2ND

92028-1478

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92033A

RING-SNAP,25MM

92033-1172

1
Out of stock

92033B

RING-SNAP

92033-1208

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92046A

BEARING-NEEDLE,K182420V1

92046-1154

1
Out of stock

92046B

BEARING-NEEDLE,RS25/18

92046-1166

1
Out of stock

13260

GEAR,OUTPUT 4TH,25T

13260-1584

1
Out of stock

13260A

GEAR,INPUT 2ND,24T

13260-1586

1
Out of stock

13260B

GEAR,INPUT 3RD,28T

13260-1587

1
Out of stock

13260C

GEAR,INPUT 4TH,32T

13260-1588

1
Out of stock

13260D

GEAR,OUTPUT 2ND,33T

13260-1652

1
Out of stock

13260E

GEAR,OUTPUT 3RD,29T

13260-1653

1
Out of stock
