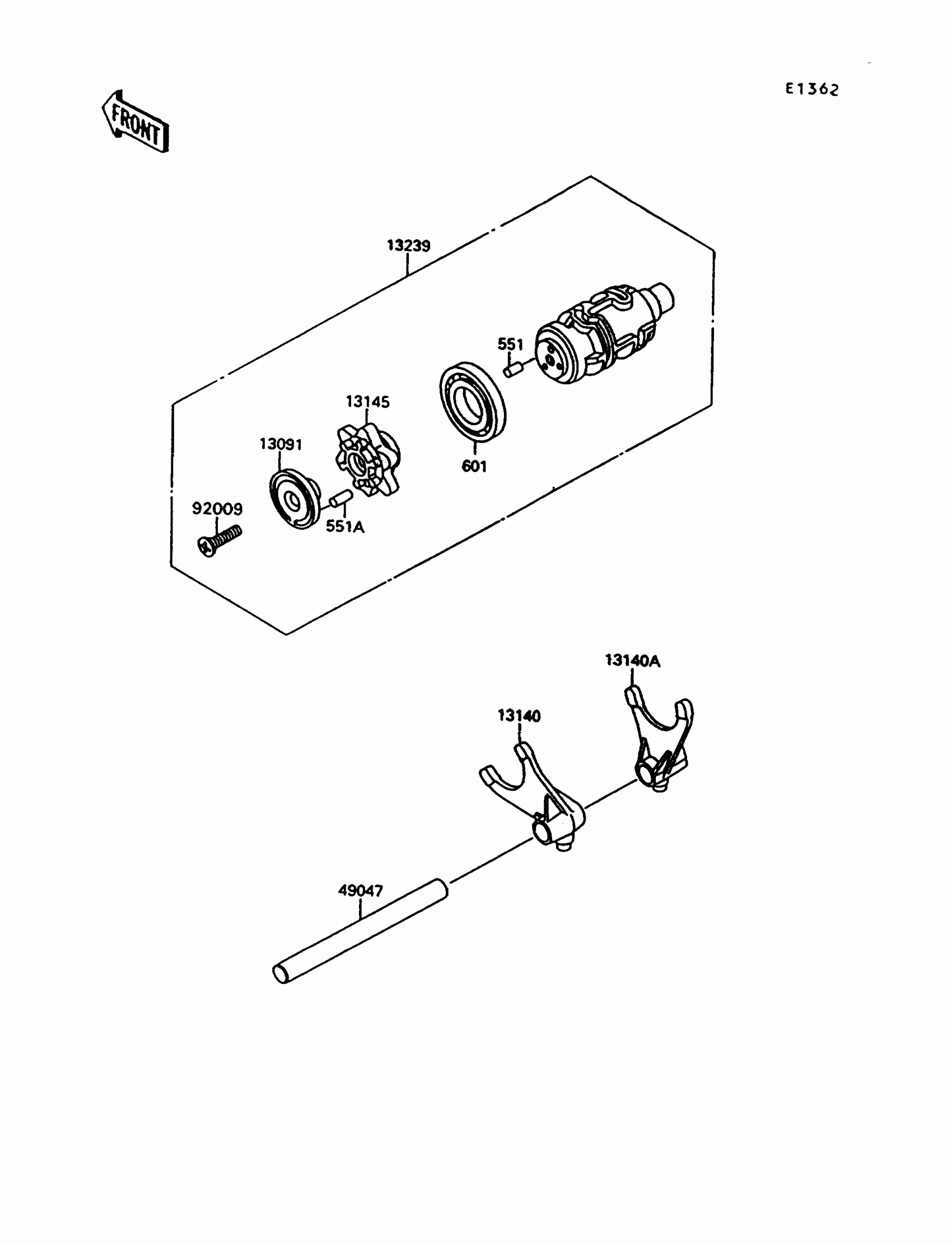

Kawasaki Vulcan 1500 L Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

551

PIN-DOWEL,4X8

551A0408

$0.68

551A

PIN-DOWEL

551A0412

$1.39

601

BEARING-BALL

601A6005

$10.48

13091

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

13140

FORK-SHIFT,INPUT,2ND

13140-1155

$127.17

13140A

FORK-SHIFT,OUTPUT,3RD

13140-1258

$113.92

13145

CAM-CHANGE DRUM

13145-1062

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1141

$226.02

49047

ROD-SHIFT

49047-1062

$30.00

92009

SCREW,6X45

92009-1599

$3.03
