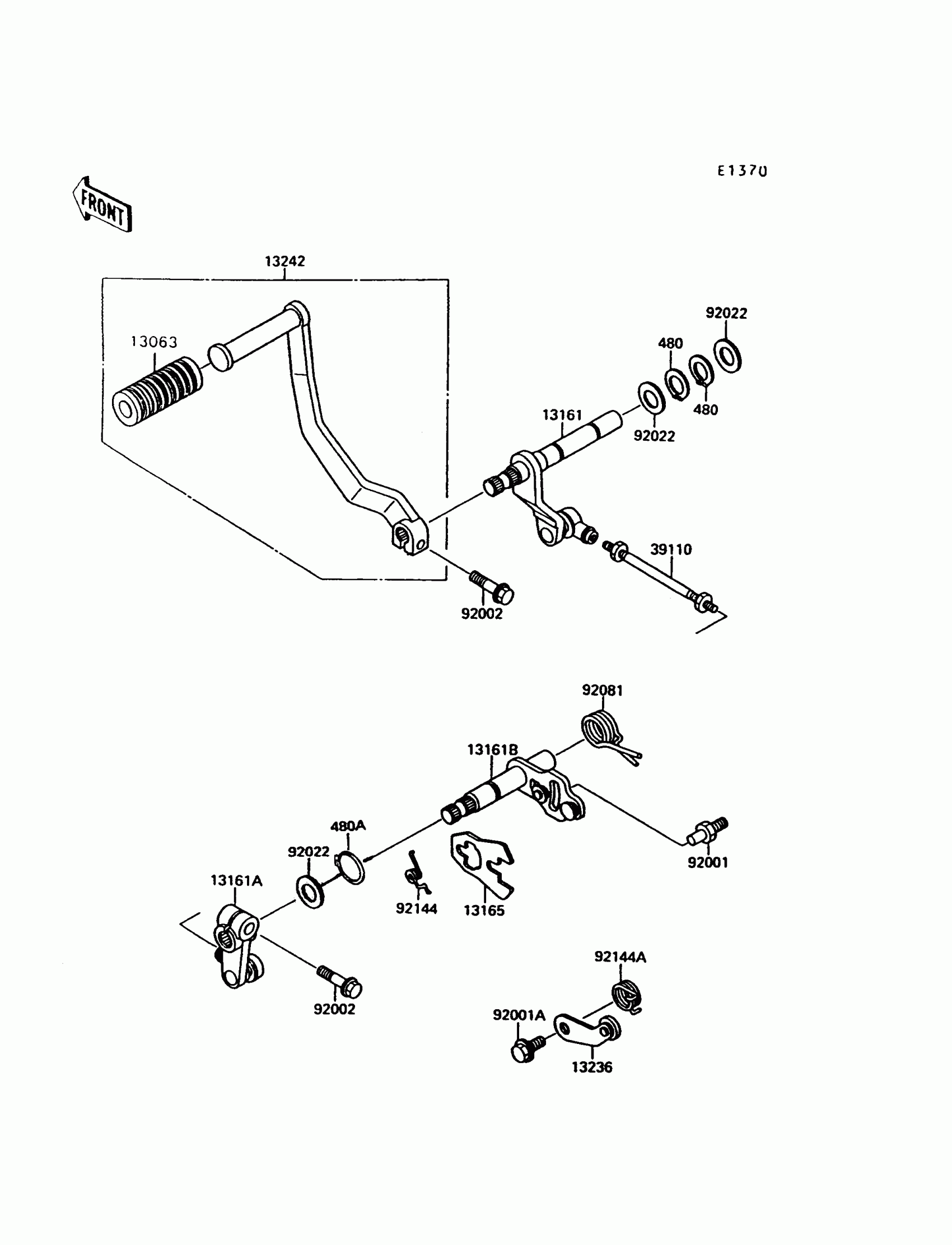

Kawasaki Vulcan 1500 L Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

480A

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13063

DAMPER,PEDAL

13063-002

$3.44

13161

LEVER-COMP-CHANGE SHAFT,FR

13161-1141

Unavailable

13161A

LEVER-COMP-CHANGE SHAFT,RR

13161-1142

Unavailable

13161B

LEVER-COMP-CHANGE SHAFT

13161-1150

Unavailable

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,POSITION

13236-1126

$12.95

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1229

Unavailable

39110

ROD-ASSY-TIE

39110-1073

Unavailable

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92001A

BOLT,FLANGED,6X14

92001-1715

$10.25

92002

BOLT,6X20

92002-1237

$3.29

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$9.85

92144

SPRING

92144-1029

$5.93

92144A

SPRING,RETURN

92144-1140

$8.85
