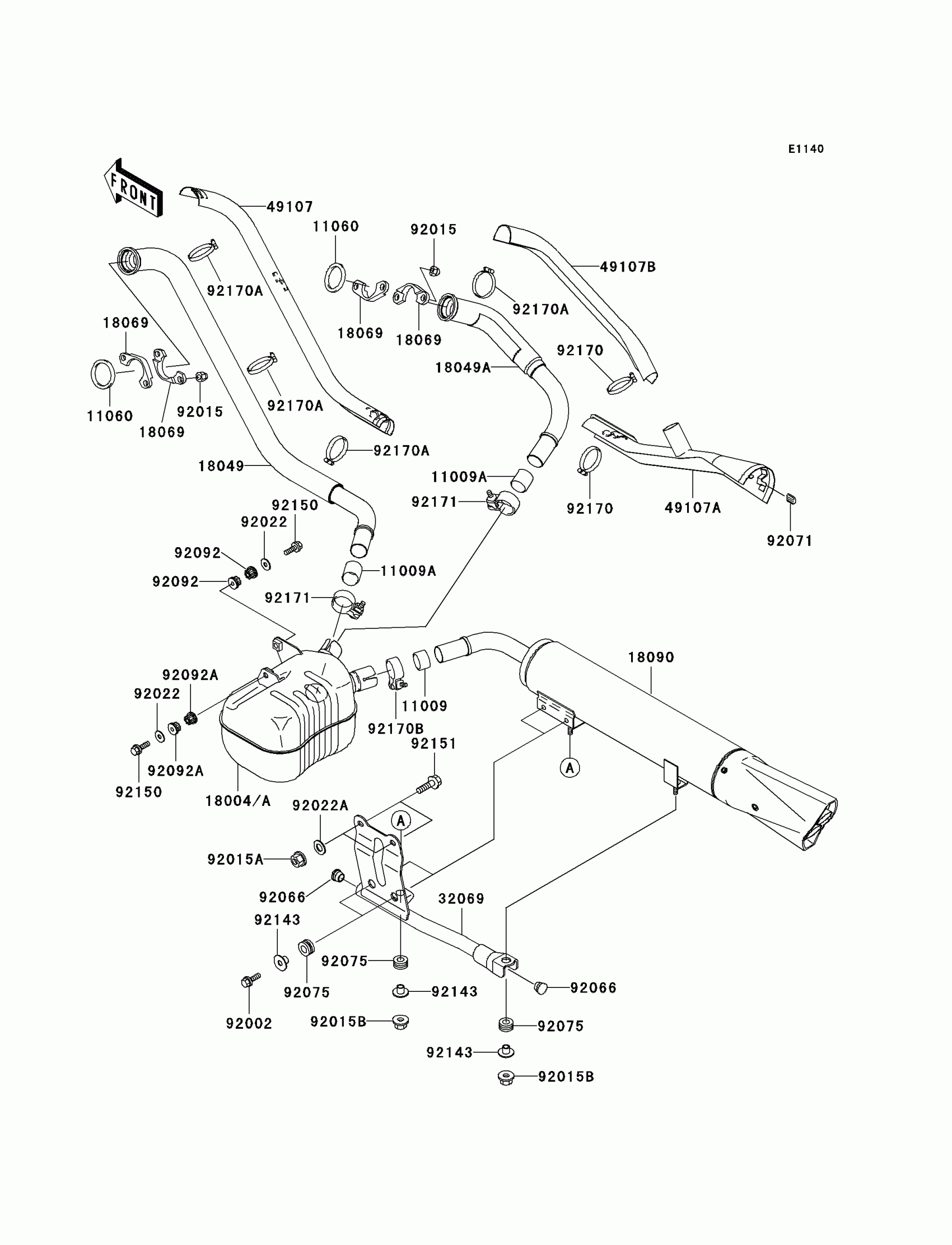

Kawasaki Vulcan 1500 Drifter Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$28.56

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$18.50

11060

GASKET,EXHAUST PIPE

11060-1119

$7.30

18049

PIPE-EXHAUST,FR

18049-1906

$500.82

18049A

PIPE-EXHAUST,RR

18049-1907

$268.77

18069

HOLDER-EXHAUST PIPE

18069-1156

Unavailable

18090

BODY-COMP-MUFFLER

18090-1723

$946.49

32069

BRACKET-MUFFLER

32069-1590

$92.86

49107

COVER-EXHAUST PIPE,FRONT

49107-1169

$229.90

49107A

COVER-EXHAUST PIPE,FR

49107-1170

$325.25

49107B

COVER-EXHAUST PIPE,RR

49107-1171

$226.28

92002

BOLT,8X25

92002-1591

$3.81

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92015B

NUT,8MM

92015-1402

$3.57

92022

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.42

92022A

WASHER,8.2X18X1.5

92022-1964

$3.19

92066

PLUG

92066-1520

$7.24

92071

GROMMET

92071-1226

$4.84

92075

DAMPER

92075-1898

$3.57

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15

92092A

BUSHING-RUBBER

92092-1081

$20.13

92143

COLLAR

92143-1753

$5.99

92150

BOLT,10X55

92150-1749

$7.56

92151

BOLT,8X35

92151-1580

$2.25

92170

CLAMP

92170-1934

$6.08

92170A

CLAMP

92170-1964

$9.42

92170B

CLAMP

92170-1994

Unavailable

92171

CLAMP

92171-1152

$22.90

18004

CHAMBER-PREMUFFLER

18004-1082

$1,104.45

18004A

CHAMBER-PREMUFFLER

18004-1084

$784.41
