2000 Kawasaki Vulcan 1500 Drifter Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

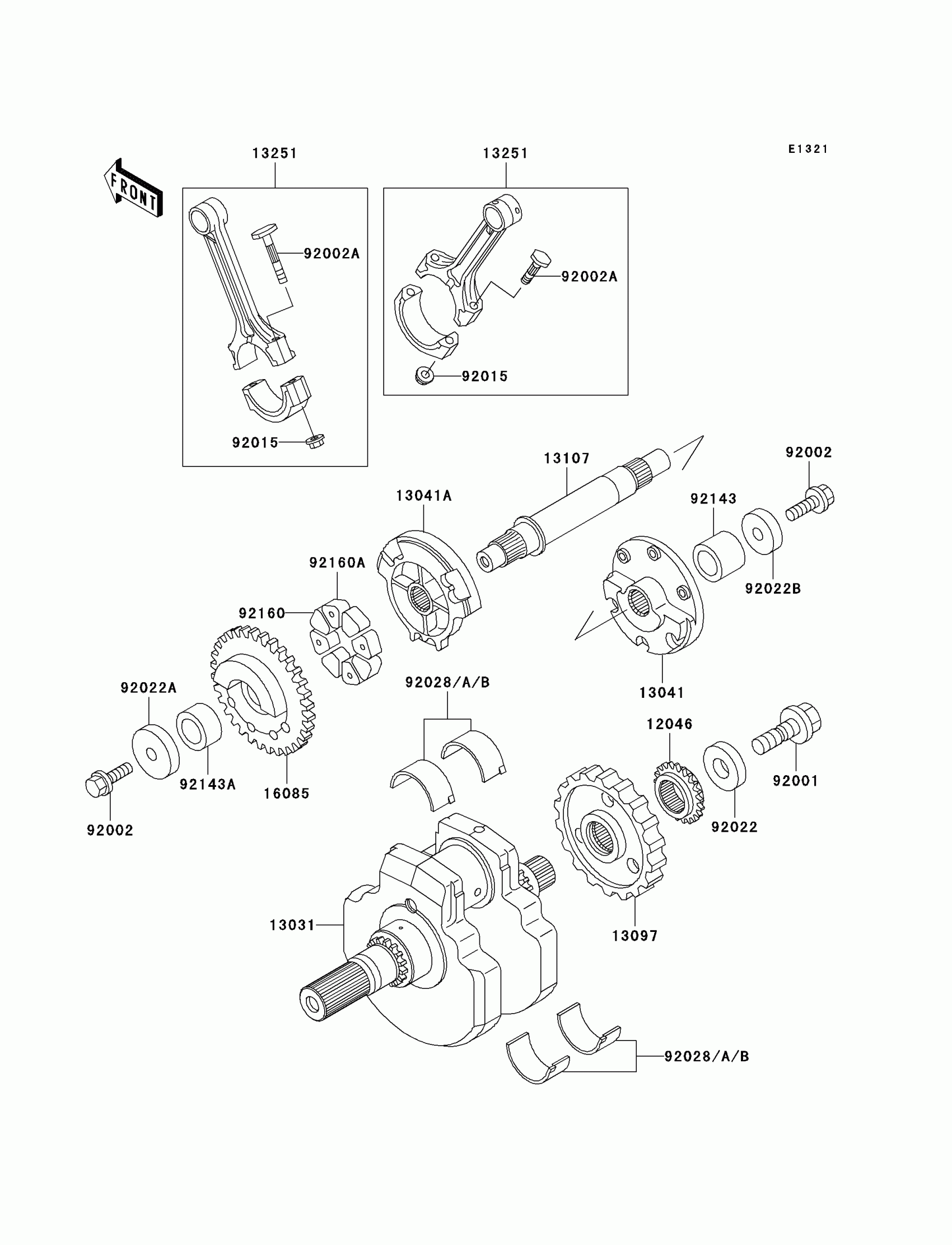

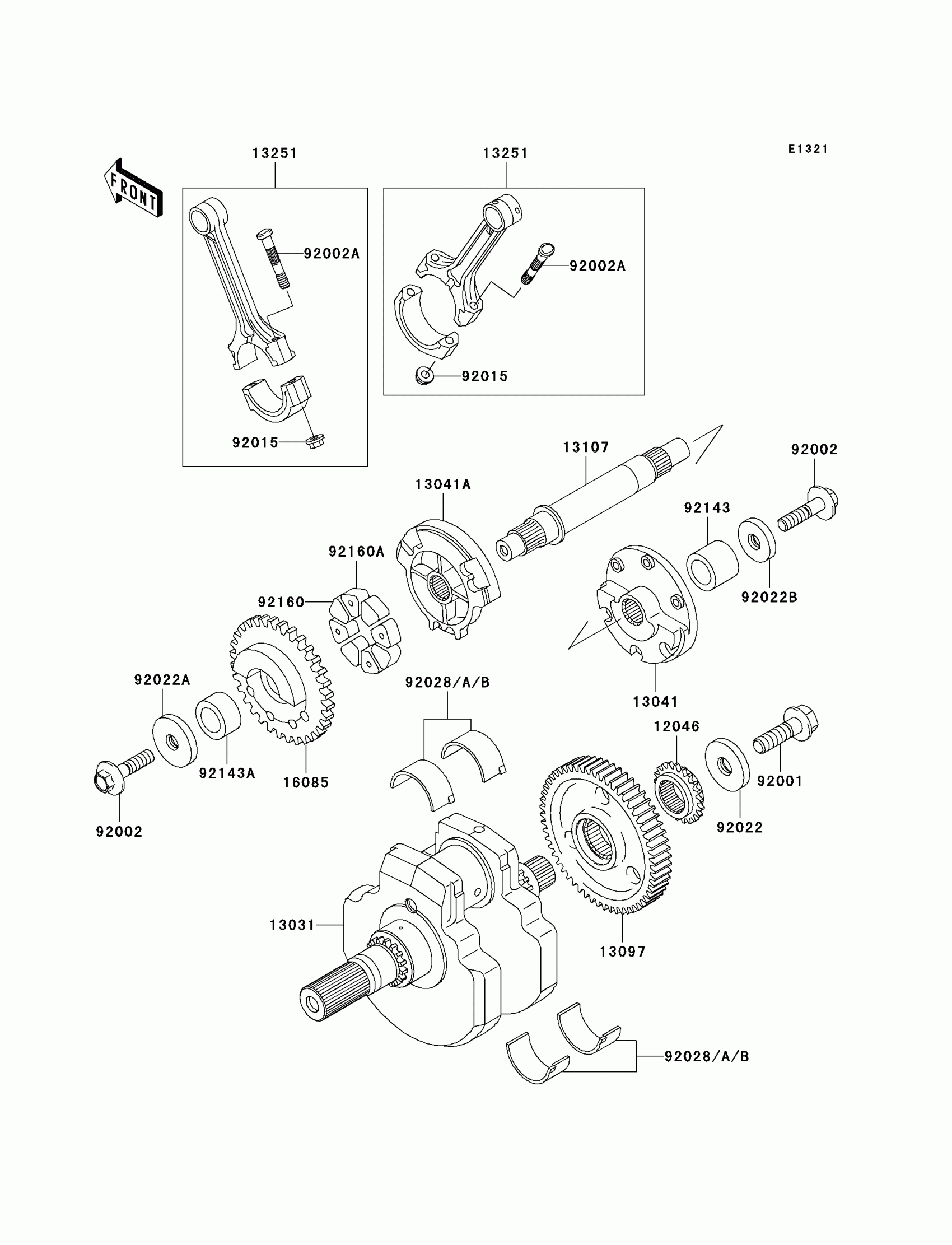

2000 Kawasaki Vulcan 1500 Drifter Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,WATER PUMP

12046-1103

1

$83.44

In stock

13031

CRANKSHAFT-COMP

13031-1457

1

$1,525.79

In stock

13041

BALANCER,RH

13041-1089

1

$171.23

In stock

13041A

BALANCER,LH

13041-1093

1

$211.81

In stock

13097

1

$155.92

In stock

13107

SHAFT,BALANCER

13107-1352

1
Out of stock

13251

ROD-ASSY-CONNECTING,G

13251-1080-GG

1
Out of stock

16085

GEAR,BALANCER

16085-1286

1

$377.57

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92002

BOLT,FLANGED,10X40

92002-1296

1

$8.44

In stock

92002A

BOLT,CONNECTING ROD

92002-1896

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1643

1
Out of stock

92022

WASHER,12X40X6

92022-1904

1
Out of stock

92022A

WASHER,10X40X6

92022-1905

1
Out of stock

92022B

WASHER,10X33X6

92022-1906

1
Out of stock

92028

—

$20.20

In stock

92028A

—

$19.98

In stock

92028B

—

$19.98

In stock

92143

COLLAR,20X30X24

92143-1093

1

$39.39

In stock

92143A

COLLAR,20X31X16

92143-1821

1

$40.67

In stock

92160

DAMPER

92160-1725

1

$7.30

In stock

92160A

DAMPER

92160-1726

1

$7.63

In stock
