2000 Kawasaki Vulcan 1500 Drifter Left Engine Cover Diagram

← All diagrams

Find the part on the Left Engine Cover diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

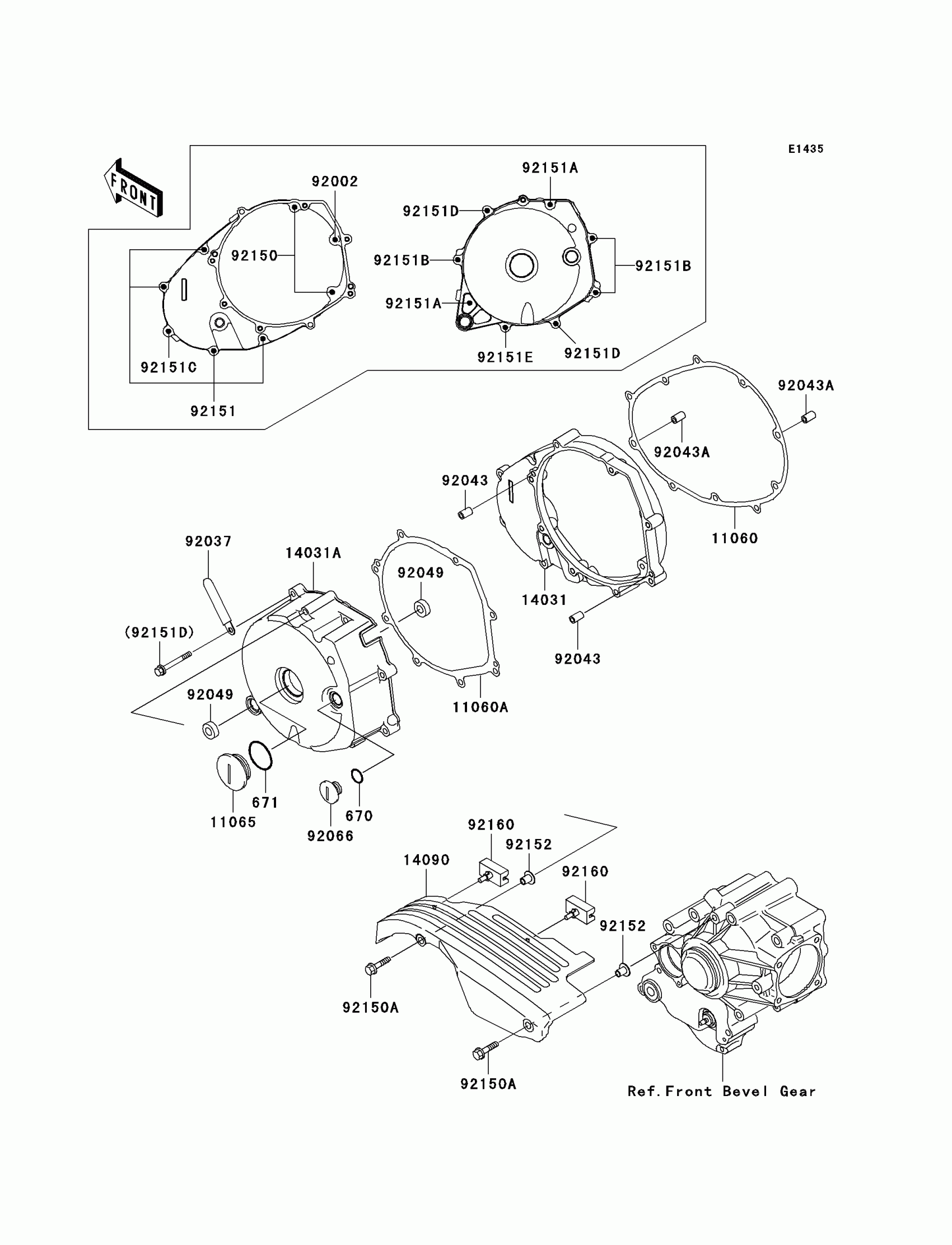

2000 Kawasaki Vulcan 1500 Drifter Left Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock

11060

GASKET,GENERATOR COVER,IN

11060-1838

1
Out of stock

11060A

GASKET,GENERATOR COVER,OUT

11060-1839

1
Out of stock

11065

CAP,GENERATOR

11065-1113

1
Out of stock

14031

COVER-GENERATOR,INNER

14031-1364

1
Out of stock

14031A

COVER-GENERATOR,OUTER

14031-1365

1
Out of stock

14090

COVER

14090-1987

1
Out of stock

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

1
Out of stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92043

PIN,4.2X6X12

92043-1262

1

$3.43

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92049

SEAL-OIL,VB13193

92049-1398

1
Out of stock

92066

PLUG

92066-1482

1

$10.00

In stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92150A

BOLT,6X25

92150-1829

1

$3.43

In stock

92151

BOLT,6X25

92151-1130

1

$2.06

In stock

92151A

BOLT,6X40

92151-1131

1

$3.87

In stock

92151B

BOLT,6X30

92151-1134

1

$1.81

In stock

92151C

BOLT,6X35

92151-1135

1

$3.33

In stock

92151D

BOLT,6X60

92151-1235

1
Out of stock

92151E

BOLT,FLANGED-SMALL,6X20

92151-1252

1
Out of stock

92152

COLLAR

92152-1123

1
Out of stock

92160

DAMPER

92160-1977

1
Out of stock
