2000 Kawasaki Vulcan 1500 Drifter Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

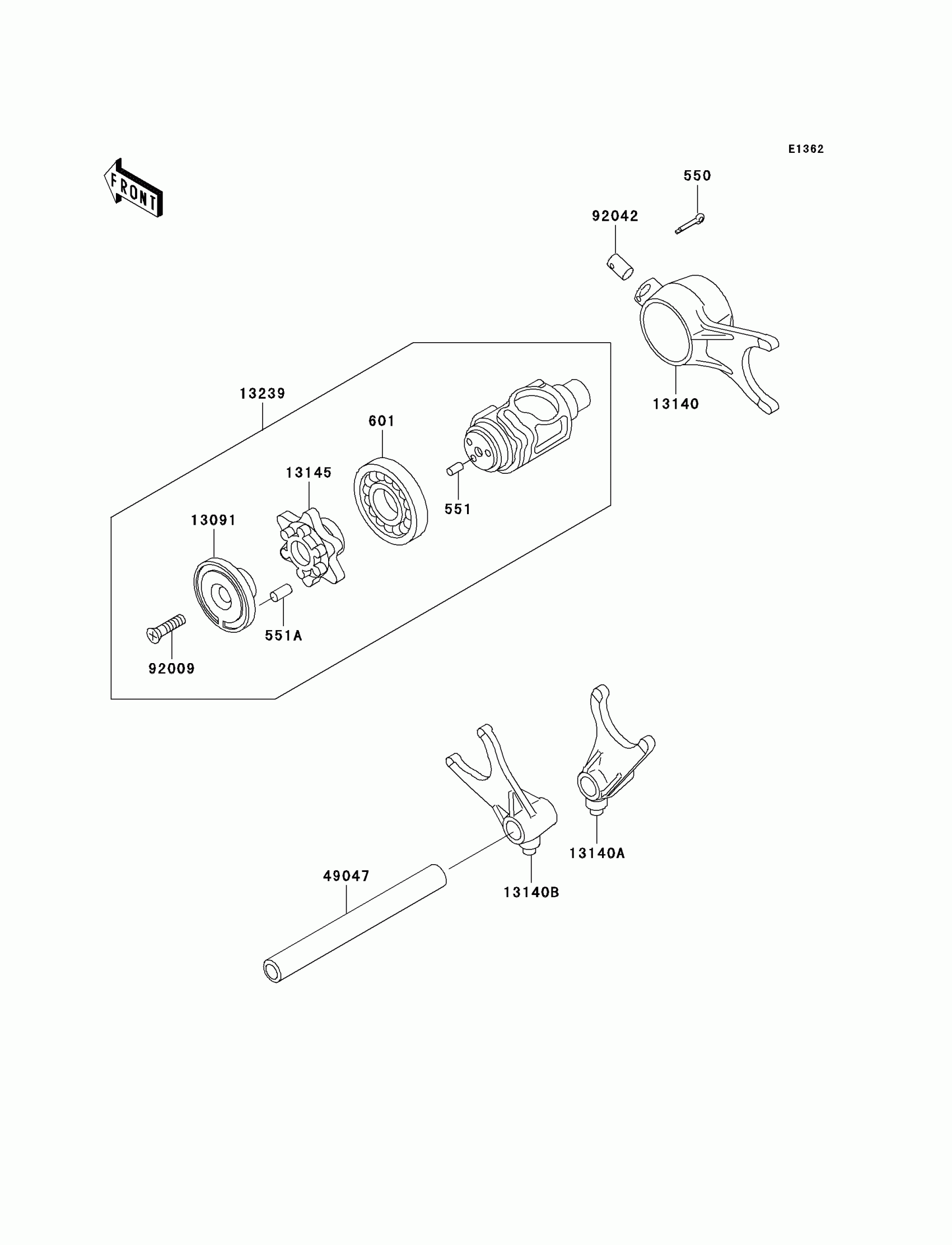

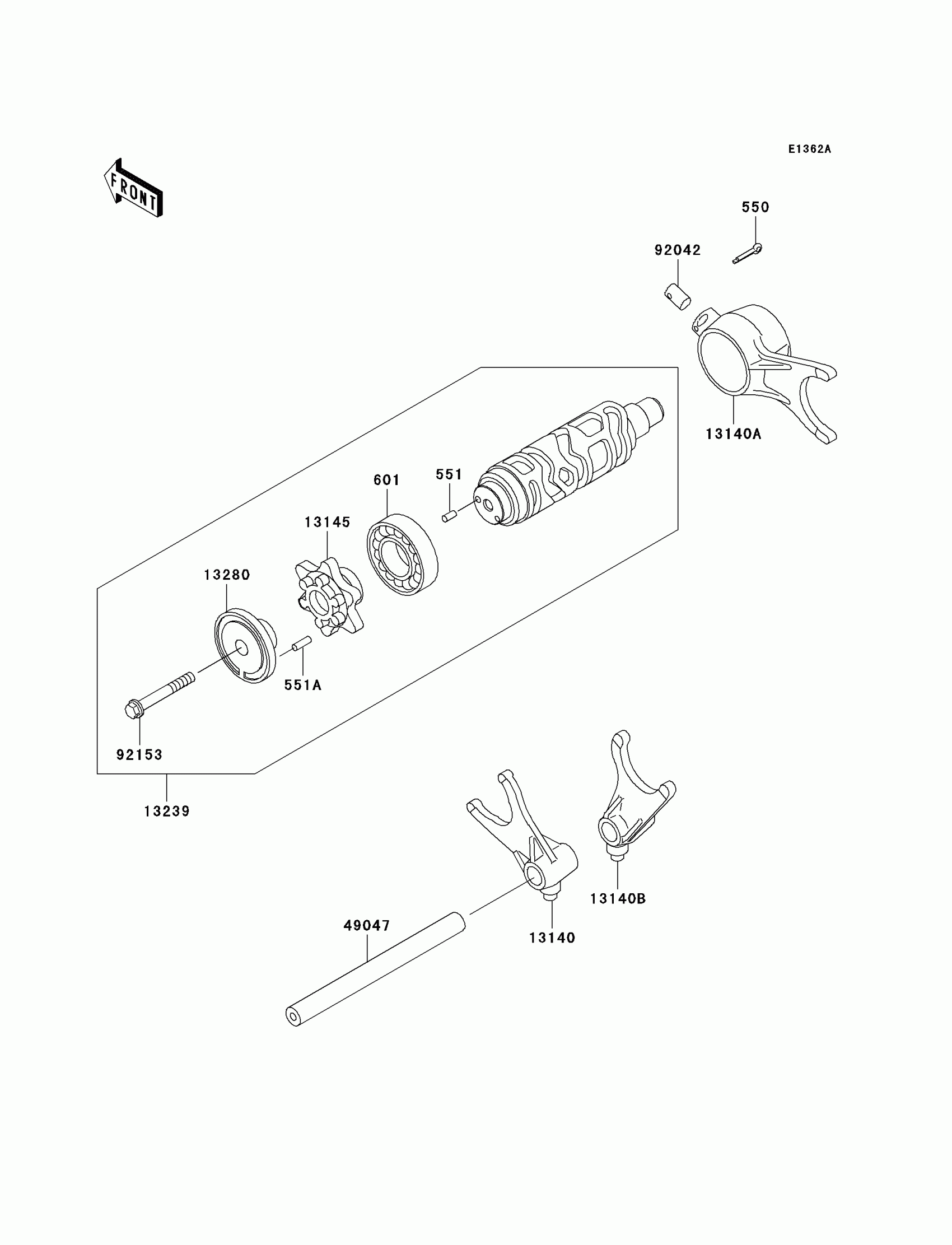

2000 Kawasaki Vulcan 1500 Drifter Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,3.0X20

550D3020

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

551A

PIN-DOWEL

551A0412

1
Out of stock

601

BEARING-BALL

601A6005

1
Out of stock

13091

HOLDER,CHANGE DRUM PIN

13091-1104

1
Out of stock

13140

FORK-SHIFT,INPUT 3RD

13140-1268

1
Out of stock

13140A

FORK-SHIFT,OUTPUT 4TH

13140-1269

1
Out of stock

13140B

FORK-SHIFT,OUTPUT TOP

13140-1270

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1089

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1206

1
Out of stock

49047

ROD-SHIFT

49047-1095

1
Out of stock

92009

SCREW,6X45

92009-1599

1
Out of stock

92042

PIN,DOWEL,8X18

92042-021

1
Out of stock
