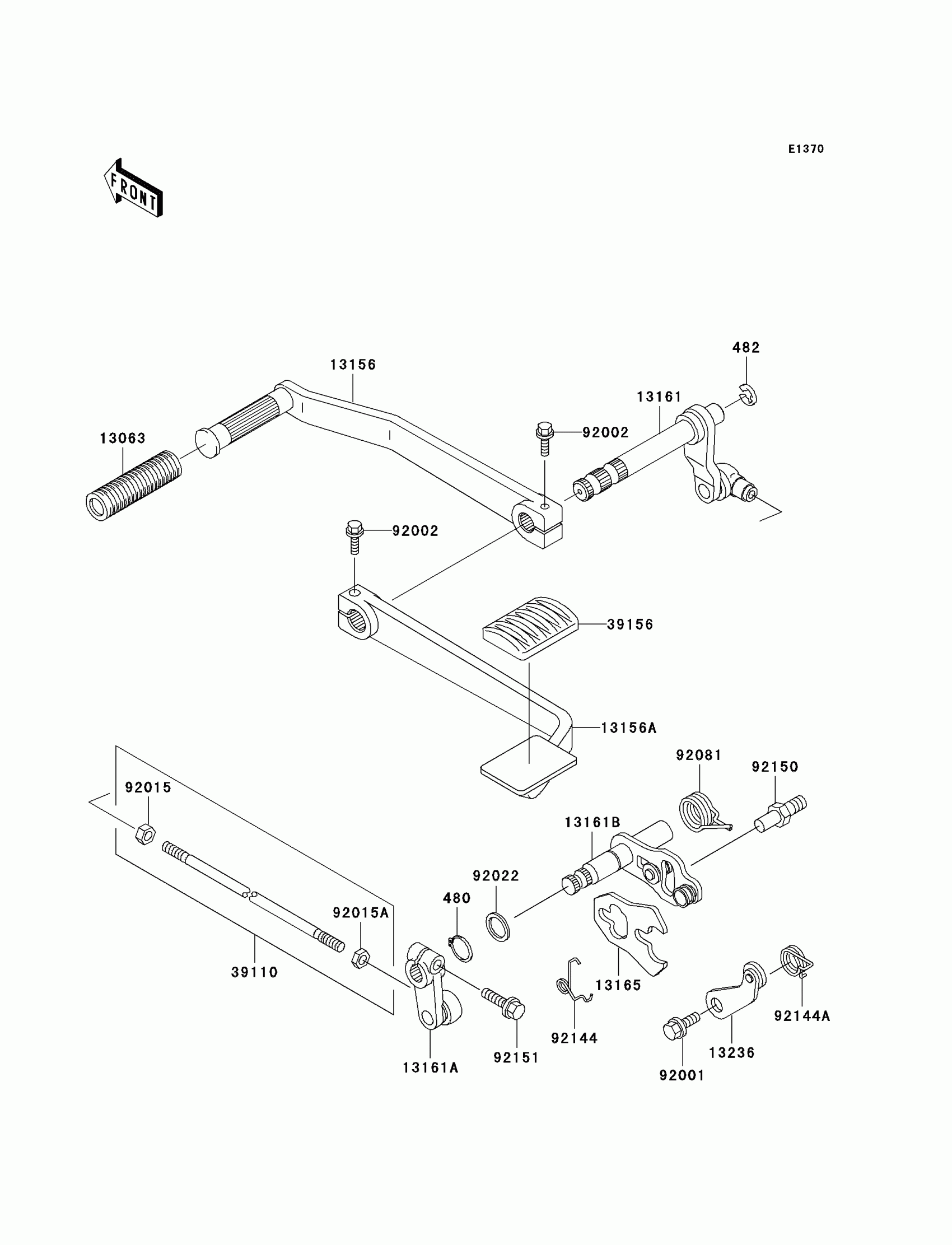

Kawasaki Vulcan 1500 Drifter Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.12

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.98

13063

DAMPER,PEDAL

13063-002

$3.58

13156

LEVER-CHANGE,PEDAL

13156-1439

$84.05

13156A

LEVER-CHANGE,PEDAL

13156-1440

$76.59

13161

LEVER-COMP-CHANGE SHAFT

13161-1248

Unavailable

13161A

LEVER-COMP-CHANGE SHAFT

13161-1253

Unavailable

13161B

LEVER-COMP-CHANGE SHAFT

13161-1254

Unavailable

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,POSITION

13236-1126

$12.95

39110

ROD-ASSY-TIE

39110-1119

$14.56

39156

PAD,BRAKE PEDAL

39156-1071

$9.35

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92002

BOLT,6X25

92002-1875

Unavailable

92015

NUT,6MM

92015-1443

$3.12

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.72

92022

WASHER,13.2X20X0.5

92022-1224

$3.43

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$9.85

92144

SPRING

92144-1029

$6.18

92144A

SPRING,RETURN

92144-1140

$8.85

92150

BOLT,RETURN SPRING

92150-1869

$8.37

92151

BOLT,FLANGED,6X20

92151-1226

$2.03
