2000 Kawasaki Vulcan 1500 Drifter Front Bevel Gear Diagram

← All diagrams

Find the part on the Front Bevel Gear diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

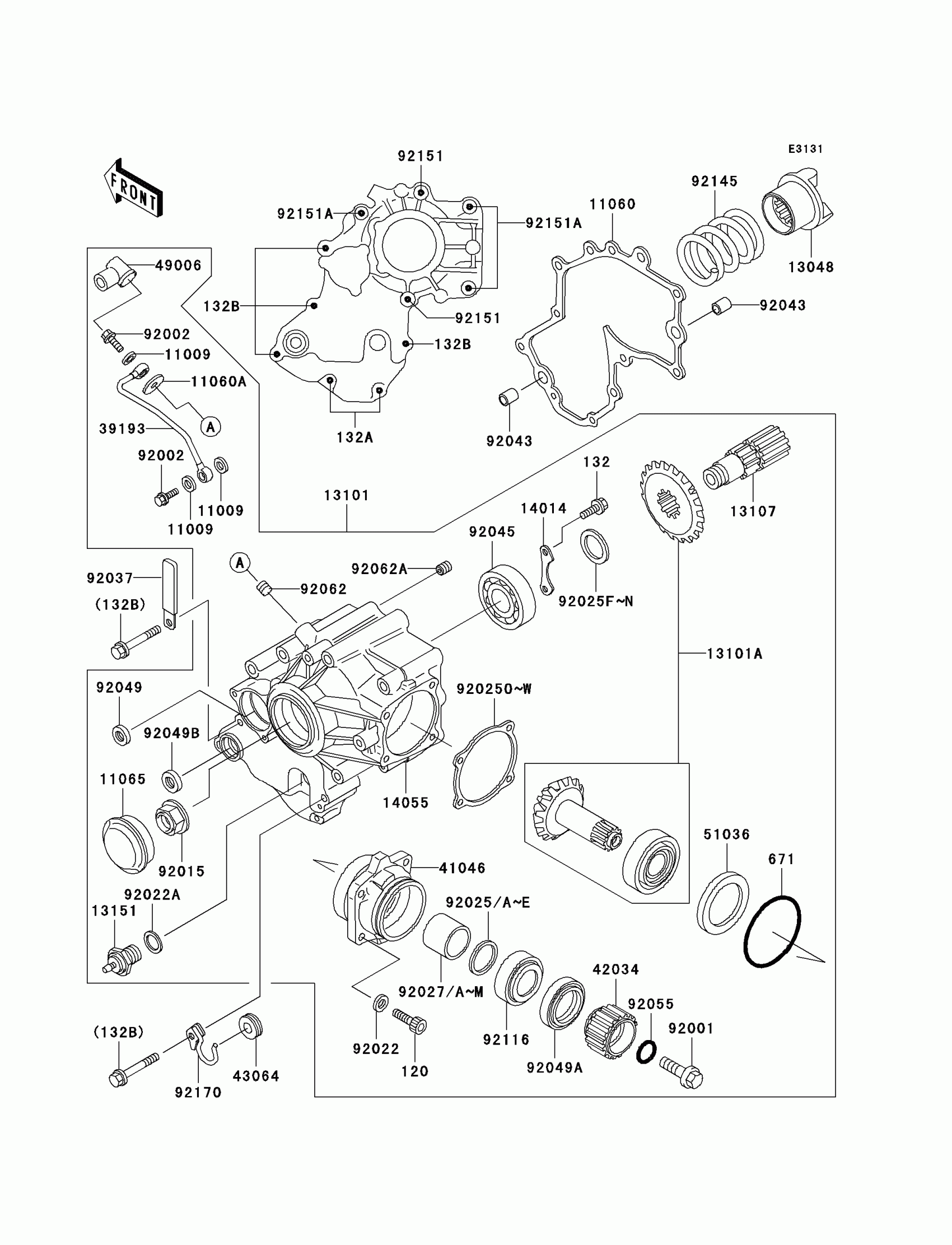

2000 Kawasaki Vulcan 1500 Drifter Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1
Out of stock

11060

GASKET,BEVEL GEAR CASE

11060-1829

1
Out of stock

11060A

GASKET,OIL PIPE,8.2X25X1.0

11060-1872

1
Out of stock

11065

CAP,FRONT GEAR CASE

11065-1131

1
Out of stock

13048

CAM-DAMPER

13048-1085

1
Out of stock

13101

GEAR-ASSY,FRONT BEVEL

13101-1309

1
Out of stock

13101A

GEAR-ASSY,BEVEL,FR

13101-5085

1
Out of stock

13107

SHAFT,BEVEL,FR

13107-1380

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1010

1
Out of stock

14014

PLATE-POSITION

14014-1136

1
Out of stock

14055

CASE-GEAR,FRONT BEVEL

14055-1143

1
Out of stock

39193

PIPE-OIL

39193-1026

1
Out of stock

41046

HOUSING-BEARING

41046-1099

1
Out of stock

42034

COUPLING,FR DRIVEN

42034-1091

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

49006

BOOT,DUST

49006-1040

1
Out of stock

51036

CUP

51036-1002

1
Out of stock

92001

BOLT,FLANGED,12X42

92001-1169

1
Out of stock

92002

BOLT,8X20

92002-1429

1
Out of stock

92015

NUT,24MM

92015-1554

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92022A

WASHER,12X18X1.0

92022-1211

1
Out of stock

92025

SHIM,25.2X29.8X1.70

92025-1072

—
Out of stock

92025A

SHIM,25.2X29.8X1.72

92025-1073

—
Out of stock

92025B

SHIM,25.2X29.8X1.74

92025-1074

—
Out of stock

92025C

SHIM,25.2X29.8X1.76

92025-1075

—
Out of stock

92025D

SHIM,25.2X29.8X1.78

92025-1076

—
Out of stock

92025E

SHIM,25.2X29.8X1.80

92025-1077

—
Out of stock

92025F

SHIM,25.3X36X0.15

92025-1688

—
Out of stock

92025G

SHIM,25.3X36X0.50

92025-1689

—
Out of stock

92025H

SHIM,25.3X36X0.60

92025-1690

—
Out of stock

92025I

SHIM,25.3X36X0.70

92025-1691

—
Out of stock

92025J

SHIM,25.3X36X0.80

92025-1692

—
Out of stock

92025K

SHIM,25.3X36X0.90

92025-1693

—
Out of stock

92025L

SHIM,25.3X36X1.00

92025-1694

—
Out of stock

92025M

SHIM,25.3X36X1.10

92025-1695

—
Out of stock

92025N

SHIM,25.3X36X1.20

92025-1696

—
Out of stock

92025O

SHIM,T=0.15

92025-1818

—
Out of stock

92025P

SHIM,T=0.50

92025-1819

—
Out of stock

92025Q

SHIM,T=0.60

92025-1820

—
Out of stock

120

BOLT-SOCKET,8X30

120S0830

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

671

O RING,65MM

671B2565

1
Out of stock

92025R

SHIM,T=0.70

92025-1821

—
Out of stock

92025S

SHIM,T=0.80

92025-1822

—
Out of stock

92025T

SHIM,T=0.90

92025-1823

—
Out of stock

92025U

SHIM,T=1.00

92025-1824

—
Out of stock

92025V

SHIM,T=1.20

92025-1825

—
Out of stock

92025W

SHIM,T=0.10

92025-1826

—
Out of stock

92027

COLLAR,25.2X29.8X22.8

92027-1152

—
Out of stock

92027A

COLLAR,25.2X29.8X22.9

92027-1153

—
Out of stock

92027B

COLLAR,25.2X29.8X23

92027-1154

—
Out of stock

92027C

COLLAR,25.2X29.8X23.1

92027-1155

—
Out of stock

92027D

COLLAR,25.2X29.8X23.2

92027-1156

—
Out of stock

92027E

COLLAR,25.2X29.8X23.3

92027-1157

—
Out of stock

92027F

COLLAR,25.2X29.8X23.4

92027-1158

—
Out of stock

92027G

COLLAR,25.2X29.8X23.5

92027-1159

—
Out of stock

92027H

COLLAR,25.2X29.8X23.6

92027-1160

—
Out of stock

92027I

COLLAR,25.2X29.8X23.7

92027-1161

—
Out of stock

92027J

COLLAR,25.2X29.8X23.8

92027-1162

—
Out of stock

92027K

COLLAR,25.2X29.8X23.9

92027-1163

—
Out of stock

92027L

COLLAR,25.2X29.8X24

92027-1164

—
Out of stock

92027M

COLLAR,25.2X29.8X24.1

92027-1165

—
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,11.5X14X14

92043-1279

1
Out of stock

92045

BEARING-BALL,6305C2

92045-1165

1
Out of stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,TC35527

92049-1038

1
Out of stock

92049B

SEAL-OIL,TC13225.5

92049-1519

1
Out of stock

92055

RING-O,ID=18.64

92055-1044

1
Out of stock

92062

NOZZLE,6X8,GREEN

92062-1078

1
Out of stock

92062A

NOZZLE,10X10,SILVER

92062-1083

1
Out of stock

92116

BEARING-ROLLER,HI-CAP30205

92116-1062

1
Out of stock

92145

SPRING,CAM DAMPER

92145-1102

1
Out of stock

92151

BOLT,8X95

92151-1444

1
Out of stock

92151A

BOLT,8X80

92151-1445

1
Out of stock

92170

CLAMP

92170-1732

1
Out of stock
