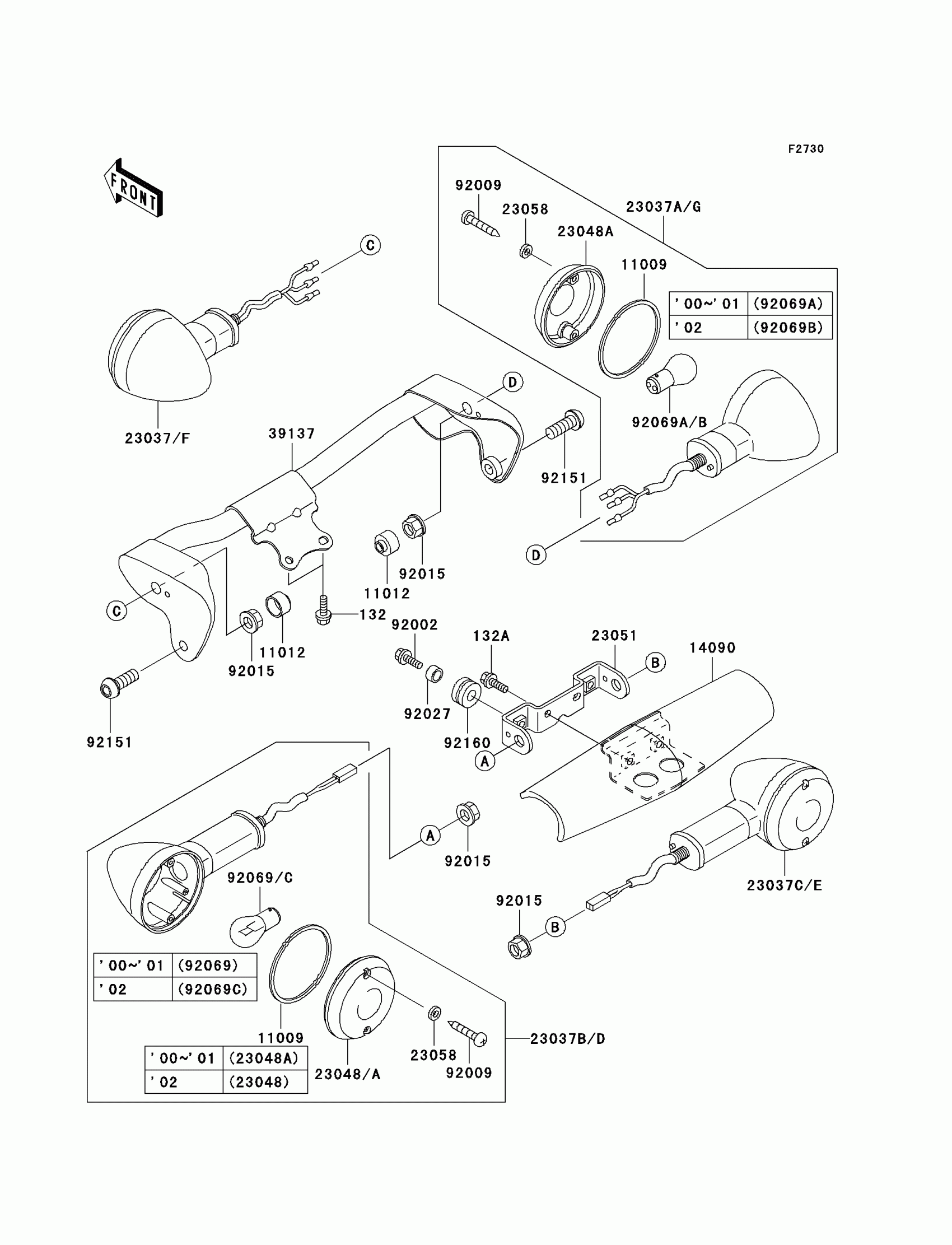

Kawasaki Vulcan 1500 Classic Fi Turn Signals Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL

132J0614

Unavailable

11009

GASKET,SIGNAL LAMP

11009-1413

$3.78

11012

CAP

11012-1367

$4.88

14090

COVER

14090-1691

$75.58

23037D

LAMP-ASSY-SIGNAL,RR,LH

23037-1388

$64.80

23037E

LAMP-ASSY-SIGNAL,RR,RH

23037-1389

$64.80

23037F

LAMP-ASSY-SIGNAL,FR,LH

23037-1426

$73.07

23037G

LAMP-ASSY-SIGNAL,FR,RH

23037-1427

$73.07

23048

LENS-SIGNAL LAMP,RR

23048-1065

$7.26

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$7.26

23051

BRACKET-SIGNAL LAMP,RR

23051-1230

$19.97

23058

WASHER,PLAIN,4MM

23058-002

$1.77

39137

STAY-COMP,SIGNAL LAMP,FR

39137-1077

$182.44

92002

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,TAPPING,4X25

92009-1637

$3.53

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069B

BULB,12V 21/5W

92069-063

$7.09

92069C

Not Available As Spare Part - Friction Washer

Unavailable

92151

BOLT,SOCKET,8X25

92151-1327

$3.53

92160

DAMPER

92160-1162

$3.81
