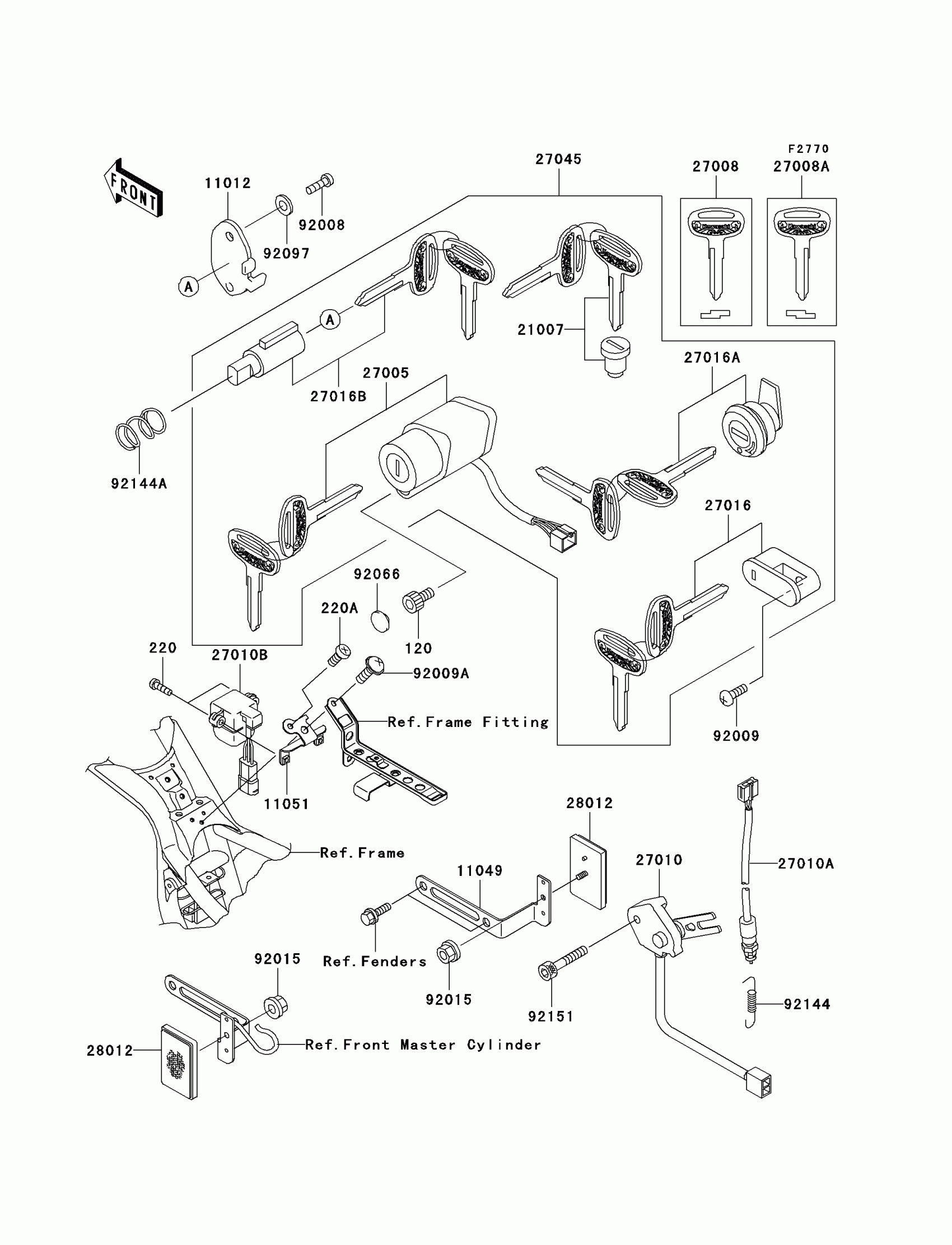

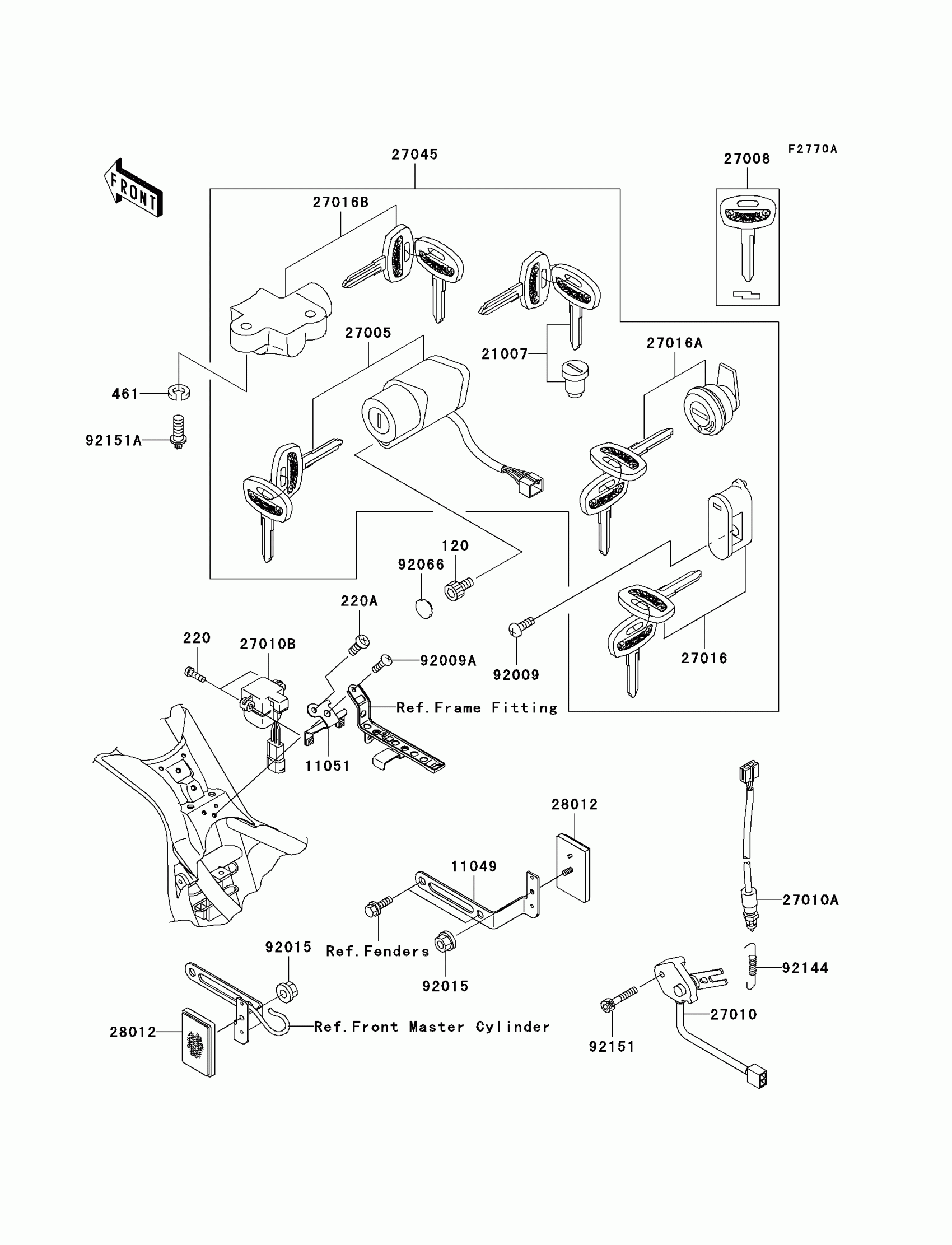

Kawasaki Vulcan 1500 Classic Fi Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET

120P0512

Unavailable

220

SCREW-PAN-CROS,4X20

220C0420

Unavailable

220A

SCREW-PAN-CROS,6X12

220C0612

Unavailable

11012

CAP,STEERING LOCK

11012-1586

Unavailable

11049

BRACKET

11049-1820

$12.15

11051

BRACKET,DOWN SENSOR

11051-1763

$14.78

21007

ROTOR,LOCK,TANK CAP

21007-5041

$74.13

27005

SWITCH-ASSY-IGNITION

27005-1215

$204.64

27008

KEY-LOCK,BLANK,#A

27008-1179

$25.78

27008A

KEY-LOCK,BLANK,#B

27008-1180

$25.78

27010

SWITCH,SIDE STAND

27010-1359

$74.99

27010A

SWITCH,REAR BRAKE

27010-1412

Unavailable

27010B

SWITCH,DOWN SENSOR

27010-1416

Unavailable

27016

LOCK-ASSY,HELMET

27016-5243

$69.10

27016A

LOCK-ASSY,LID

27016-5244

$74.62

27016B

LOCK-ASSY,STEERING

27016-5255

$87.55

27045

SWITCH-ASSY

27045-5082

Unavailable

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

92008

SCREW,3.51MM

92008-007

$3.14

92009

SCREW,5X12

92009-1296

$3.53

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,5MM

92015-1656

$2.00

92066

PLUG

92066-1435

$2.25

92097

WASHER,WAVE

92097-003

$3.43

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92144A

SPRING,STEERING LOCK

92144-1222

$3.98

92151

BOLT,SOCKET,6X35

92151-1390

$2.03
