2002 Kawasaki Vulcan 1500 Classic Fi Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2002 Kawasaki Vulcan 1500 Classic Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

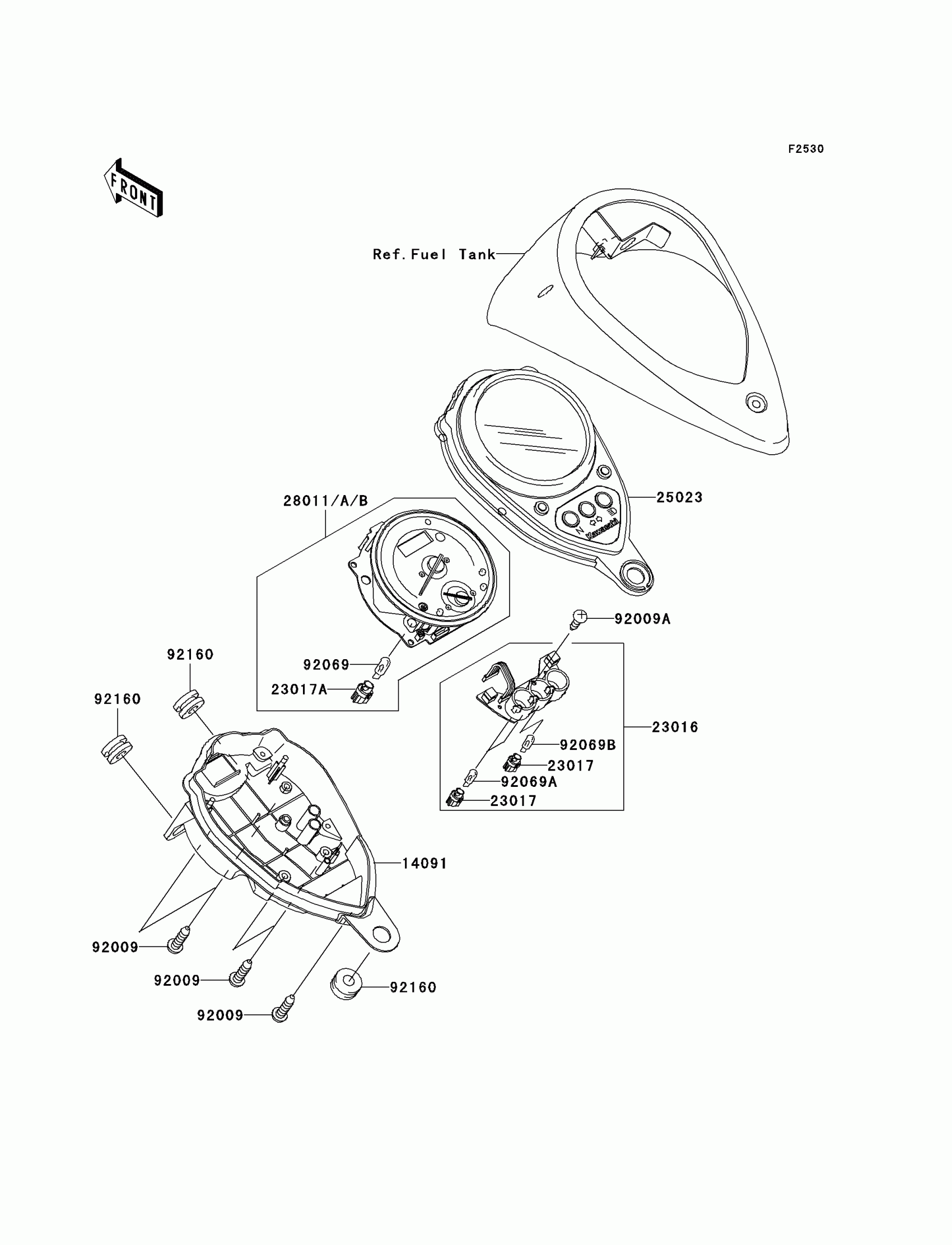

2002 Kawasaki Vulcan 1500 Classic Fi Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-1215

1
Out of stock

23016

LAMP-ASSY

23016-1186

1
Out of stock

23017

SOCKET,WEDGE BASE,T-5

23017-1063

1
Out of stock

23017A

SOCKET

23017-1064

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1255

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92069

BULB,14V 3W,T6.5

92069-1068

1
Out of stock

92069A

BULB,12V 2W,T5

92069-1105

1
Out of stock

92069B

BULB,12V 1.4W,T5

92069-1117

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

28011

METER,MPH

28011-1206

1
Out of stock

28011B

METER,SPEED&TACHO,KPH

28011-1230

1
Out of stock
