2002 Kawasaki Vulcan 1500 Classic Fi Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2002 Kawasaki Vulcan 1500 Classic Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

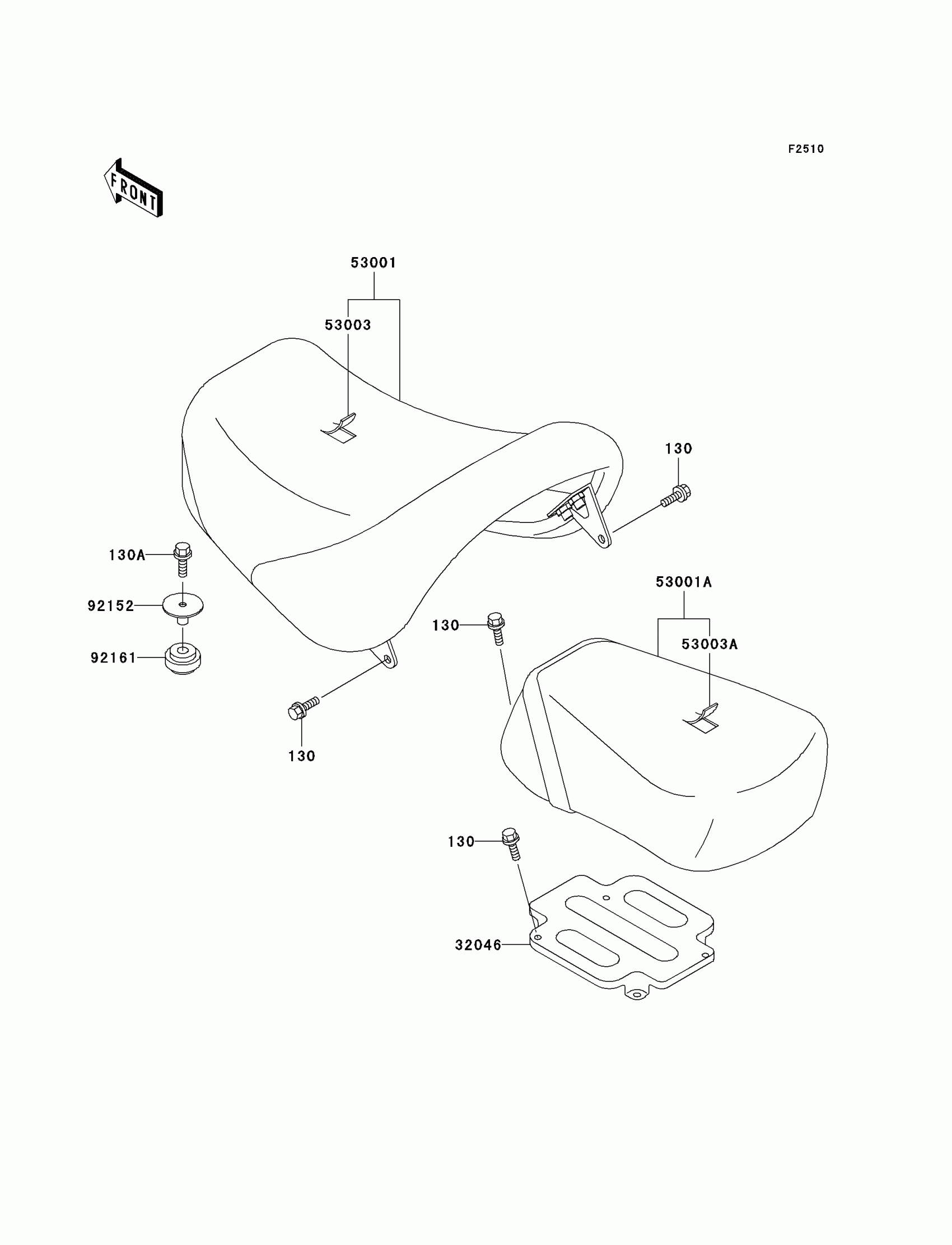

2002 Kawasaki Vulcan 1500 Classic Fi Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130A

BOLT-FLANGED,8X35

130J0835

1
Out of stock

32046

BRACKET-SEAT,RR

32046-1458

1
Out of stock

53001

SEAT-ASSY,FR,BLACK

53001-1925-MA

1
Out of stock

53001A

SEAT-ASSY,RR,W/BAND,BLACK

53001-1926-MA

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1451-MA

1
Out of stock

53003A

LEATHER,REAR SEAT,BLACK

53003-1452-MA

1
Out of stock

92152

COLLAR

92152-1100

1
Out of stock

92161

DAMPER

92161-1157

1
Out of stock
← Labels Side Covers →
