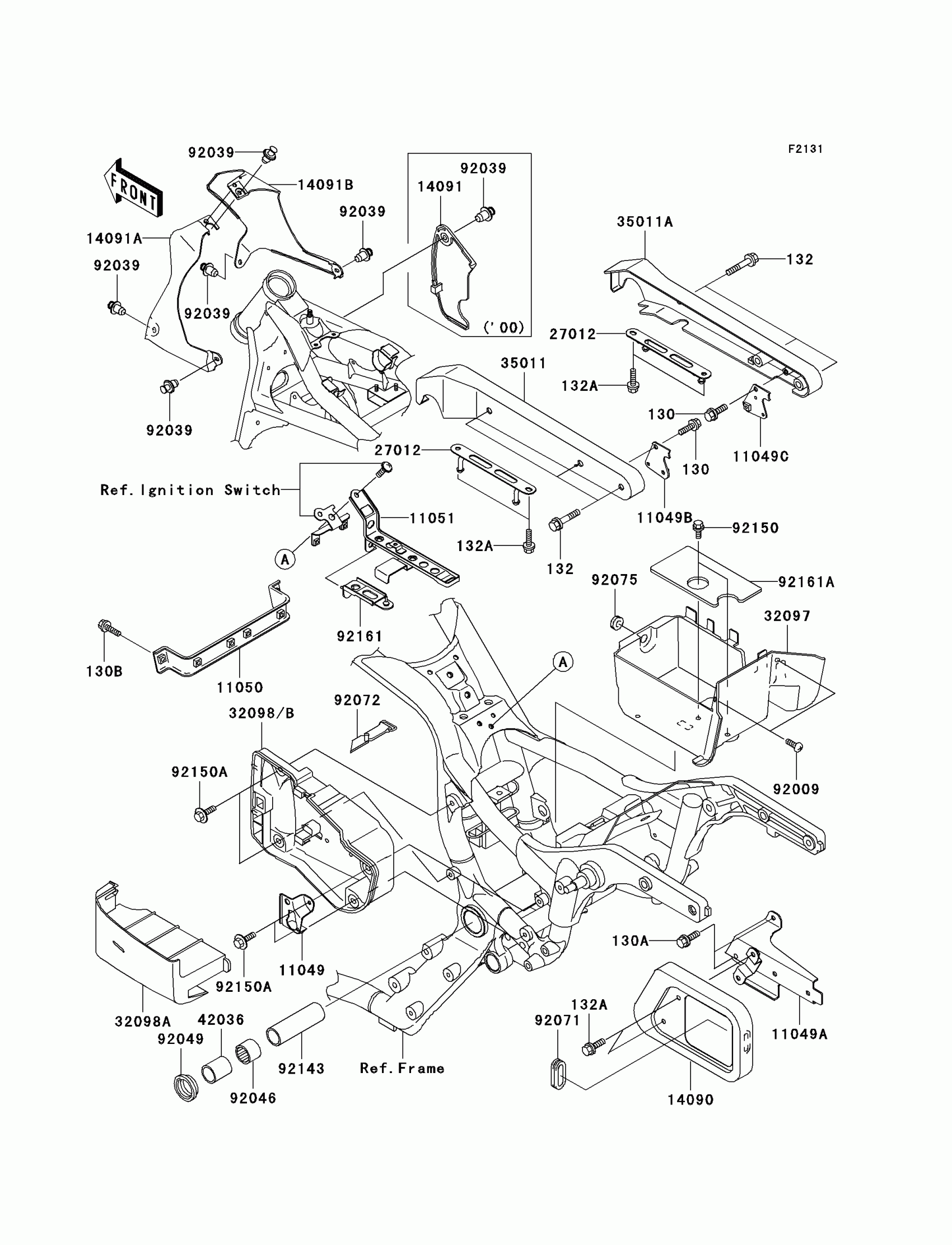

Kawasaki Vulcan 1500 Classic Fi Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130H0612

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

132

BOLT-FLANGED-SMALL,8X45

132E0845

$7.42

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

11049

BRACKET,LOCK

11049-1600

$18.81

11049A

BRACKET,REGULATOR

11049-1607

$80.63

11049B

BRACKET,HELMET LOCK,LH

11049-1624

$6.69

11049C

BRACKET,HELMET LOCK,RH

11049-1625

$6.69

11050

BRACKET,REGULATOR

11050-1694

$36.89

11051

BRACKET,BATTERY BAND

11051-1798

$35.28

14090

COVER,REGULATOR

14090-1940

$63.37

14091A

COVER,HEAD PIPE,LH

14091-1285

Unavailable

14091B

COVER,HEAD PIPE,RH

14091-1286

$128.70

27012

HOOK,BUNGEE CORD

27012-1524

$22.90

32097

CASE-BATTERY

32097-1175

$41.81

32098

CASE-TOOL

32098-1125

$148.64

32098A

CASE-TOOL,COVER

32098-1126

$143.88

35011

STAY,REAR FENDER,LH

35011-1868

$145.69

35011A

STAY,REAR FENDER,RH

35011-1869

$126.67

42036

SLEEVE,L=45

42036-1330

Unavailable

92009

SCREW,6X10

92009-1402

$1.73

92039

RIVET

92039-1227

$1.33

92046

BEARING-NEEDLE,BM2824

92046-1202

$20.35

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92071

GROMMET

92071-1187

$3.78

92072

BAND,L=470

92072-1331

$24.34

92075

DAMPER

92075-1067

$3.57

92143

COLLAR,20.2X27X90

92143-1878

$36.69

92150

BOLT,6X14

92150-1133

$3.43

92150A

BOLT,6X16

92150-1198

$3.69

92161

DAMPER,BATTERY BAND

92161-1096

$12.54

92161A

DAMPER,BATTERY

92161-1097

$4.93
