2002 Kawasaki Vulcan 1500 Classic Fi Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2002 Kawasaki Vulcan 1500 Classic Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

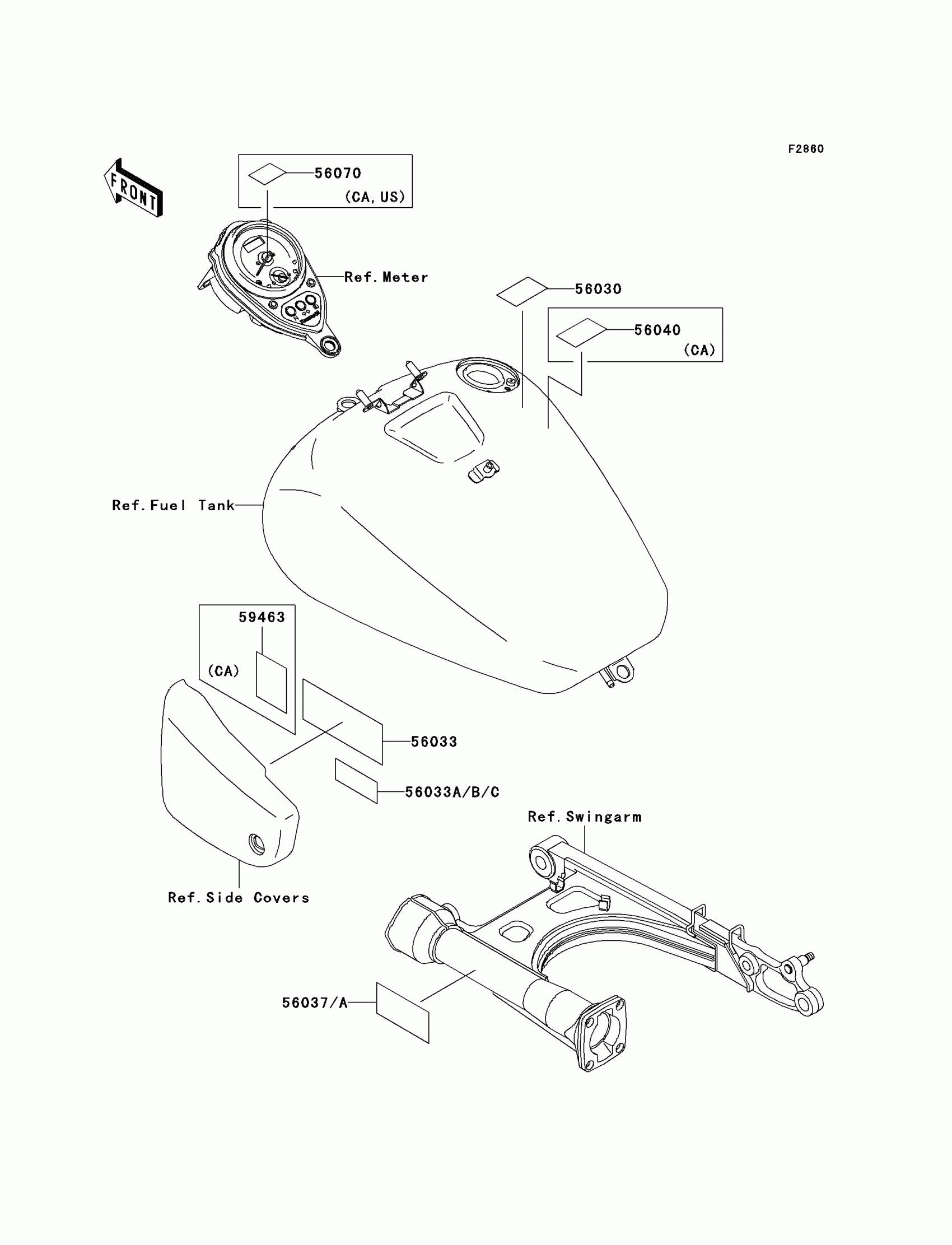

2002 Kawasaki Vulcan 1500 Classic Fi Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56030

LABEL,GASOLINE

56030-1178

1
Out of stock

56033

1

$12.24

In stock

56033C

1

$5.95

In stock

56037A

LABEL-SPECIFICATION,TIRE&LOAD

56037-1949

1
Out of stock

56040

LABEL-WARNING,EVAPO

56040-1121

1

$4.83

In stock

56070

1

$4.22

In stock

59463

1

$7.73

In stock
