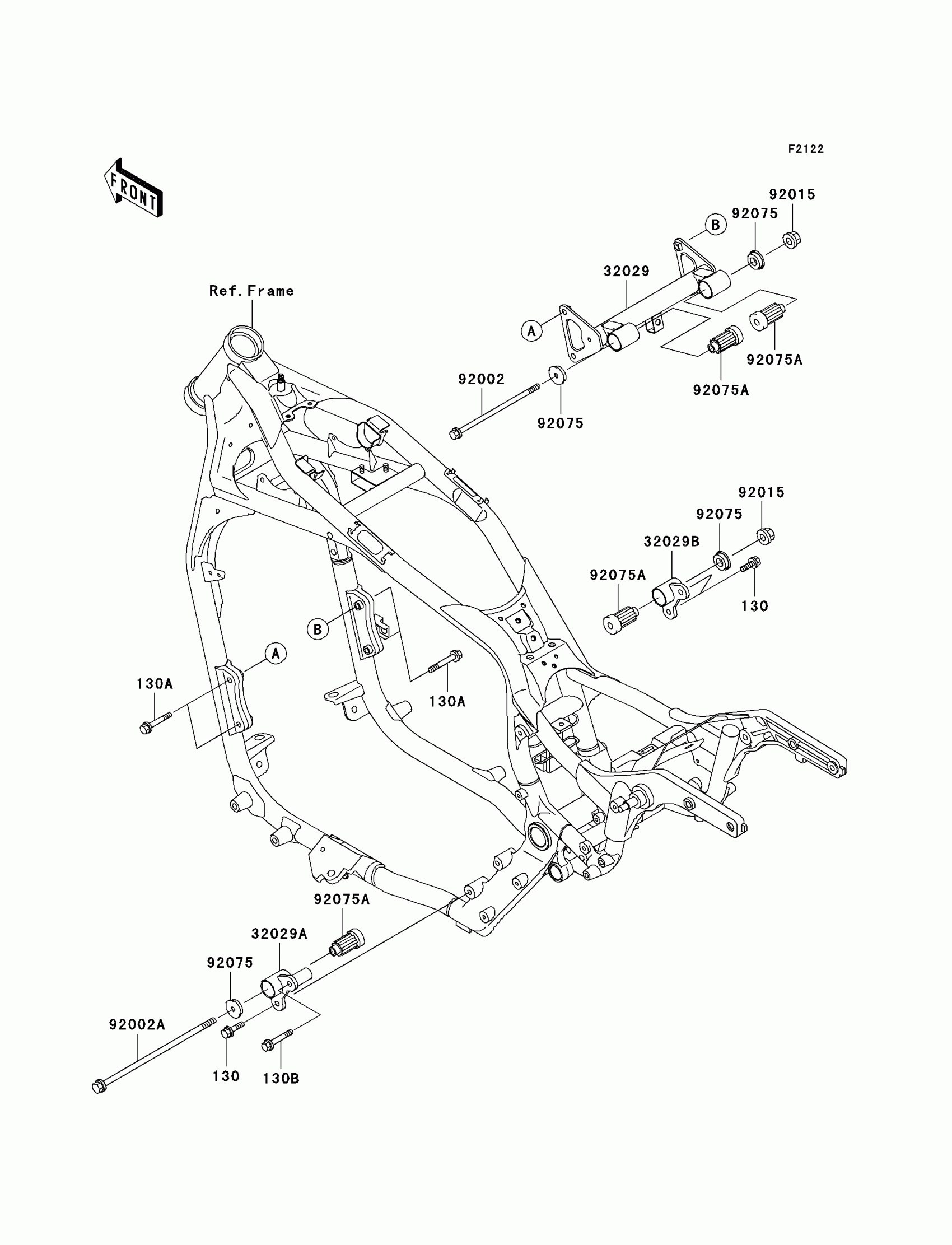

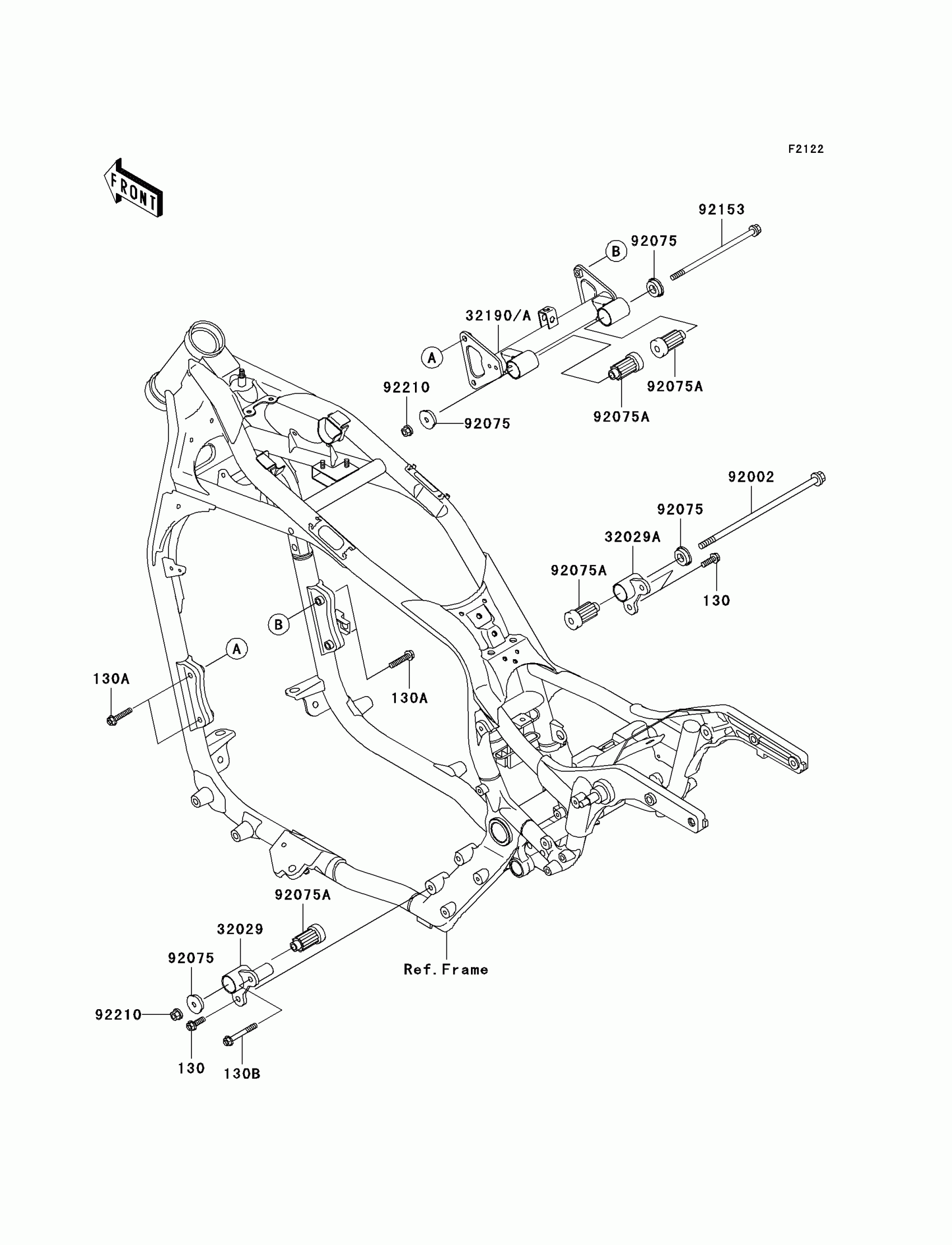

Kawasaki Vulcan 1500 Classic Engine Mount Diagram

#

Description
Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

130A

BOLT-FLANGED,8X40

130J0840

Unavailable

130B

BOLT-FLANGED,8X60

130J0860

Unavailable

32029

BRACKET-ENGINE,FR

32029-1985

$178.68

32029A

BRACKET-ENGINE,RR,LH

32029-1986

$65.97

32029B

BRACKET-ENGINE,RR,RH

32029-1987

$58.07

92002

BOLT,FLANGED,10X285

92002-1206

$21.24

92002A

BOLT,FLANGED,10X330

92002-1540

$25.88

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92075

DAMPER,ENGINE MOUNT

92075-1738

$18.93

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$28.62
