1997 Kawasaki Vulcan 1500 Classic Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

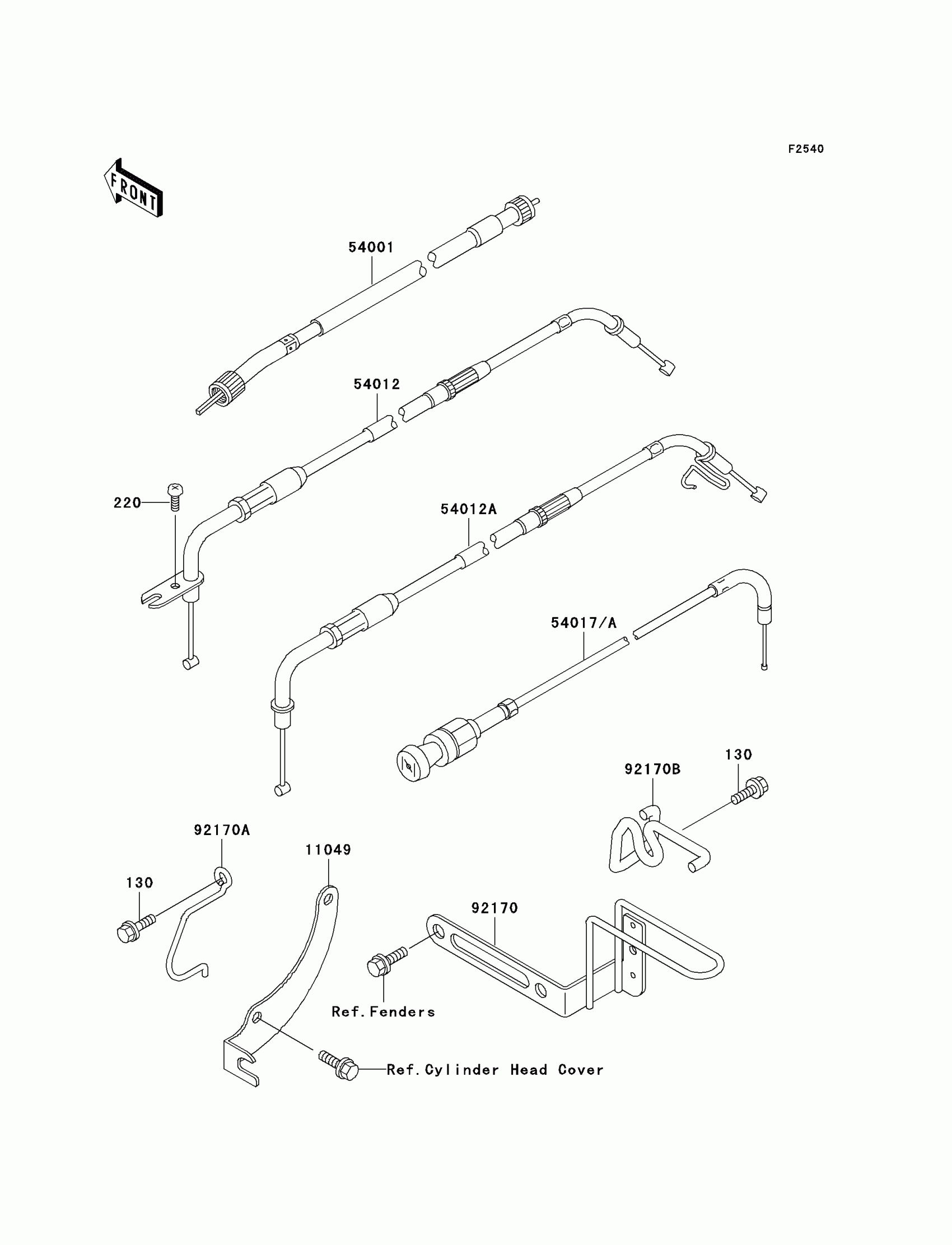

1997 Kawasaki Vulcan 1500 Classic Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock

11049

BRACKET,CHOCK CABLE

11049-1888

1

$10.69

In stock

54001

CABLE-SPEEDMETER

54001-1215

1
Out of stock

54012

1

$44.04

In stock

54012A

1

$44.04

In stock

54017A

CABLE-STARTER

54017-1187

1

$38.90

In stock

92170

CLAMP,CABLE

92170-1652

1

$36.39

In stock

92170A

CLAMP,CABLE

92170-1697

1

$14.53

In stock

92170B

CLAMP,CABLE

92170-1729

1

$14.49

In stock
