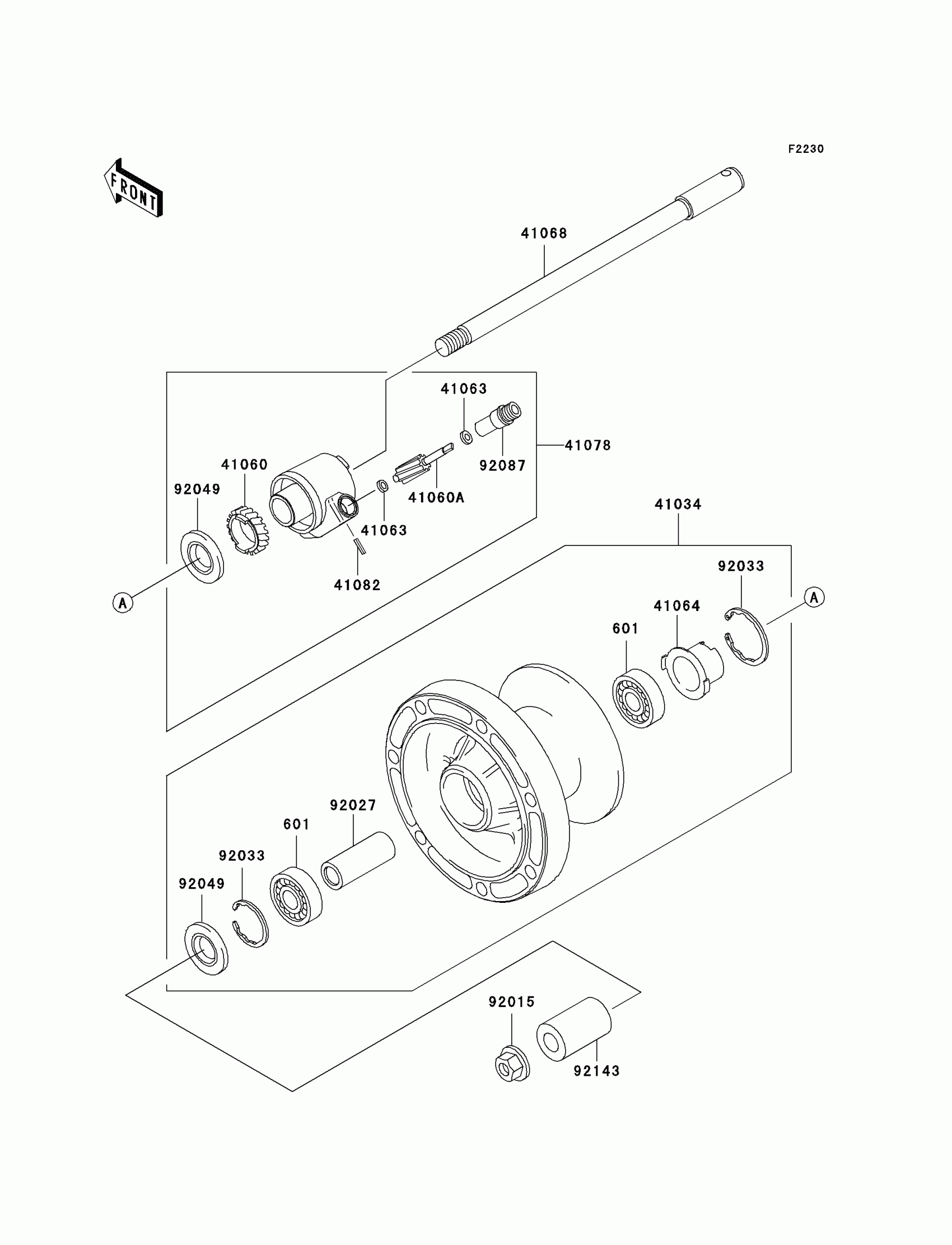

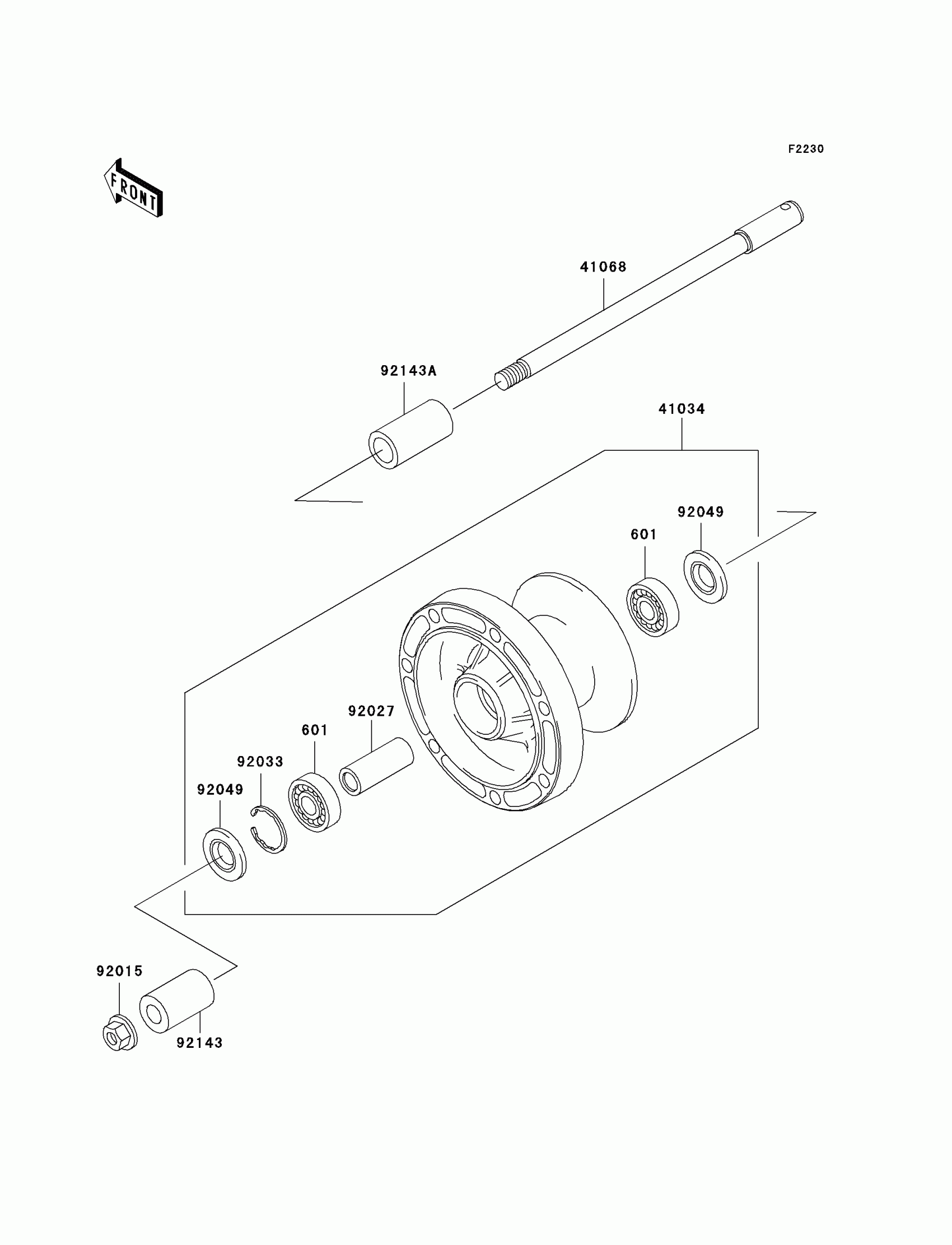

Kawasaki Vulcan 1500 Classic Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6004UUC3

601B6004UU

$25.52

41034

DRUM-ASSY,FRONT BRAKE

41034-1259

$852.92

41060

GEAR-METER SCREW,25T

41060-1160

Unavailable

41060A

GEAR-METER SCREW,9T

41060-1161

Unavailable

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1056

$23.32

41068

AXLE,FR

41068-1378

$77.00

41078

CASE-ASSY-METER GEAR

41078-1103

$127.25

41082

PIN,SPRING

41082-001

$3.53

92015

NUT,FLANGED,18MM

92015-1993

$7.25

92027

COLLAR,20.2X28X70

92027-1752

$17.39

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92087

BUSHING-METER GEAR

92087-1056

$20.39

92143

COLLAR,FR AXLE,LH,L=48.5

92143-1837

$38.81
