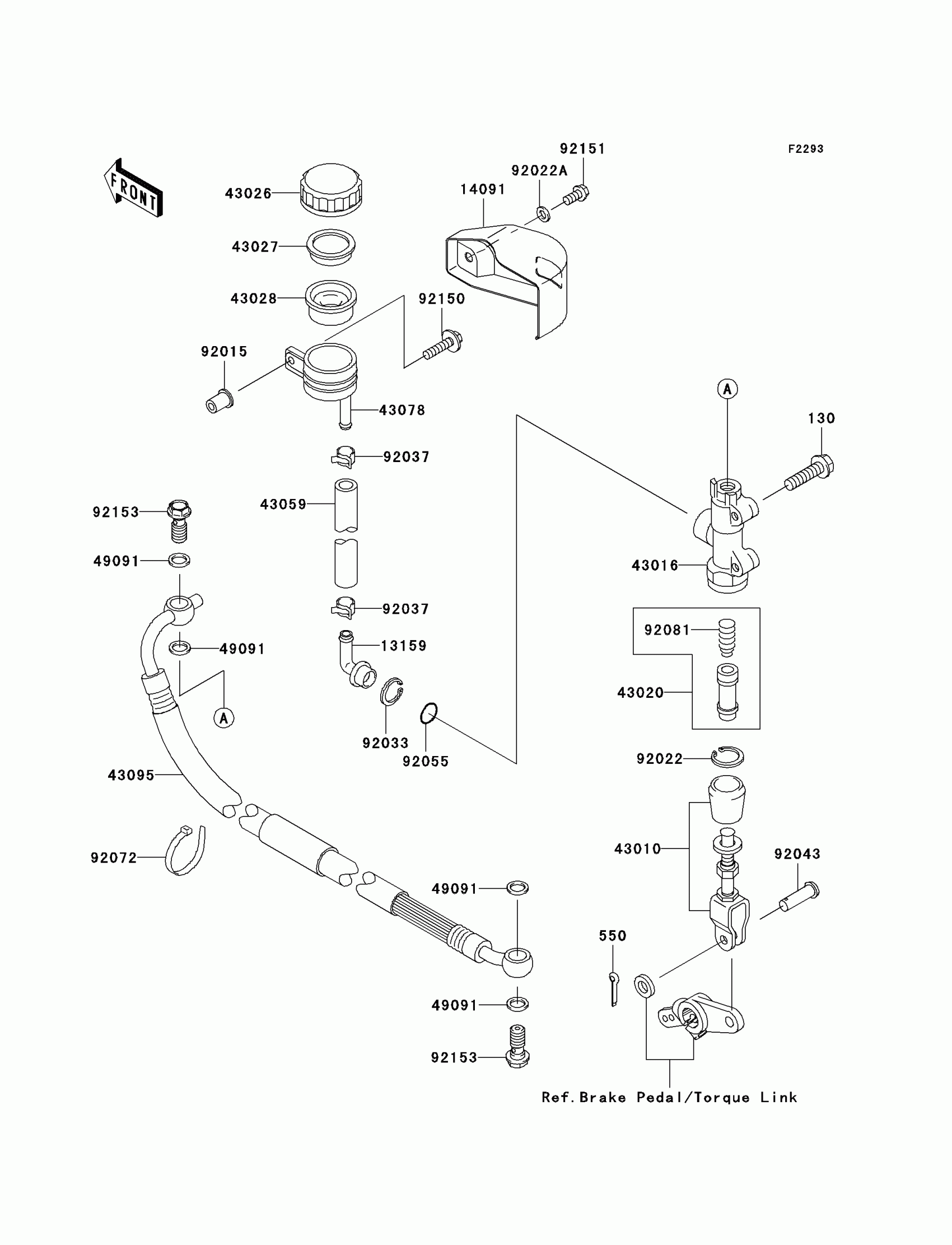

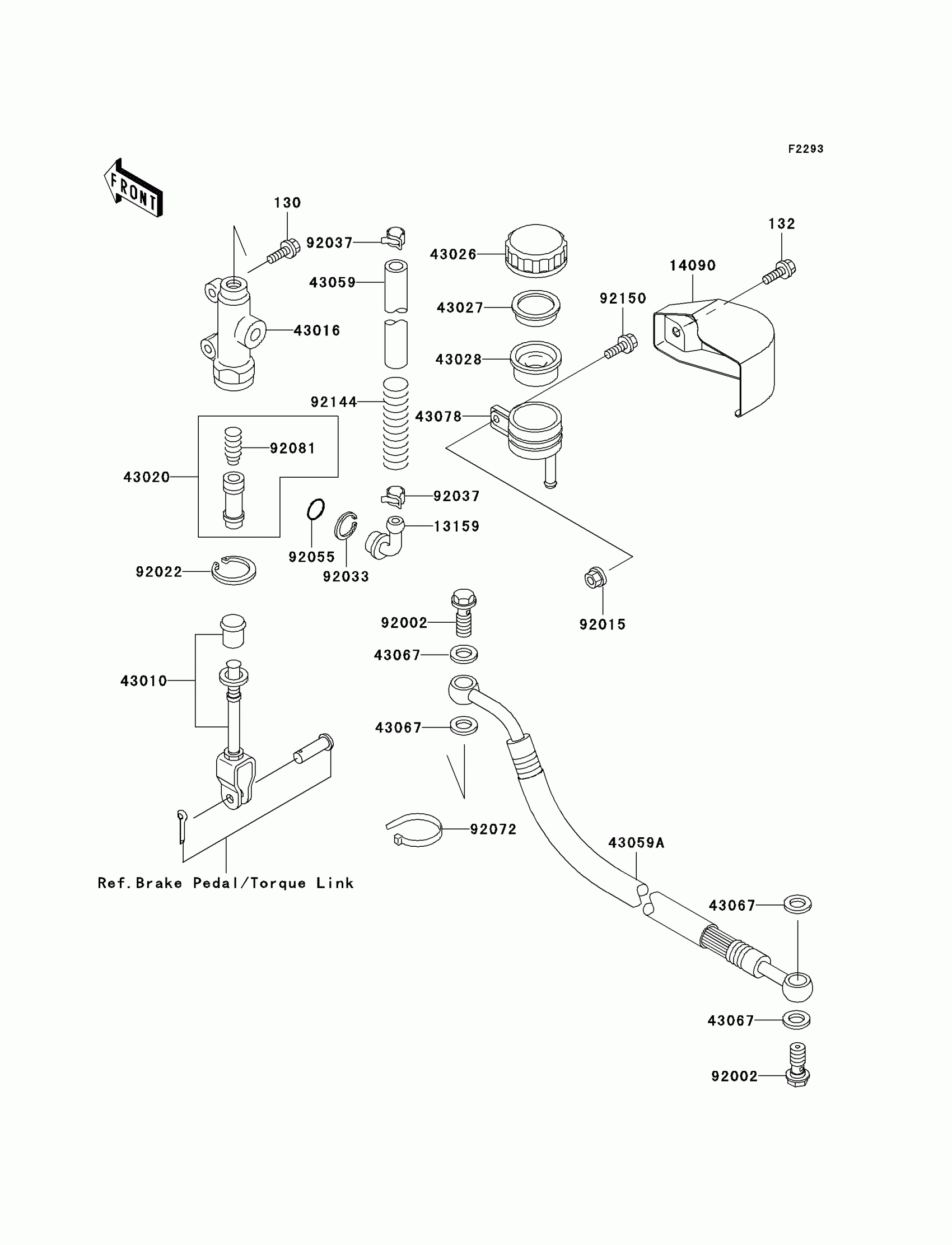

Kawasaki Vulcan 1500 Classic Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X30

130J0830

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

14090

COVER,RESERVOIR

14090-1705

$80.63

43010

ROD-ASSY-BRAKE

43010-1055

$70.35

43016

CYLINDER-MASTER,RR

43016-1122

$198.71

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1939

$19.31

43059A

HOSE-BRAKE,RR

43059-1959

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

92002

BOLT,OIL,L=23

92002-1888

$4.15

92015

NUT

92015-1700

$6.55

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92072

BAND,L=202

92072-1195

$1.16

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92144

SPRING,PROTECTOR

92144-1513

$13.78

92150

BOLT,6X25

92150-1829

$3.29
