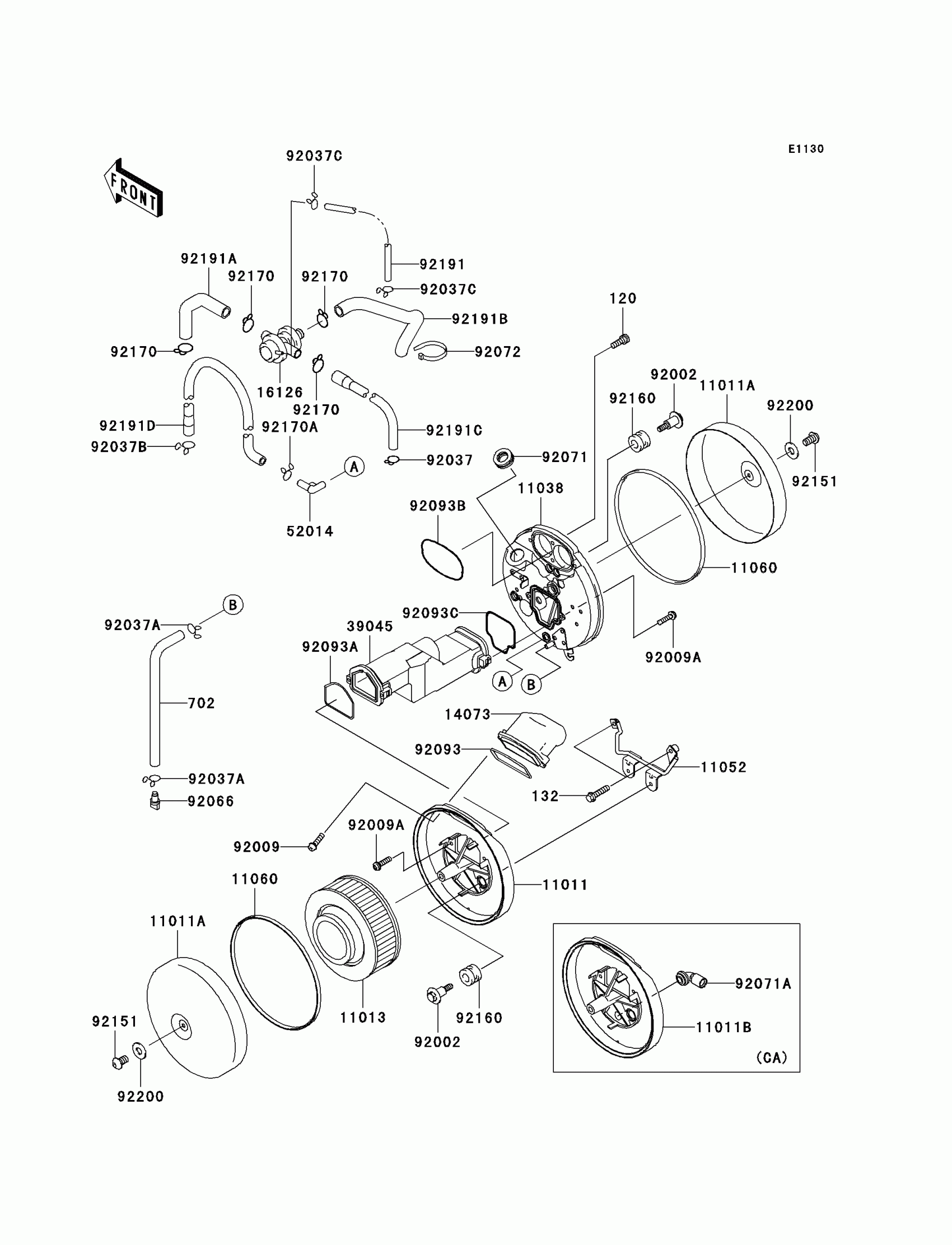

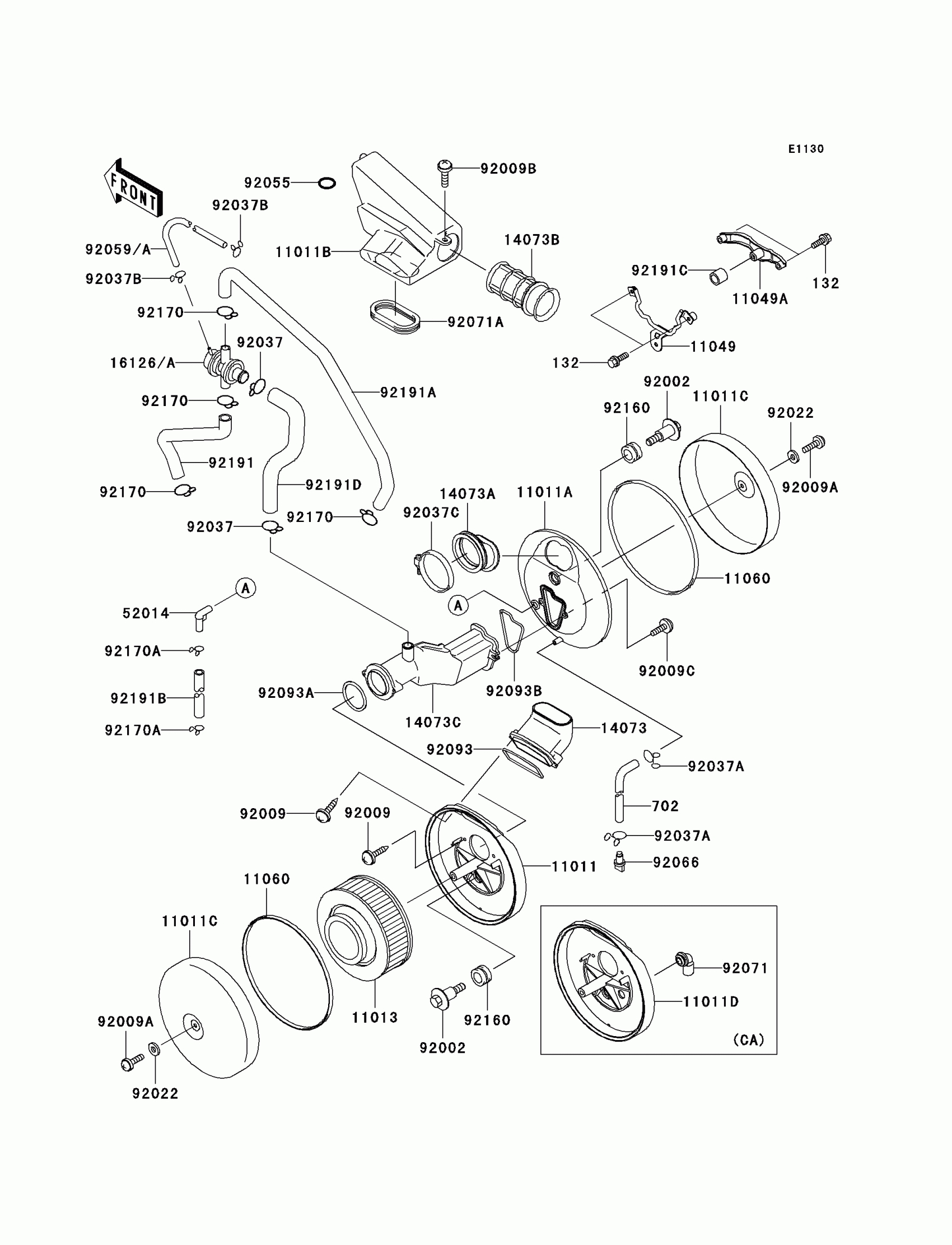

Find the part on the Air Cleaner diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki Vulcan 1500 Classic Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011A

CASE-AIR FILTER,RH,INSIDE

11011-1487

1
Out of stock

11011B

CASE-AIR FILTER,CENTER

11011-1488

1
Out of stock

11011C

CASE-AIR FILTER,OUTSIDE

11011-1489

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1248

1
Out of stock

11049

BRACKET,AIR FILTER,LH

11049-1538

1
Out of stock

11049A

BRACKET,AIR FILTER,RH

11049-1539

1
Out of stock

11060

GASKET,AIR FILTER CASE,LH

11060-1736

1
Out of stock

14073

DUCT,AIR FILTER,LH

14073-1658

1
Out of stock

14073A

DUCT,AIR FILTER,RH

14073-1659

1
Out of stock

14073B

DUCT

14073-1660

1
Out of stock

14073C

DUCT

14073-1690

1
Out of stock

16126A

VALVE,AIR SWITCH

16126-1333

1
Out of stock

52014

ELBOW

52014-1083

1
Out of stock

92002

BOLT,FLANGED,6X14X13.5

92002-1595

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1264

1
Out of stock

92009A

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009B

SCREW,6X14

92009-1288

1
Out of stock

92009C

SCREW,5X16

92009-1571

1
Out of stock

92022

WASHER,6.5X20X1.6,WHITE

92022-193

1
Out of stock

92037

CLAMP,TUBE

92037-1076

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP

92037-1712

1
Out of stock

92037C

CLAMP

92037-1859

1
Out of stock

92055

RING-O

92055-1282

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92071A

GROMMET

92071-1233

1
Out of stock

92093

SEAL,AIR FILTER CASE

92093-1408

1
Out of stock

92093A

SEAL,DUCT,LH

92093-1409

1
Out of stock

92093B

SEAL,DUCT,RH

92093-1410

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

702

TUBE-RUBBER

702A07260

1
Out of stock

92160

DAMPER

92160-1594

1
Out of stock

92170

CLAMP,TUBE

92170-1445

1
Out of stock

92170A

CLAMP

92170-1695

1
Out of stock

92191

TUBE,HEAD,FR-AIR SWITCH

92191-1050

1
Out of stock

92191A

TUBE,HEAD,RR-AIR SWITCH

92191-1051

1
Out of stock

92191B

TUBE,BREATHER

92191-1054

1
Out of stock

92191C

TUBE,15.5X22.5X20

92191-1089

1
Out of stock

92191D

TUBE,AIR SWITCH-DUCT

92191-1266

1
Out of stock

11011

CASE-AIR FILTER,LH,INSIDE

11011-1486

1
Out of stock

11011D

CASE-AIR FILTER,LH,INSIDE

11011-1491

1
Out of stock

92059

TUBE,4X9X290

92059-1133

1
Out of stock

92059A

TUBE,4X9X260

92059-1712

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1114

1
Out of stock
