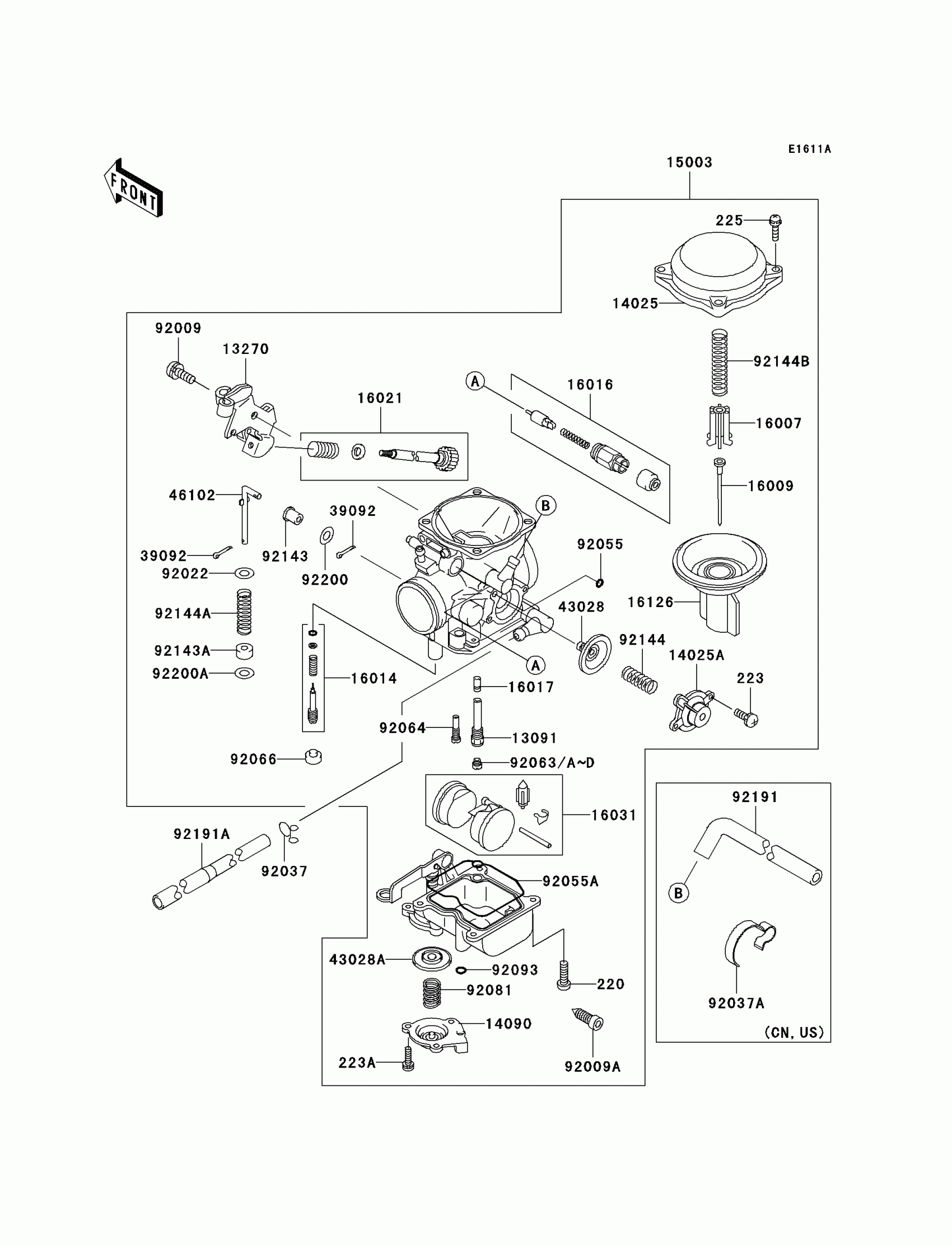

Kawasaki Vulcan 1500 Classic Carburetor(VNT50AE045286-) Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1944

$34.01

13270

PLATE

13270-1513

$43.33

14025

COVER,MIXING CHAMBER

14025-1890

$79.30

14025A

COVER,AIR CUT VALVE

14025-1903

$59.59

14090

COVER,ACCELERATOR

14090-1635

$60.49

15003

CARBURETOR-ASSY

15003-1353

$1,029.97

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$19.49

16009

NEEDLE-JET,N3RB

16009-1926

Unavailable

16014

SCREW-PILOT AIR

16014-1082

$39.91

16016

PLUNGER

16016-1087

$80.64

16017

JET-NEEDLE,01B38

16017-1276

Unavailable

16021

SCREW-THROTTLE STOP

16021-1212

Unavailable

16031

FLOAT

16031-1090

$72.71

16126

VALVE,VACUUM

16126-1325

$214.40

39092

PIN-HAIR

39092-1058

$2.47

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

43028A

DIAPHRAGM

43028-1077

$80.92

46102

ROD,ACCELERATOR PUMP

46102-1400

$30.92

92009

SCREW,5X10

92009-1365

$5.84

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.86

92022

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037

CLAMP,TUBE

92037-1531

$4.37

92055

RING-O

92055-1245

$4.42

92055A

RING-O,FLOAT CHAMBER

92055-1518

$22.64

92063

JET-MAIN,#135

92063-1014

$11.16

92063A

JET-MAIN,#138

92063-1015

$11.16

92063B

JET-MAIN,#128

92063-1074

$13.39

92063C

JET-MAIN,#130

92063-1075

$13.39

92063D

JET-MAIN,#132

92063-1076

$13.39

92064

JET-PILOT,#45

92064-1177

Unavailable

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$4.01

92081

SPRING,DIAPHRAGM

92081-1092

$11.12

92093

SEAL-"U"RING

92093-1046

$5.15

92143

COLLAR

92143-1790

$3.27

92143A

COLLAR

92143-1791

Unavailable

220

SCREW-PAN-CROS,4X14

220D0414

$3.65

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.17

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92144

SPRING,AIR CUT VALVE

92144-1072

$10.54

92144A

SPRING

92144-1886

Unavailable

92144B

SPRING,VACUUM VALVE

92144-1947

$20.42

92191A

TUBE,FUEL

92191-1261

$8.72

92200

WASHER

92200-1274

$2.51

92200A

WASHER

92200-1275

Unavailable

92037A

CLAMP,HOSE

92037-1552

$9.63

92191

TUBE,AIR VENT

92191-1090

Unavailable
