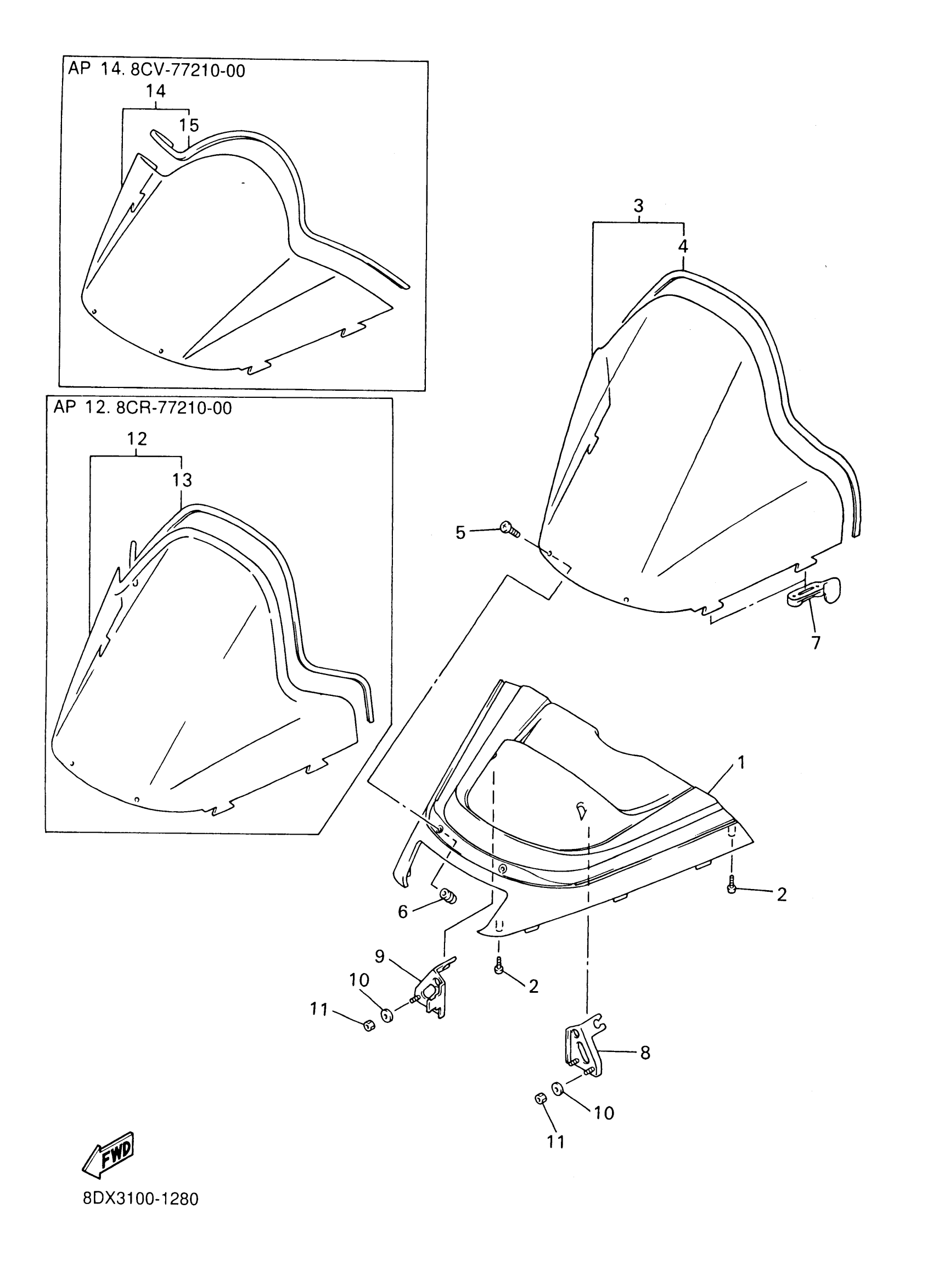

Find the part on the Windshield diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VT500XLF 8DX3 Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8CR-77251-01-00

1

$219.77

In stock

2

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

3

WINDSHIELD COMP.

8DM-77210-00-00

1
Out of stock

4

TRIM, UPPER

8DM-77213-00-00

—

$35.48

In stock

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

6

NUT(1KT)

90179-05523-00

1

$4.33

In stock

7

FASTNER

82H-77223-00-00

1

$7.63

In stock

8

STAY 1

8CR-77125-00-00

—

$11.91

In stock

9

STAY 2

8CR-77126-00-00

—

$16.85

In stock

10

WASHER, PLATE

90201-06557-00

1

$2.75

In stock

11

NUT(6TA)

95317-06600-00

1

$2.69

In stock

12

WINDSHIELD, VMAX

8CR-77210-00-XX

1
Out of stock

13

TRIM,UPPER

87K-77213-00-00

1
Out of stock

14

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

1
Out of stock

15

TRIM,UPPER

87K-77213-00-00

1
Out of stock
