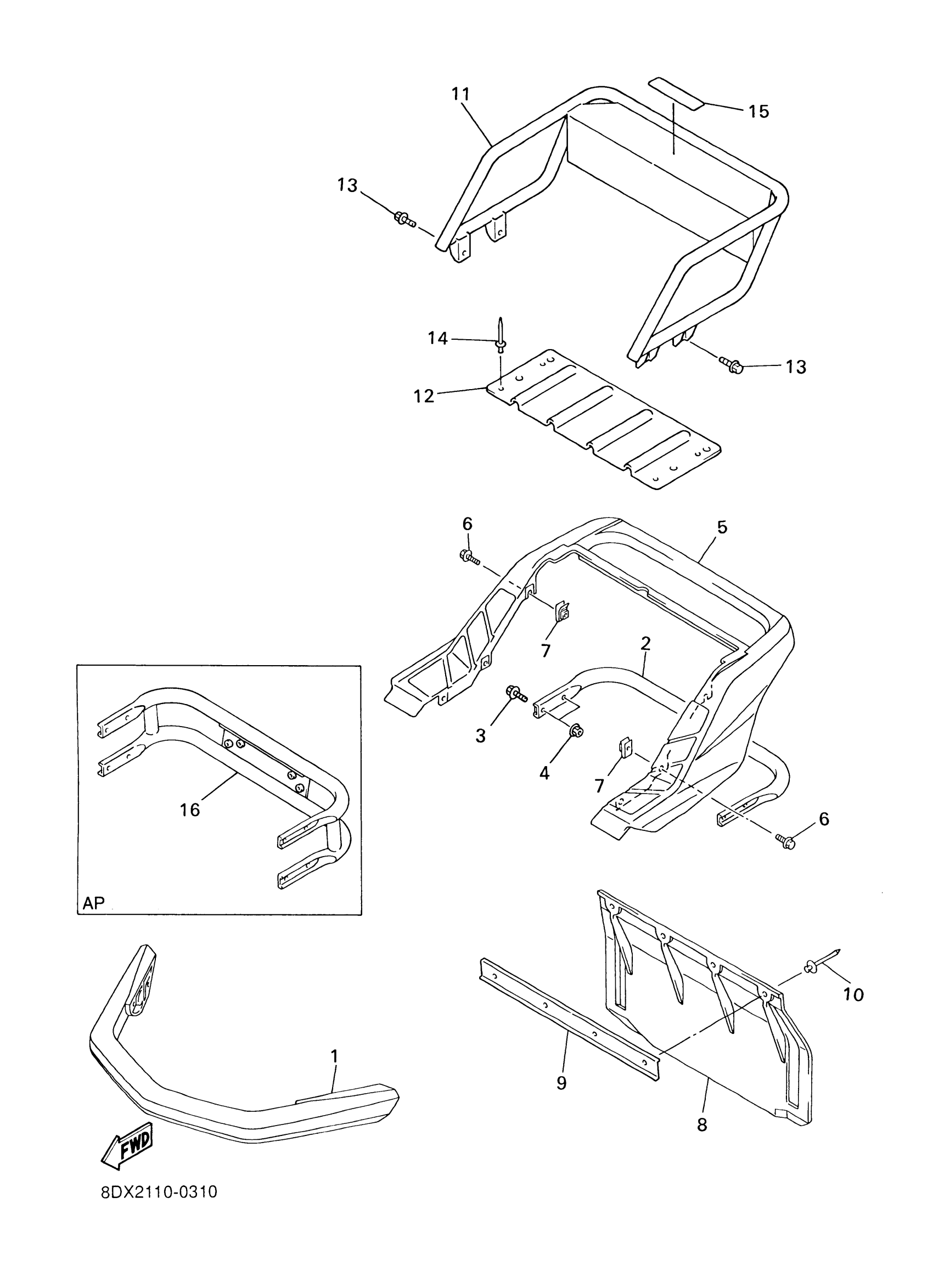

Find the part on the Bumper diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VT500XLF 8DX3 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8CR-77511-00-00

1
Out of stock

2

BUMPER, REAR 1

8DF-77541-00-00

1
Out of stock

3

BOLT, SMALL FLANGE

95027-08016-00

1
Out of stock

4

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

5

BUMPER, REAR 2

8CW-77542-00-00

—

$140.35

In stock

6

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

7

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

8

FLAP

8DM-77595-01-00

—
Out of stock

9

PROTECTOR 6

8DJ-77556-00-00

1
Out of stock

10

RIVET, BLIND

90267-47200-00

1
Out of stock

11

REAR BUMPER COMP.

8CW-77540-00-00

—

$307.92

In stock

12

PROTECTOR 4

8CW-77554-00-00

—
Out of stock

13

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

14

RIVET, BLIND(8CH)

90267-47187-00

1
Out of stock

15

EMBLEM

89X-24897-00-00

1
Out of stock

16

BUMPER, REAR 1

8EB-77541-00-00

—

$326.45

In stock
