2001 Yamaha VT500XLF 8DX3 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

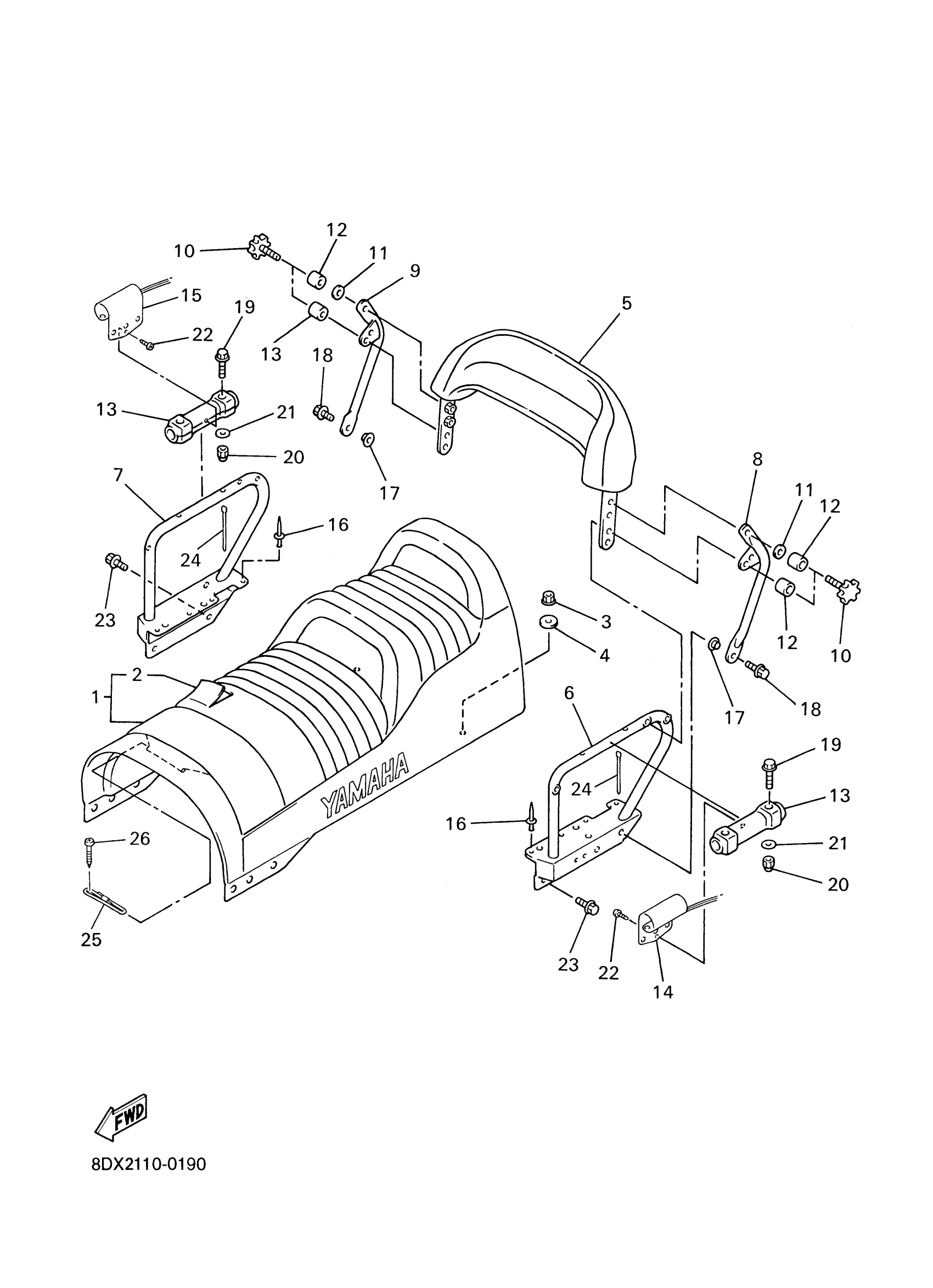

2001 Yamaha VT500XLF 8DX3 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. DOUBLE SEAT ASSY

8CY-24730-20-00

1
Out of stock

2

COVER, SEAT

8CY-2470F-20-00

—

$461.18

In stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

5

SEAT BACK ASSY

8CW-24790-10-00

—

$197.97

In stock

6

BRACKET, ASSIST GRIP 1

8CW-2474H-01-00

—

$134.91

In stock

7

BRACKET, ASSIST GRIP 2

8CW-2474J-01-00

—

$134.91

In stock

8

BRACKET, SEAT BACK

8CW-24797-00-00

—

$40.85

In stock

9

BRACKET, SEAT

8CW-2479L-00-00

—

$40.15

In stock

10

BODY, SEAT LOCK

8CW-2479H-00-00

—

$25.69

In stock

11

WASHER, PLATE (8M2)

90201-083A8-00

1

$2.57

In stock

12

DAMPER, SEAT

8CW-24737-00-00

1

$9.88

In stock

13

. ASSIST, GRIP

8CW-2474A-00-00

1
Out of stock

14

ASSIST GRIP WARMER ASSY 1

8CW-2474B-00-00

—

$155.09

In stock

15

. ASSIST GRIP WARMER ASSY 2

8CW-2474C-00-00

1
Out of stock

16

RIVET, BLIND(8CH)

90267-47187-00

—
Out of stock

17

COLLAR

90387-08079-00

—
Out of stock

18

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

19

BOLT, FLANGE

95817-06040-00

—

$4.54

In stock

20

NUT(4MY)

95307-06800-00

—

$2.86

In stock

21

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

22

SCREW, TAPPING(4MV)

97707-50016-00

—

$1.16

In stock

23

BOLT, FLANGE

95817-08014-00

—

$1.94

In stock

24

CLAMP

90464-13077-00

—

$6.68

In stock

25

BAND, SEAT

8CR-24734-00-00

1
Out of stock

26

SCREW, BINDING

90154-06040-00

1
Out of stock
