1997 Yamaha Venture TR (VT480TRA) Headlight Diagram

← All diagrams

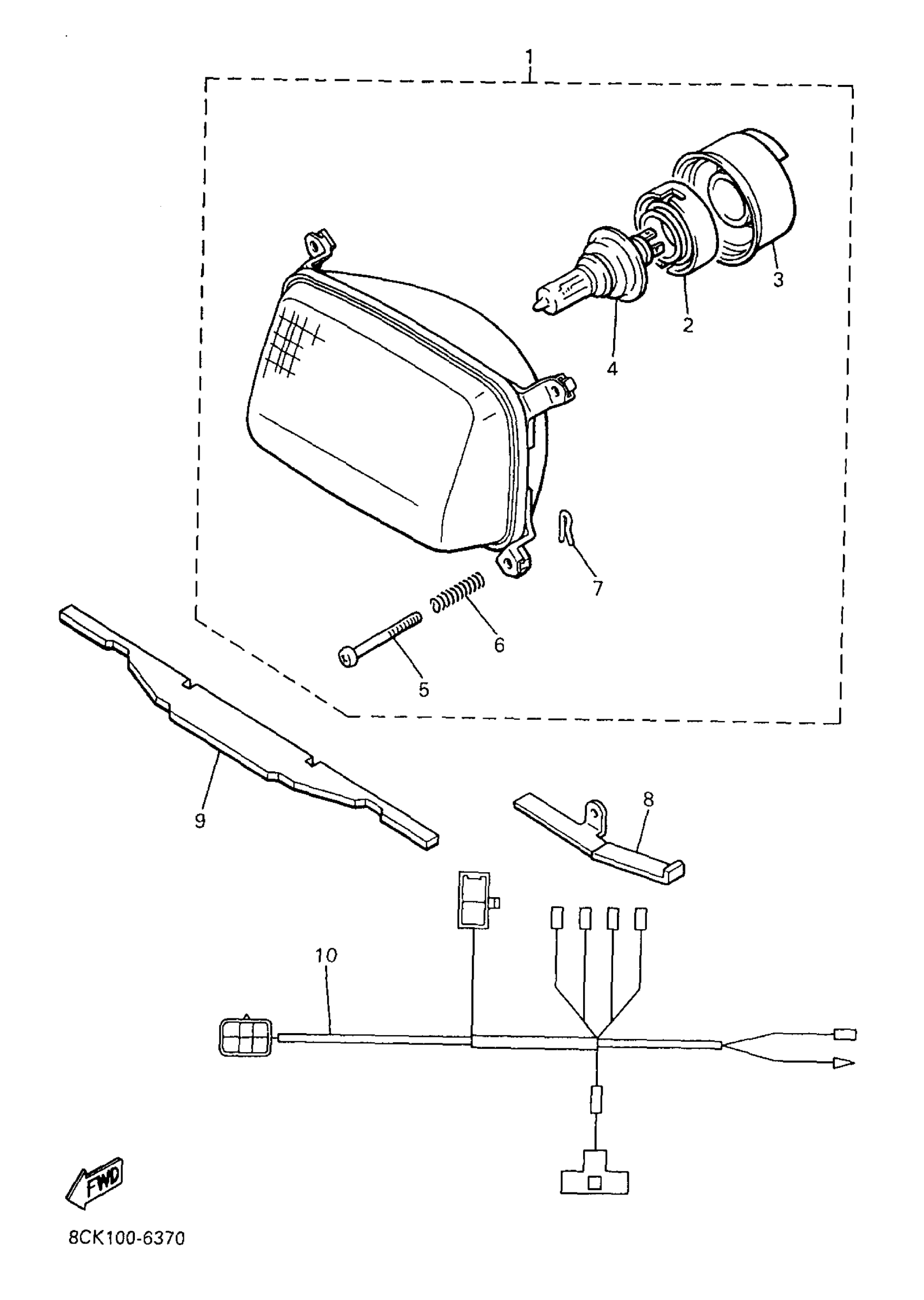

Find the part on the Headlight diagram for your 1997 Yamaha Venture TR (VT480TRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Venture TR (VT480TRA) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

88T-84310-00-00

1
Out of stock

2

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

3

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock

4

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

5

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

6

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

7

CLIP 136253750000

90468-12006-00

1

$5.10

In stock

8

CLAMP

88T-81128-00-00

1
Out of stock

9

DAMPER, HEADLIGHT 1

8W6-84366-00-00

1
Out of stock

10

CORD, HEADLIGHT

8BK-84359-10-00

1
Out of stock
