1997 Yamaha Venture TR (VT480TRA) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1997 Yamaha Venture TR (VT480TRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

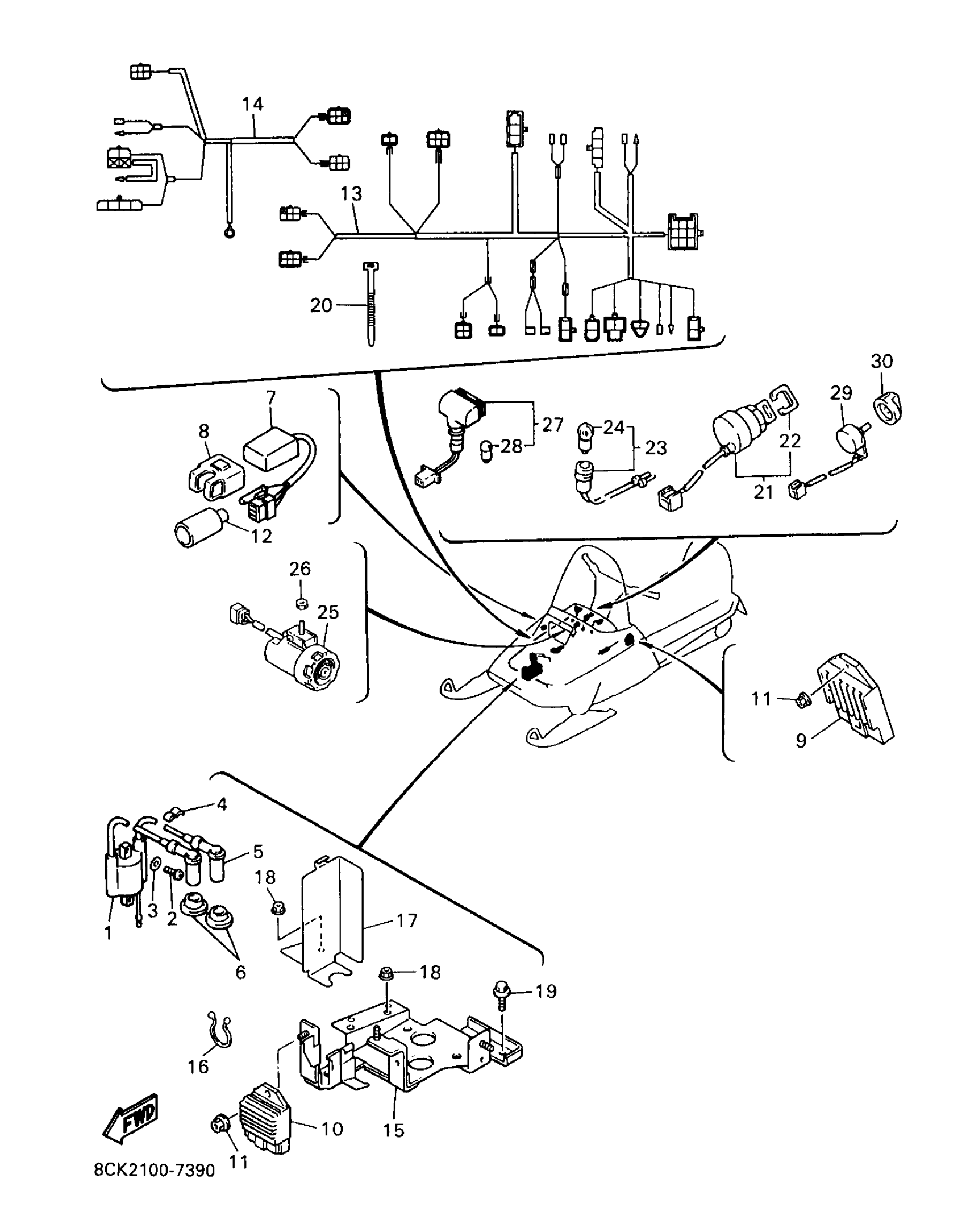

1997 Yamaha Venture TR (VT480TRA) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

8AB-82310-07-00

1
Out of stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

4

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

5

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

6

SEAL, PLUG CAP

8V0-82372-00-00

1

$3.86

In stock

7

C.D.I. UNIT ASSY

8BK-85540-01-00

1
Out of stock

8

BAND

2A7-85546-00-00

—

$20.40

In stock

9

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

1
Out of stock

10

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

1

$91.88

In stock

11

NUT, NYLON

95707-06300-00

1

$3.20

In stock

12

COVER, CONNECTER

8Y0-82599-00-00

—
Out of stock

13

WIRE HARNESS ASSEMBLY

8CK-82590-00-00

1
Out of stock

14

WIRE HARNESS ASSEMBLY 2

8BK-82580-10-00

1
Out of stock

15

BRACKET, BATTERY

89X-2199G-01-00

1
Out of stock

16

CLAMP (3Y2)

90464-16039-00

—
Out of stock

17

COVER 3

89X-2198J-00-00

1
Out of stock

18

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

19

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

20

BAND

341-26397-01-00

1
Out of stock

21

MAIN SWITCH ASSY

8AB-82510-01-00

—
Out of stock

22

CAP, KEY

526-82579-00-00

—

$6.72

In stock

23

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

1
Out of stock

24

. BULB (12V5W)

8V0-85353-00-00

1
Out of stock

25

BUZZER

87L-83383-00-00

1
Out of stock

26

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

27

PILOT LIGHT ASSY

88T-83530-01-00

—

$24.43

In stock

28

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

29

RESISTOR, VARIABLE

8CR-87283-00-00

1
Out of stock

30

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

1
Out of stock
