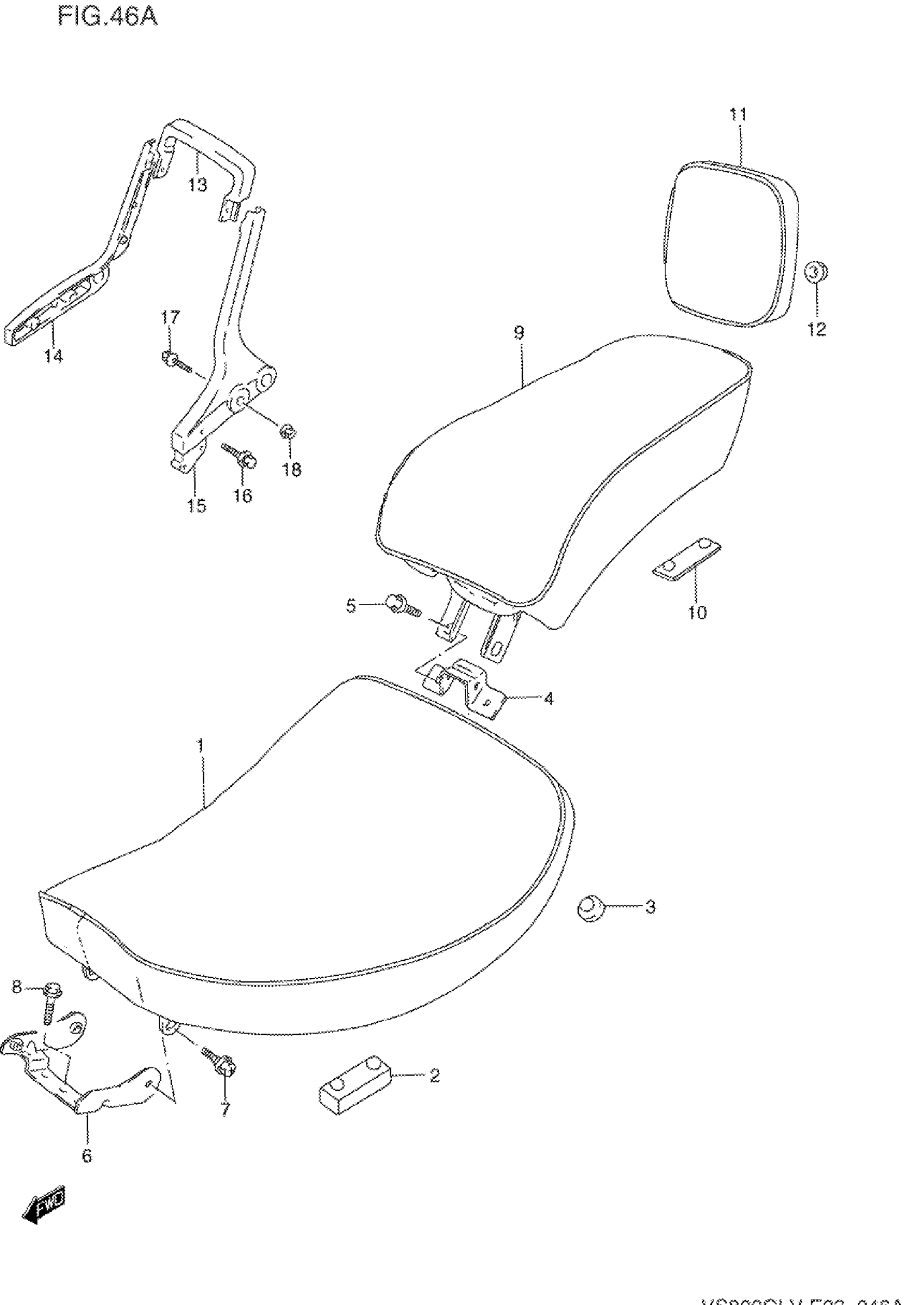

Find the part on the Seat diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki VS800GLV Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT SET | Includes Item(s) 2 - 3

45100-38A60-E7T

1
Out of stock

2

CUSHION

45149-43500

2
Out of stock

3

CUSHION

09321-10012

2
Out of stock

4

PLATE, SEAT HOOK REAR

45119-38A00

1
Out of stock

5

BOLT

09111-06066

2

$2.85

In stock

6

BRACKET, SEAT FRONT

45210-38A03

1
Out of stock

7

BOLT

09111-06066

2

$2.85

In stock

8

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

9

SEAT SET, PILLION | Includes Item(s) 10

45300-38A60-E7T

1
Out of stock

10

CUSHION

45149-14500

2
Out of stock

11

PAD ASSY, SEAT | Includes Item(s) 12

45350-38A60-E7T

1
Out of stock

12

CUSHION This part replaces 09320-09026.

09320-09062

3
Out of stock

13

HANDLE, PILLION RIDER UPPER

46211-38B01

1
Out of stock

14

HANDLE,PILLION This part replaces 46212-38A21.

46212-38A50

1
Out of stock

14

HANDLE, PILLION RIDER RH | CALIFORNIA ONLY

46212-38A31

1
Out of stock

15

HANDLE, PILLION RIDER LH

46213-38A21

1
Out of stock

15

HANDLE, PILLION RIDER LH | CALIFORNIA ONLY

46213-38A31

1
Out of stock

16

BOLT This part replaces 01580-06353.

01580-0635B

2
Out of stock

17

BOLT, CENTER This part replaces 01580-08453.

01580-0845B

2
Out of stock

18

NUT This part replaces 08316-10083.

08316-1008B

2
Out of stock
