1997 Suzuki VS800GLV Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

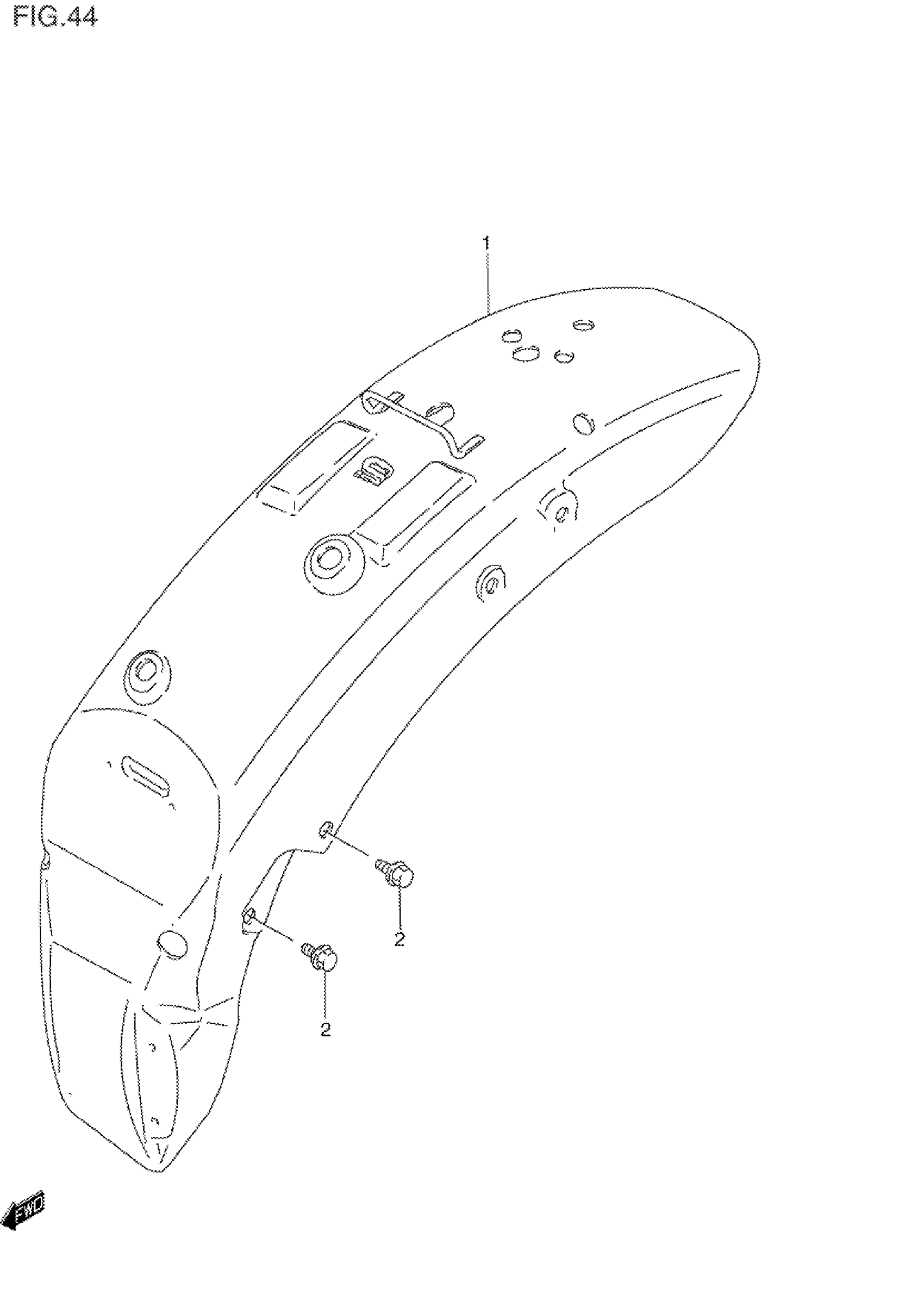

1997 Suzuki VS800GLV Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (BLUE) | MODEL N

63110-38A00-03F

1
Out of stock

1

FENDER, REAR (RED) | MODEL N/P/R/T

63110-38A00-19A

1
Out of stock

1

FENDER, REAR (BLACK) | MODEL P This part replaces 63110-38A00-0CG.

63110-38A00-33J

1
Out of stock

1

FENDER, REAR (BLACK) | MODEL R/S/V

63110-38A00-33J

1
Out of stock

1

FENDER, REAR (MAROON) | MODEL S/T

63110-38A00-20F

1
Out of stock

1

FENDER, REAR (GREEN) | MODEL S

63110-38A00-1ZV

1
Out of stock

1

FENDER, REAR (BLUE) | MODEL NCALIFORNIA ONLY

63110-38A20-03F

1
Out of stock

1

FENDER, REAR (RED) | MODEL N/P/R/VCALIFORNIA ONLY

63110-38A20-19A

1
Out of stock

1

FENDER, REAR (BLUE) | MODEL PCALIFORNIA ONLY

63110-38A20-0CG

1
Out of stock

1

FENDER, REAR (BLACK) | MODEL R/S/VCALIFORNIA ONLY

63110-38A20-33J

1
Out of stock

1

FENDER, REAR (MAROON) | MODEL S/TCALIFORNIA ONLY

63110-38A20-20F

1
Out of stock

1

FENDER, REAR (GREEN) | MODEL TCALIFORNIA ONLY

63110-38A20-1ZV

1
Out of stock

2

BOLT | MODEL N/P This part replaces 01550-06103.

01550-0610A

4
Out of stock

2

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

4
Out of stock

2

BOLT | MODEL S/T/VMODEL N/PCALIFORNIA ONLY This part replaces 01550-06103.

01550-0610A

4
Out of stock

2

BOLT, CLAMP | MODEL RCALIFORNIA ONLY This part replaces 01550-06123.

01550-0612A

2
Out of stock

2

BOLT, REAR | MODEL N/PCALIFORNIA ONLY

01517-06166

2
Out of stock

2

BOLT | MODEL RCALIFORNIA ONLY This part replaces 01550-06163.

01550-0616A

2
Out of stock

2

BOLT | MODEL S/T/VCALIFORNIA ONLY This part replaces 01550-06103.

01550-0610A

2
Out of stock

2

BOLT, CLAMP | MODEL S/T/VCALIFORNIA ONLY This part replaces 01550-06123.

01550-0612A

2
Out of stock
