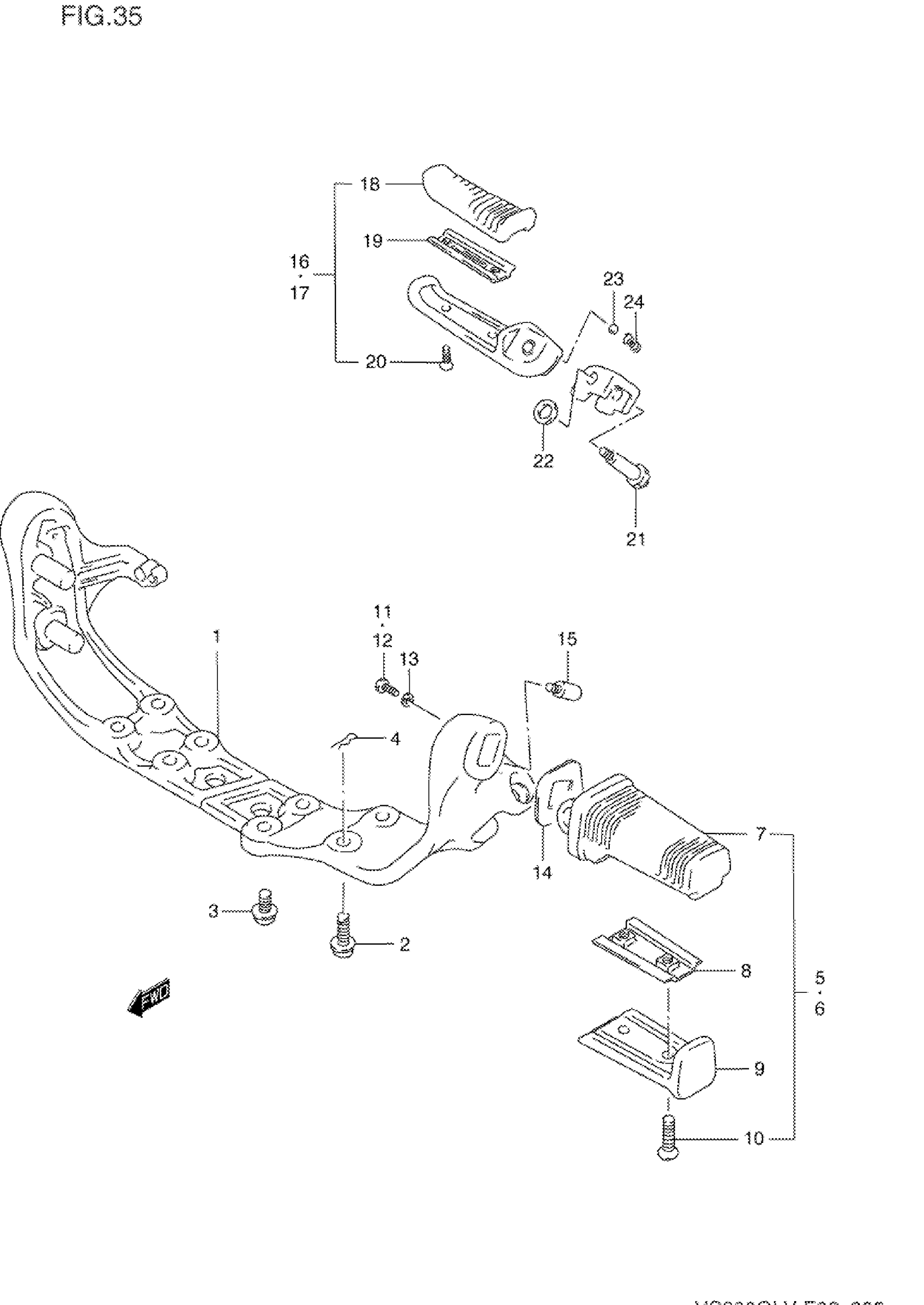

Suzuki VS800GLV (1997) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST | MODEL N/P/R/S This part replaces 43510-38A42.

43510-38E01

Unavailable

1

BRACKET, FRONT FOOTREST | MODEL T This part replaces 43510-38E00.

43510-38E01

Unavailable

1

BRACKET, FRONT FOOTREST | MODEL V

43510-38E01

Unavailable

2

BOLT, OUTER

09106-08064

$3.00

3

BOLT | MODEL N/P/R This part replaces 07120-08208.

07120-0820A

$2.88

3

BOLT | MODEL S/T/V This part replaces 07120-08203.

07120-0820A

$2.88

4

PIN

09385-08005

$2.01

5

FOOTREST ASSY, FRONT RH | MODEL N/P/R/S This part replaces 43501-38B10.

43501-38B11

$169.60

5

FOOTREST ASSY, FRONT RH | MODEL T/V

43501-38B11

$169.60

6

FOOTREST ASSY, FRONT LH | MODEL N/P/R/S This part replaces 43502-38B10.

43502-38B11

$141.20

6

FOOTREST ASSY, FRONT LH | MODEL T/V; Includes Item(s) 7 - 10

43502-38B11

$141.20

7

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

8

PLATE, FOOTREST

43580-38B10

$14.18

9

COVER, FRONT FOOTREST | MODEL N/P/R/S This part replaces 43585-38B10.

43585-38B11

Unavailable

9

COVER | MODEL T/V

43585-38B11

Unavailable

10

SCREW

09127-05018

Unavailable

11

BOLT, RUBBER STOP | MODEL N/P/R

01500-05127

$2.65

11

BOLT | MODEL S This part replaces 01570-05123.

01570-0512B

$2.75

12

SCREW | MODEL T/V This part replaces 02112-35123.

02112-3512A

$2.43

13

LOCK WASHER | MODEL N/P/R This part replaces 08321-01057.

08321-0105A

$1.83

14

WASHER, FRONT FOOTREST | MODEL N/P/R This part replaces 43546-38B00.

43546-38B01

$7.07

14

WASHER, FRONT FOOTREST | MODEL S/T/V

43546-38B01

$7.07

15

BOLT This part replaces 43641-38B00.

09106-06101

$3.10

16

FOOTREST ASSY, PILLION RH

43600-38A01

Unavailable

17

FOOTREST ASSY,P | Includes Item(s) 18 - 20 This part replaces 43700-38A01.

43700-38A02

Unavailable

18

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

19

PLATE, RUBBER STOPPER

43632-38A00

$8.32

20

SCREW

09127-05017

$3.00

21

BOLT

09111-06050

$5.00

22

SHIM

08221-08164

$2.35

23

BALL

06111-07004

$1.22

24

SPRING

09440-05031

$1.45
